Uponor Smatrix Wave User Manual

GPI
OUT
IN
Warning!
Electrical installation and service behind
secured 230 V AC covers must be carried
out under the supervision of a qualified
electrician.
Caution!
If more than one controller is available in
the system, use the input on the master
controller.
1. Study the wiring diagram in the end of the manual,
or inside the cover of the controller, to locate the
connector positions.
2. Ensure that the power is disconnected from both
the controller and the heating/cooling relay.
3. Remove the screw and open the cover for the
optional connections compartment.
4. Route the cable to/from the heating/cooling input
via a cable entry.
5. Connect the cable to/from the heating/cooling
input to the connection labelled GPI or IN (if a
heat pump is connected, Wave PLUS only) on the
controller.
Wave PLUS with interface only:
6. Go to menu Heating/cooling in the interface and
select Cooling available.
7. Enter the submenu Operating mode to the
settings menu to Heating/cooling and select H/C
Slave.
Heating/cooling switch is now installed and activated.
To connect a heating/cooling input to a public
thermostat:

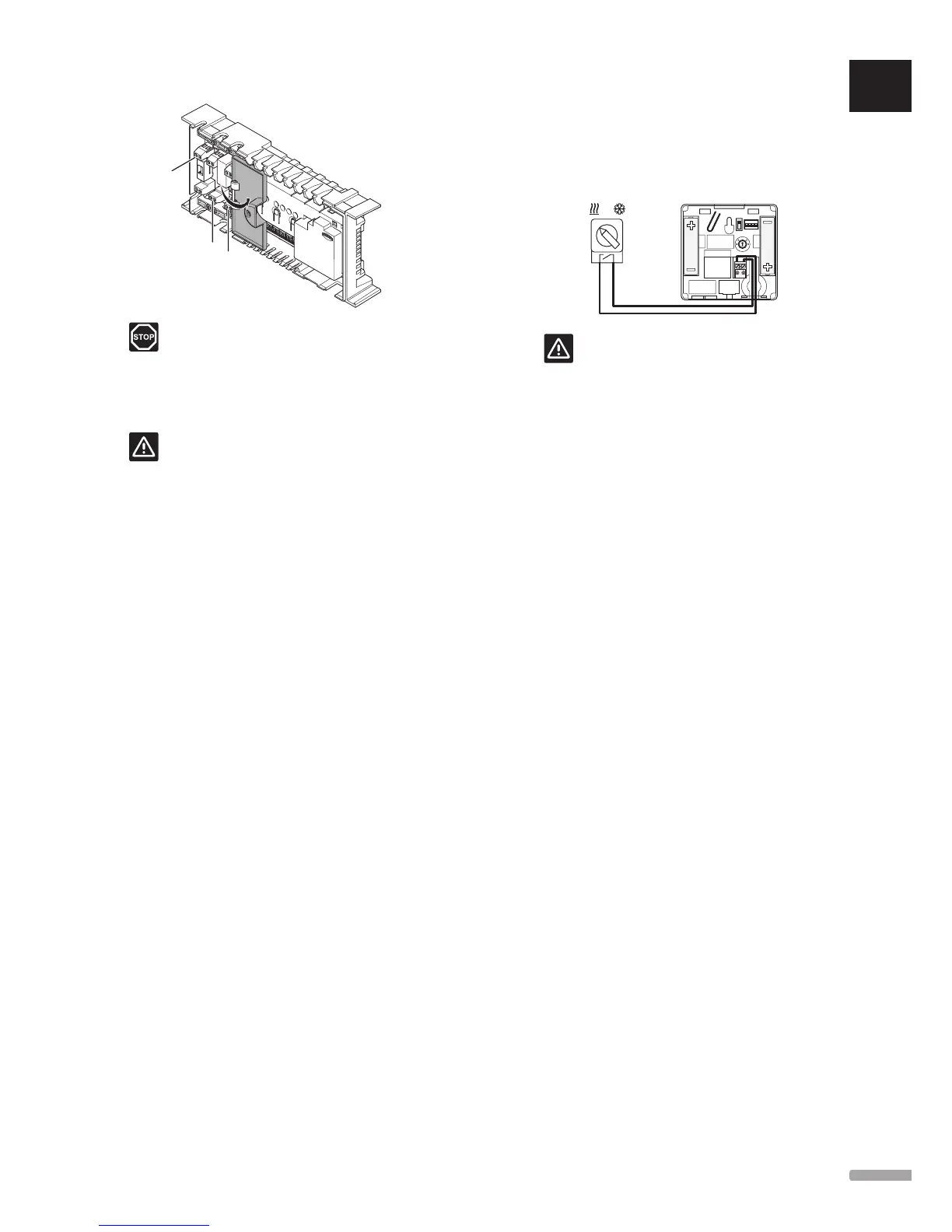

The illustration below shows components of the
heating/cooling system connected to a public
thermostat T-163.
20
5
35
1 2 3 4
ON DIP
Caution!
If more than one controller is available in the
system, register the thermostat as a system
device to the master controller.
1. Ensure that the power is disconnected from both
the thermostat and the heating/cooling relay.
2. Connect the cable to/from the heating/cooling
input to the input terminal on the thermostat.
3. Set the DIP switch to 1 = Off, 2 = Off, 3 = On,
4 = On. See section 6.4 Connect external sensor
to thermostat > Uponor Smatrix Wave Thermostat
Public T-163 for more information.
4. Register the thermostat to the controller as a
Heating/cooling switch from contact, system
device channel 4. See section 6.10 Register system
devices for more information.
Wave PLUS with interface only:
5. Go to menu Heating/cooling in the interface and
select Cooling available.
6. Enter the submenu Operating mode to the
settings menu to Heating/cooling and select H/C
Slave.
Heating/cooling switch is now installed and activated.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
27
UPONOR SMATRIX WAVE/WAVE PLUS · INSTALLATION AND OPERATION MANUAL
