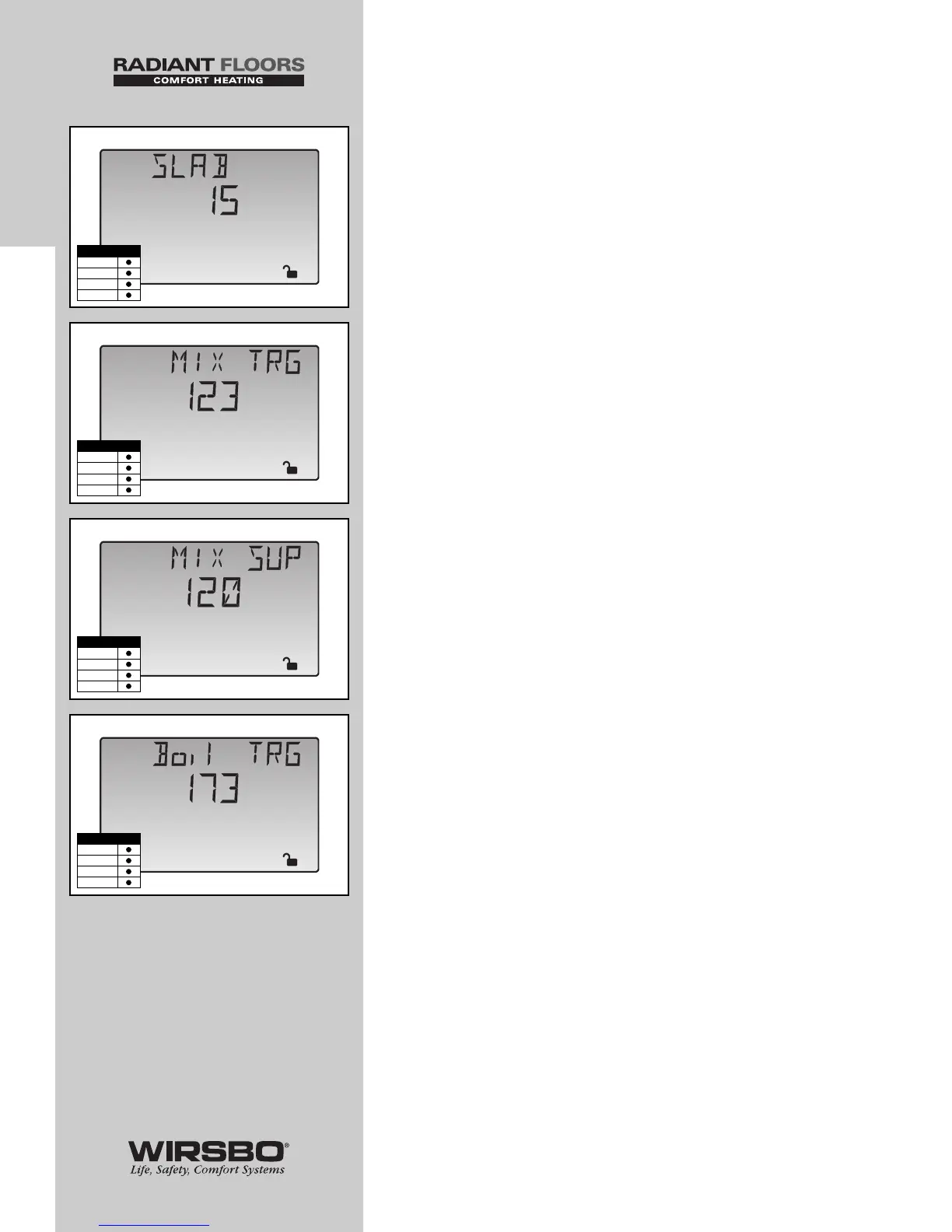

SLAB (See fig. d)
Actual slab temperature as read by the slab sensor S7 (MIX 10K)
NOTE: This screen will be available in the View
Menu only when the Slab (SLAB) sensor is selected
under the MIX 10K screen in the ADJUST Menu.
MIX TRG (See fig. e)
The targeted mixed supply water temperature the control has
calculated in order to meet current conditions
MIX SUP (See fig. f)
Shows actual mix supply water temperature to the system at
mix supply sensor S1 location
Boil TRG (See fig. g)
The targeted boiler supply temperature the control has
calculated in order to meet the current conditions
8
INTRODUCTION
INTRODUCTION - Viewing the Status of the System Performance
