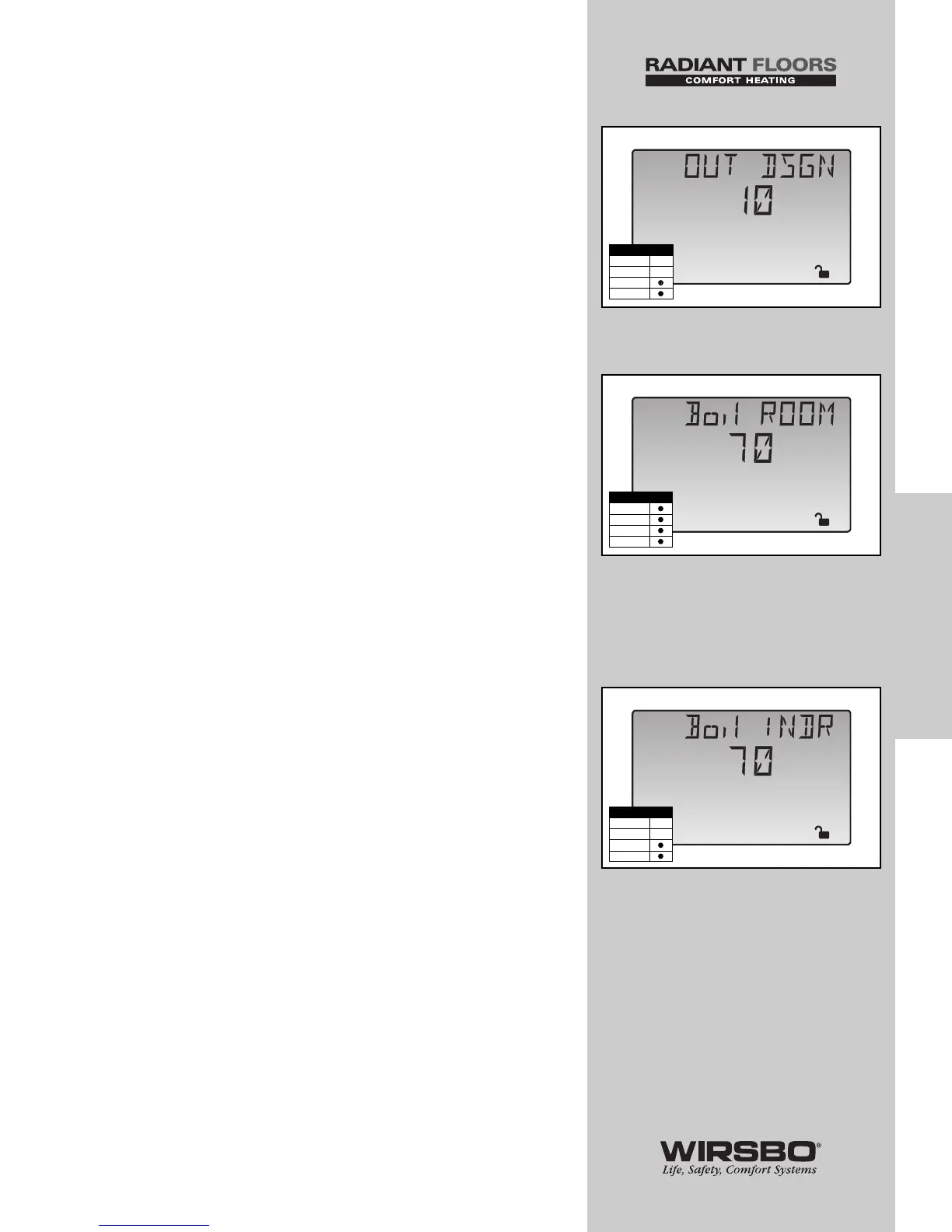

OUTDOOR DESIGN (OUT DSGN) (See fig. a)
1) Go to OUT DSGN item field in Adjust Menu
2) Set to the outdoor design temperature used in the heat-loss
calculation
RANGE: -60 to 50°F (-51 to 10°C)
DEFAULT: 10°F (-12°C)
BOILER ROOM (Boil ROOM) (See fig. b)
1) Go to Boil ROOM item field in Adjust Menu
2) Set to the desired room temperature for the boiler/high
temp zones
RANGE: 35 to 100°F (2 to 38°C)
DEFAULT: 70°F (21°C)
NOTE: There is only a ±3°F (±1°C)
adjustment in the LTD Access Level.
BOILER INDOOR (Boil INDR) (See fig. c)
1) Go to Boil INDR item field in Adjust Menu
2) Set to the room temperature used in original building heat-
loss calculations of the building
RANGE: 35 to 100°F (2 to 38°C)
DEFAULT: 70°F (21°C)
39
PROGRAMMING
PROGRAMMING - Step 1 - Programming the Control
