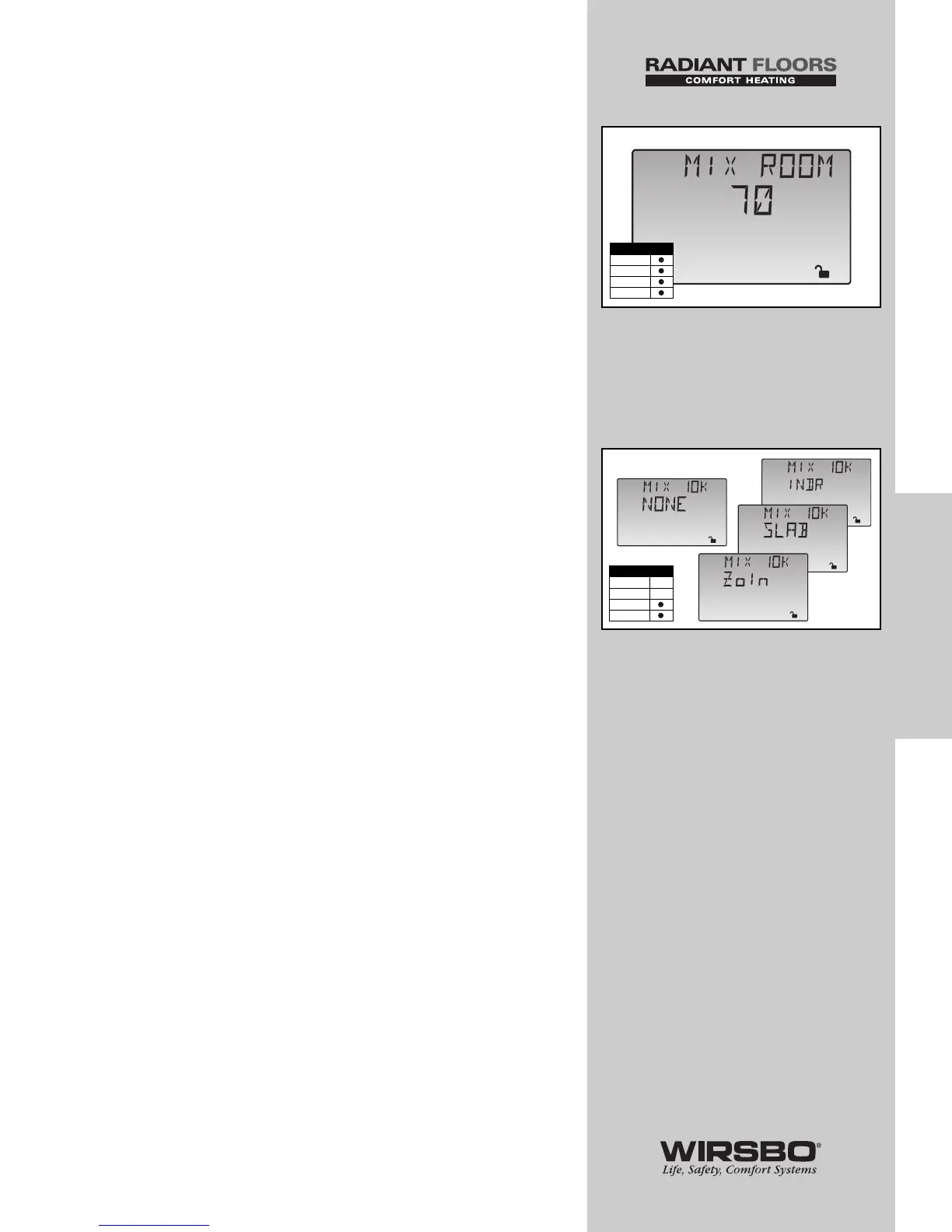

MIXING ROOM (MIX ROOM) (See fig. l)
1) Go to MIX ROOM item field in Adjust Menu
2) Set to the desired room temperature for mixing zones
NOTE: There is only a ±3°F (±1°C)
adjustment in the LTD Access Level.
DIP SETTING: Mixing Reset
RANGE: 35 to 100°F (2 to 38°C)
DEFAULT: 70°F (21°C)
NOTE: Used to shift the reset ratio parallel for
temporarily higher/lower room temperature.
10K INDOOR SENSOR (MIX 10K ) (See fig. m)
1) Go to MIX 10K item field in Adjust Menu
2) To add an indoor sensor for temperature control of a single
zone mixing system, set to INDR
3) To add indoor temperature feedback control from a tekmar
zone control, set to ZoIn
4) To add a slab sensor for temperature control for snow
melting, set to SLAB
RANGE: NONE, INDR, ZoIn, SLAB (only if MIX MIN = OFF)
DEFAULT: NONE
45
PROGRAMMING
PROGRAMMING - Step 1 - Programming the Control
