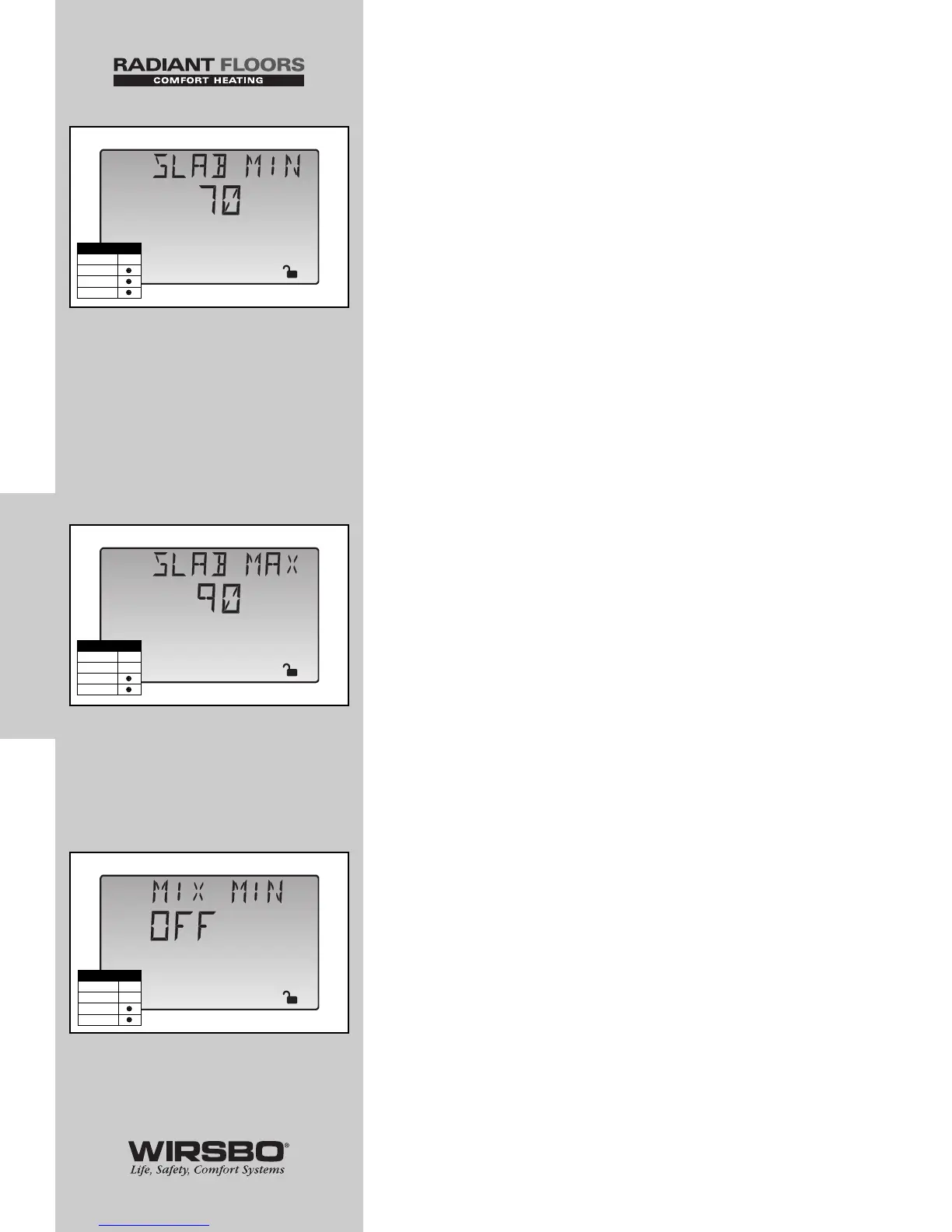

SLAB MINIMUM (SLAB MIN) (See fig. n)
1) Go to MIX 10K item field in Adjust Menu
2) Set MIX 10K to SLAB
3) Go to SLAB MIN item field in Adjust Menu
4) Set the minimum allowed core temperature of slab as long
as the control is not in WWSD
NOTE: Caution should be used when adjusting SLAB
MIN setting as this may lead to overheating of zone
during mild conditions.
RANGE: OFF, 35 to 120°F (OFF, 2 to 49°C)
DEFAULT: 70°F (21°C)
NOTE: The SLAB MIN and the SLAB MAX screens
are only available if SLAB is selected in the MIX 10K
screen
SLAB MAXIMUM (SLAB MAX) (See fig. o)
1) Go to MIX 10K item field in Adjust Menu
2) Set MIX 10K to SLAB
3) Go to SLAB MAX item field in Adjust Menu
4) Set the maximum allowed core temperature of slab
NOTE: If slab is to be maintained at a fixed core
temperature, set SLAB MAX and SLAB MIN items to
the same setting.
RANGE: 40 to 150°F (4 to 66°C)
DEFAULT: 90°F (32°C)
MIXING MINIMUM (MIX MIN) (See fig. p)
1) Go to MIX MIN item field in Adjust Menu
2) Set to the lowest temperature control is allowed to use as
MIX TRG temperature
DIP SETTING: Mixing Reset
RANGE: OFF, 35 to 150°F (OFF, 2 to 66°C)
DEFAULT: OFF
46
PROGRAMMING
PROGRAMMING - Step 1 - Programming the Control
