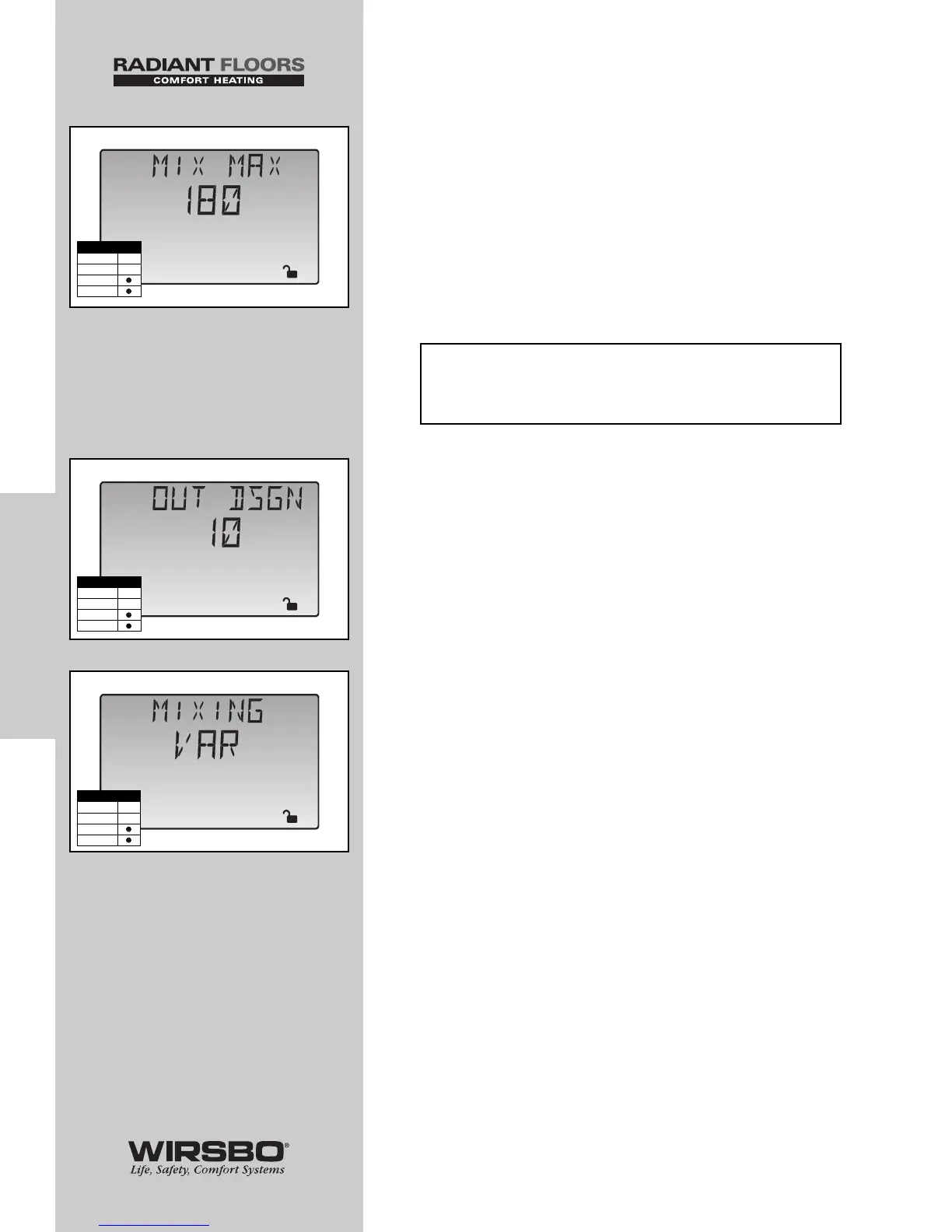

MIXING MAXIMUM (MIX MAX) (See fig. s)
1) Go to MIX MAX item field in Adjust Menu
2) Set to highest water temperature the control is allowed to
use as MIX TRG temperature
RANGE: 80 to 210°F, OFF (27 to 99°C, OFF)
DEFAULT: 180°F (82°C)
NOTE: Do not exceed the water temperatures
shown for the following construction methods.
OUTDOOR DESIGN (OUT DSGN) (See fig. t)
1) Go to OUT DSGN item field in Adjust Menu
2) Set to the outdoor design temperature used in the heat-loss
calculation
RANGE: -60 to 50°F (-51 to 10°C)
DEFAULT: 10°F (-12°C)
MIXING DEVICE SELECTION (MIXING) (See fig. u)
1) Go to MIXING item field in Adjust Menu
2) Set the type of mixing device used (floating action mixing
valve “FLOT” or variable speed injection pump “VAR”)
RANGE: FLOT (Floating), VAR (Variable Speed)
DEFAULT: VAR
