3-10 C ONTROLS
P LATFORM C ONTROLS
The Proportional Controller can be disassembled to replace defective switches. See the Parts Manual for
replacement part numbers.

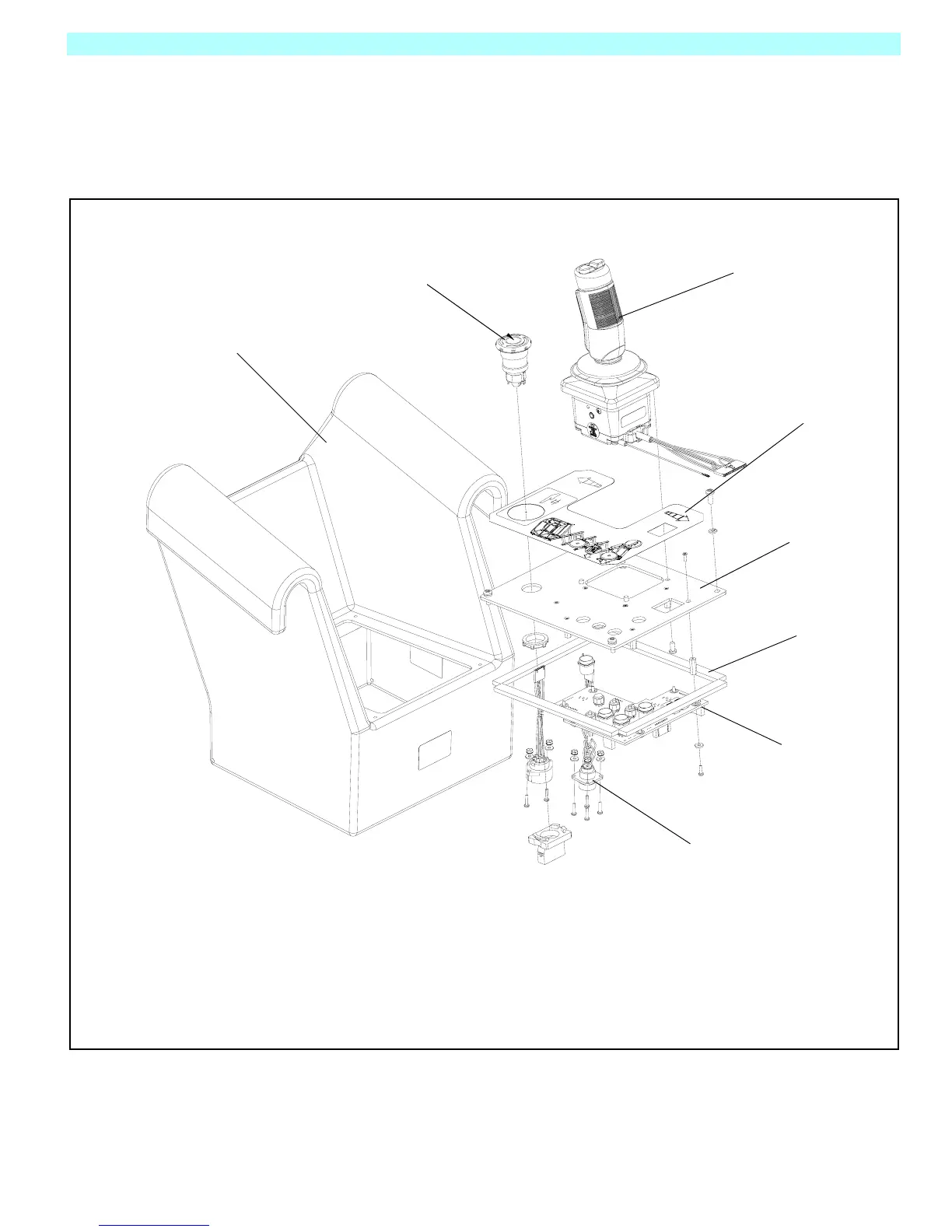

Figure 3-14: Upper Controls
.
1. Control Box
2. Emergency Stop
3. Joystick
4. Decal
5. Mounting Plate
6. Box Seal
7. Circuit Board
8. Socket, Main Harness
1
2
3
4
5
6
7
8
