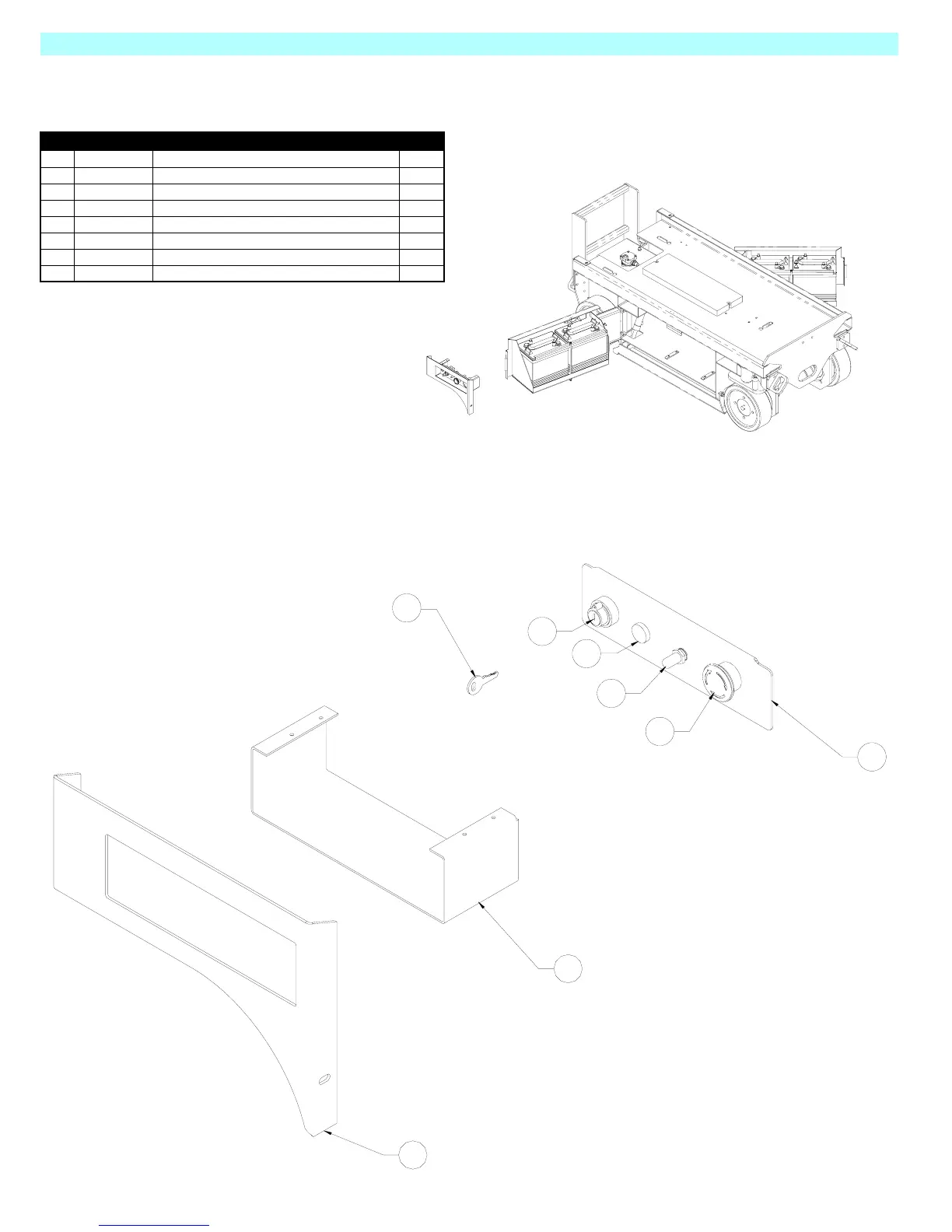

Illustrated Parts Breakdown - Lower Controls Assembly
MX19
Lower Controls Assembly
Item Part Description QTY.
1 503609-001 WHEEL COVER PLATE 1
2 503611-000 CONTROL BOX 1
3 503612-000 CONTROL PANEL 1
4 502544-000 KEY 1
5 502589-000 KEY SWITCH & MOUNT 1
6 502520-000 ENABLE BUTTON 1
7 502251-000 TOGGLE SWITCH 1
8 501867-000 EMERGENCY STOP BUTTON 1
1
2
4
5
6
7
8
3
