Illustrated Parts Breakdown - Hydraulic Cylinder Assembly (Steer)
MX19

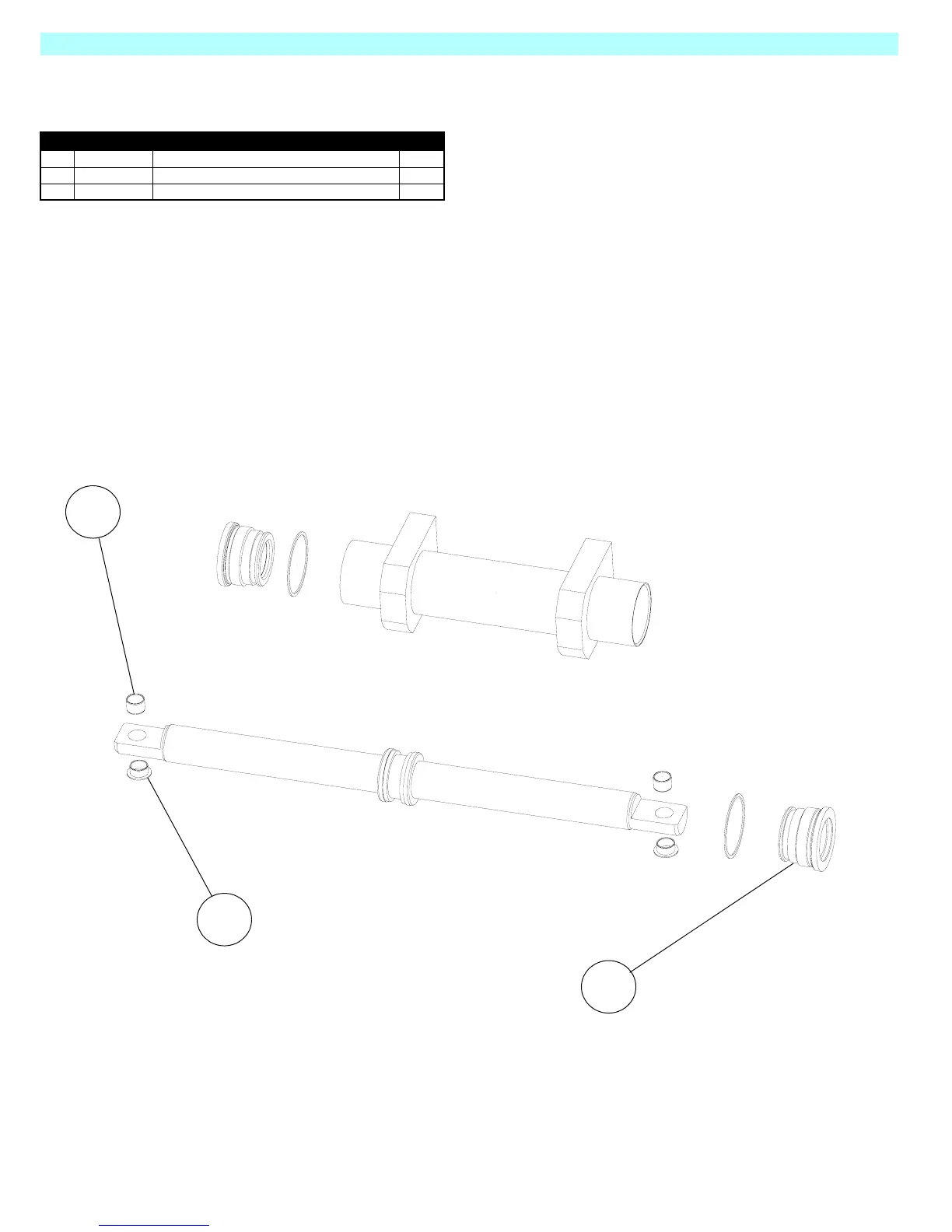

Hydraulic Cylinder Assembly (Steer)
503687-000
Item Part Description QTY.
1 503687-010 SEAL KIT 1
2 501439-000 BUSHING, PLAIN 2
3 501340-000 BUSHING, FLANGED 2
1
2
3
