Upright MX19 - Schematics

Page 6-19

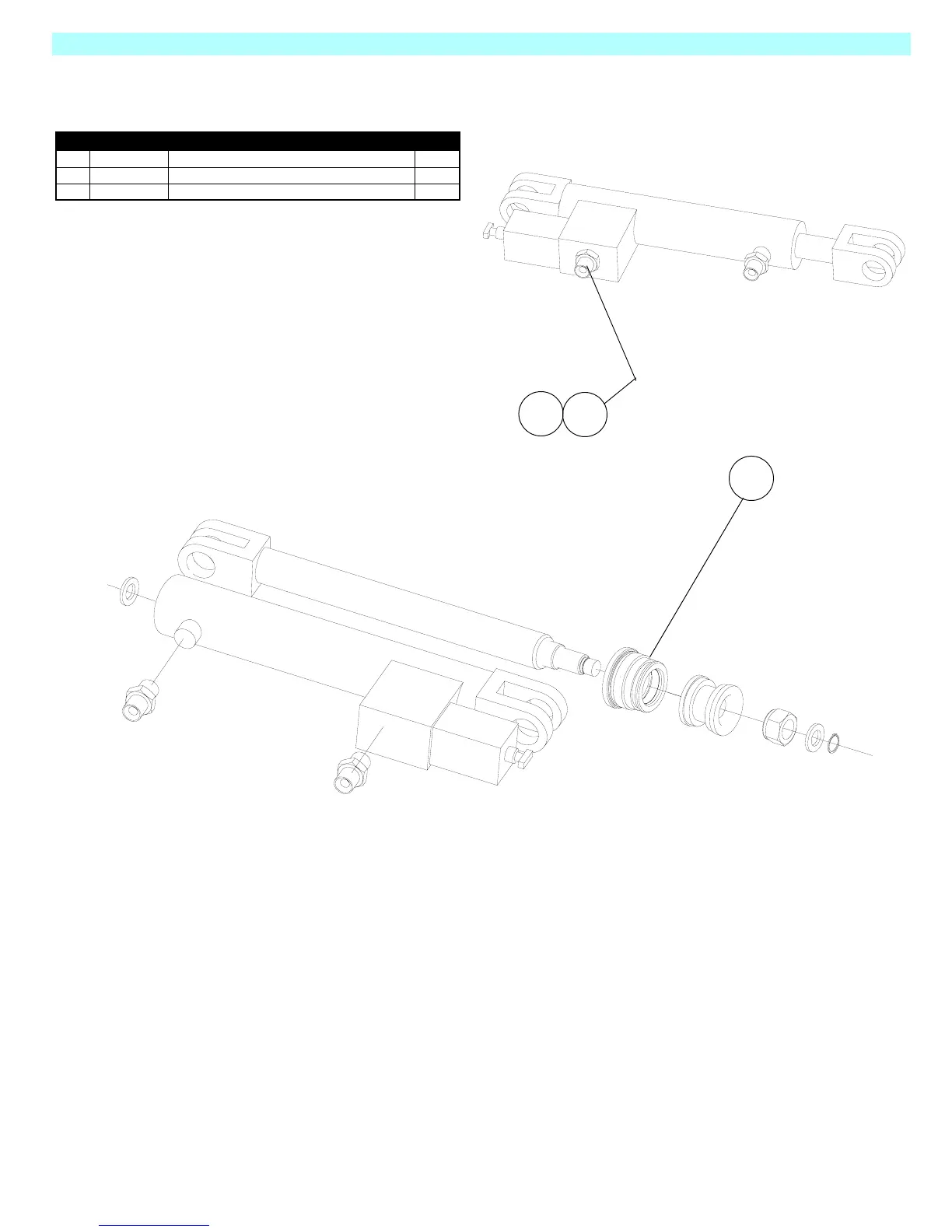

Illustrated Parts Breakdown - Hydraulic Cylinder Assembly (Pothole)
MX19
Hydraulic Cylinder Assembly (Pothole)
503622-000
Item Part Description QTY.
1 503622-010 SEAL KIT 1
2 503784-000 FITTING (1/8” - 1/8” M/M) 2
3 503783-000 BONDED SEAL (1/8”) 2
1
2
3
