Upright MX19 - Hydraulic Assembly

Page 6-15

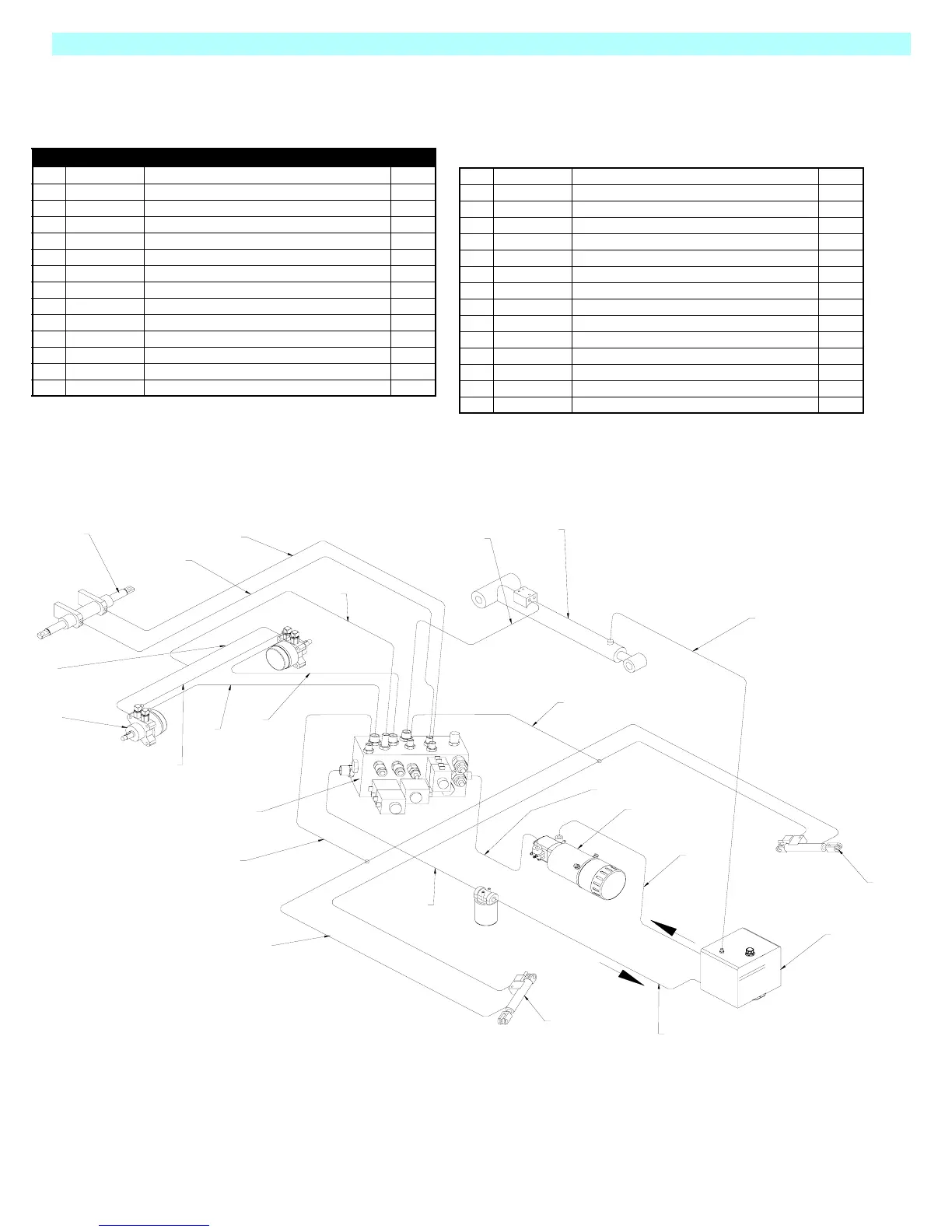

Illustrated Parts Breakdown - Hydraulic Assembly
MX19
25
LH
2
3
10
9
9
11
12
RH
24
18
6
21
17
4
13
22
1
23
14
8
5
16
15
7
Hydraulic Assembly
503507-000
Item Part Description QTY.
1 503800-001 HYDRAULIC MANIFOLD 1
2 503687-000 HYDRAULIC CYLINDER (STEERING) 1
3 503678-000 DRIVE MOTOR 2
4 504536-000 PUMP MOTOR 1
5 503696-000 HYDRAULIC TANK 1
6 503795-000 HYDRAULIC CYLINDER (MAIN LIFT) 1
7 503622-001 HYDRAULIC CYLINDER (POTHOLE) 1
8 503622-000 HYDRAULIC CYLINDER (POTHOLE) 1
9 503693-000 HOSE, MANIFOLD TO STEERING CYLINDER 2
10 503777-000 HOSE, DRIVE MOTOR TO DRIVE MOTOR 1
11 503776-000 HOSE, MANIFOLD TO DRIVE MOTOR 1
12 503775-000 HOSE, MANIFOLD TO DRIVE MOTOR 1
13 503779-000 HOSE, PUMP TO MANIFOLD 1
14 ~ MANIFOLD TO FILTER (RETURN) ~
~ 058170-000 1/2”BSP Female / Female Swept 90 1
~ 503785-000 1/2”BSP Male / Female Swept 90 1
15 503781-000 HOSE, FILTER TO TANK (RETURN) 1
16 503778-000 HOSE, TANK TO PUMP (SUCTION) 1
17 503699-000 HOSE, MAIN LIFT CYLINDR TO TANK (DRAIN) 1
18 503698-000 HOSE, MANIFOLD TO LIFT CYLINDER 1
19 N/A N/A -
20 N/A N/A -
21 503694-000 HOSE, MANIFOLD TO POTHOLE TEE 1
22 503695-000 HOSE, POTHOLE TEE TO MANIFOLD 1
23 503696-000 HOSE, POTHOLE TEE TO POTHOLE CYLINDER 4
24 503691-000 HOSE, MANIFOLD TO BRAKE TEE 1
25 503692-000 HOSE, BRAKE TEE TO DRIVE MOTORS LH & RH 2
26 057107-000 FILTER 1
* 005154-002 FILTER ELEMENT 1
