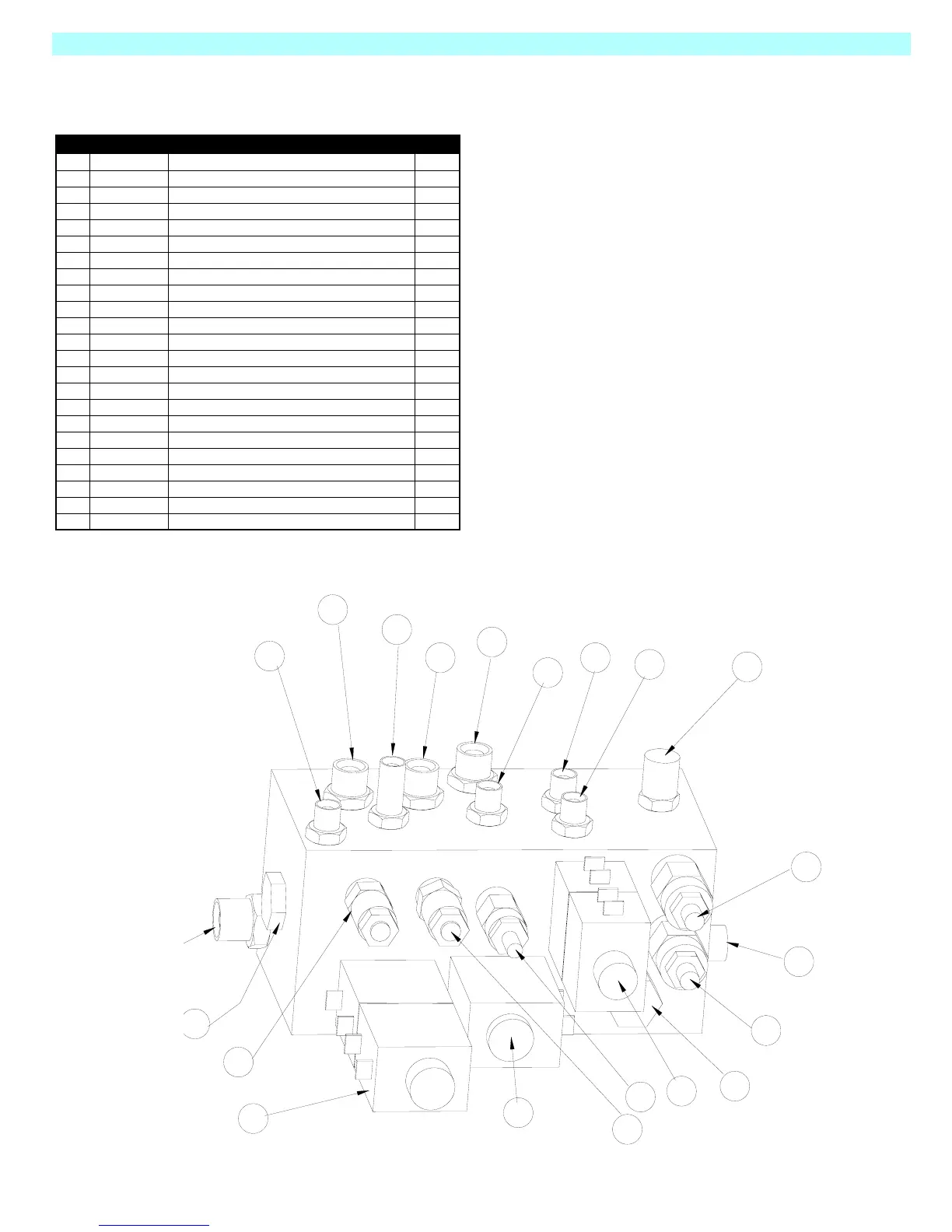

Illustrated Parts Breakdown - Control Valve Assembly
MX19
8
9
12
14
13
2
5
7
6
4
3
15
16
17
1
22
20
21
19
18
Control Valve Assembly
503800-001
Item Part Description QTY.
1 TEST PORT 1
2 058358-000 FITTING, 1/4” - 1/4” MALE/MALE 1
3 058358-000 FITTING, 1/4” - 1/4” MALE/MALE 1
4 058358-000 FITTING, 1/4” - 1/4” MALE/MALE 1
5 057122-000 FITTING, 3/8” - 3/8” MALE/MALE 1
6 057122-000 FITTING, 3/8” - 3/8” MALE/MALE 1
7 503806-000 FITTING, 1/4” - 1/4” MALE/MALE BULKHEAD 1
8 057122-000 FITTING, 3/8” - 3/8” MALE/MALE 1
9 057358-000 FITTING, 1/4” - 1/4” MALE/MALE 1
10 N/A N/A -
11 057377-000 FITTING, 1/2” - 1/2” (MALE/MALE) 1
12 503802-000 CHECK VALVE, POTHOLE 1
13 503803-000 CROSS LINE RELIEF VALVE (DRIVE) 1
14 503804-000 VALVE, SOLENOID (DRIVE) 1
15 503805-000 VALVE, SOLENOID (DRIVE/LIFT) 1
16 503803-000 CROSS LINE RELIEF VALVE (DRIVE) 1
17 503807-000 PRESSURE RELIEF (MAIN LIFT) 1
18 503808-000 VALVE, SOLENOID (STEERING) 1
19 503809-000 FLOW RESTRICTOR (STEERING) 1
20 058728-000 RELIEF VALVE (STEERING) 1
21 057122-000 FITTING, 3/8” - 3/8” MALE/MALE 1
22 503810-000 RELIEF VALVE (MAIN RELIEF) 1
23 500303-000 COIL 18V 6
