Page 14 113100-020 - MX15 / MX19 - Operation Manual
Maintenance
L EVEL S ENSOR

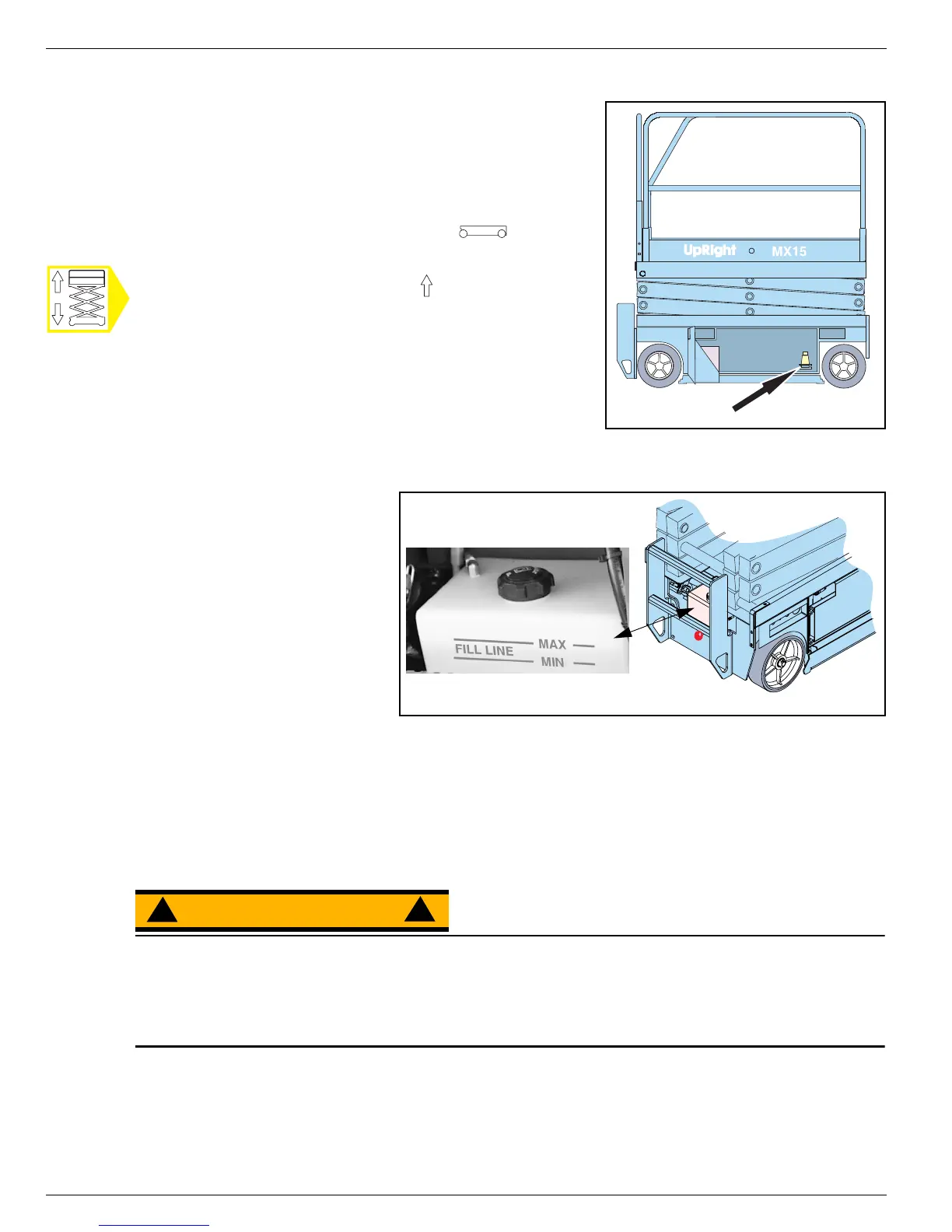

Figure 8:
Level Sensor Location
T
ESTING THE
L
EVEL
S
ENSOR
1. Place machine on firm level surface.
2. Open the door.
3. Push and hold the sensor off of level.
4. Turn and hold the Chassis Key Switch to
5. Push the Chassis Lift Switch to the position.
• The alarm should sound, and the platform should not lift.
6. Close and latch the door.
H YDRAULIC F LUID
Figure 9:
Hydraulic Reservoir
NOTE:
Never add fluid if the platform is
elevated.
Check the level of the hydraulic
fluid with the platform fully low-
ered. The hydraulic reservoir is
located at the rear of the
machine. The fluid level should be
visible through the side of the res-
ervoir, and must be between the
MIN and MAX lines
(see Figure 9). Add hydraulic
fluid if necessary.
B ATTERY M AINTENANCE
WARNING
!
!
Hazard of explosive gas mixture. Keep sparks, flame, and smoking material away from batteries.
Always wear safety glasses when working near batteries.
Battery fluid is highly corrosive. Thoroughly rinse away any spilled fluid with clean water.
Always replace batteries with UpRight batteries or manufacturer approved replacements weighing
26,3 kg (58 lbs.) each.
• Check the battery fluid level daily, especially if the work platform is being used in a warm, dry climate.
• If electrolyte level is lower than 10 mm
(
3
/
8
in.) above the plates add distilled water only. DO NOT use
tap water with high mineral content, as it will shorten battery life.
• Keep the terminals and tops of the batteries clean.
• Refer to the Service Manual to extend battery life and for complete service instructions.
Level Sensor
