1-1
1. I
NTRODUCTION
1.1 I
NTRODUCTION
P
URPOSE
The purpose of this service and parts manual is to provide instructions and illustra-
tions for the operation and maintenance of this work platform manufactured by
UpRight Powered Access.
S
COPE
The manual includes procedures for proper operation, maintenance, adjustment,
and repair of this product as well as recommended maintenance schedules and
troubleshooting.
1.2 G
ENERAL
D
ESCRIPTION
The work platform consists of the platform, controller, elevating assembly, power
module, control module, and chassis.

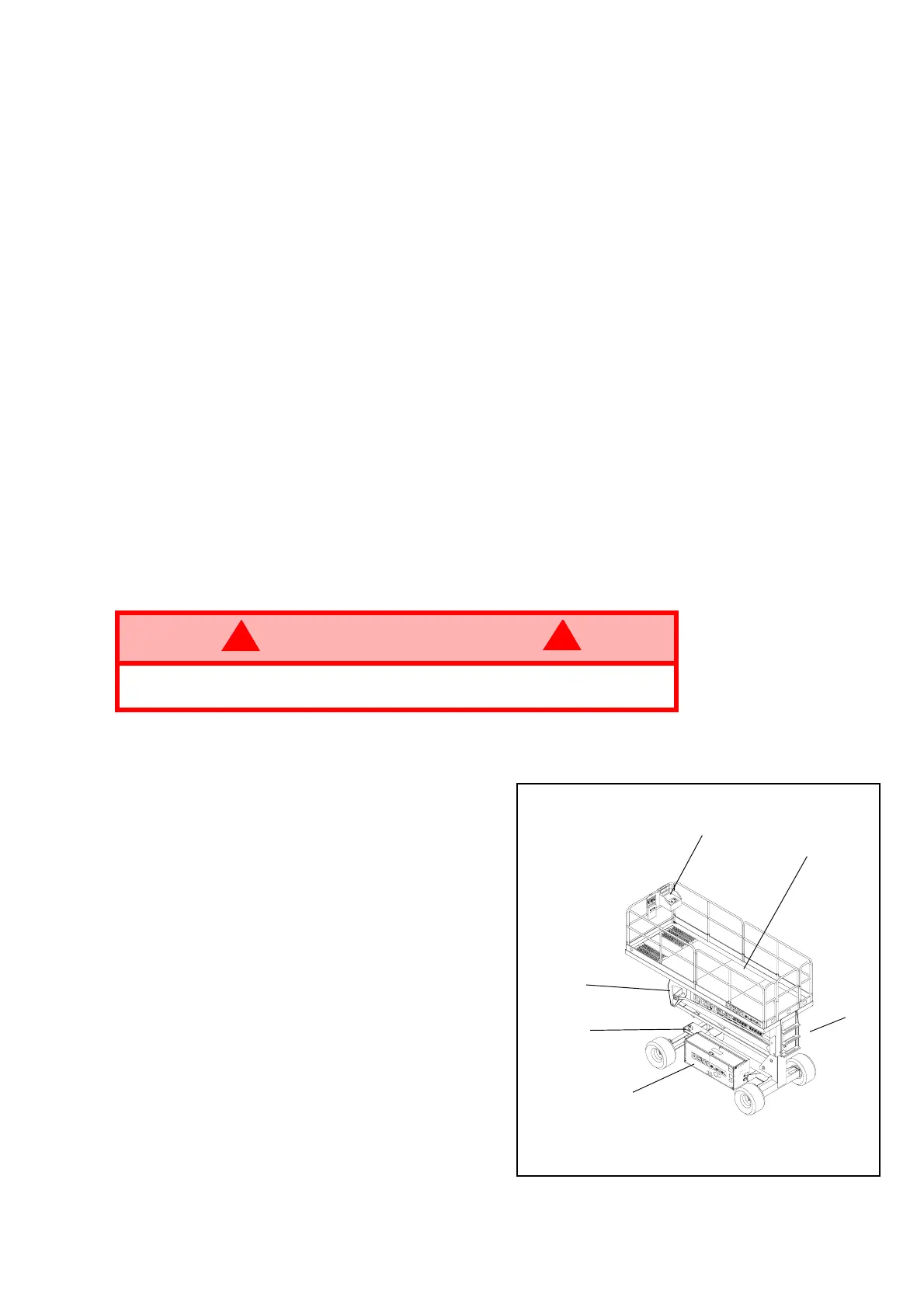

Figure 1: SL26/30SL Work Platform
P
LATFORM
The platform has a reinforced
steel floor, 1.1m (43.5 inch) high
guardrails with midrail, 152 mm (6
inch ) toeboards, and an entry
gate at the rear of the platform.
The guardrails can be folded
down for access through doors or
for shipment.
1. Platform
2. Platform Controller Assembly
3. Elevating Assembly
4. Power Module
5. Control Module
6. Chassis
WARNING
!
!
DO NOT use the work platform without guardrails properly assembled
and in place.
1
3
4
2
5
6
