System description FlowTimer+ Set
01/21 FlowTimer+ Set 14
5.3 FlowTimer+ rear view

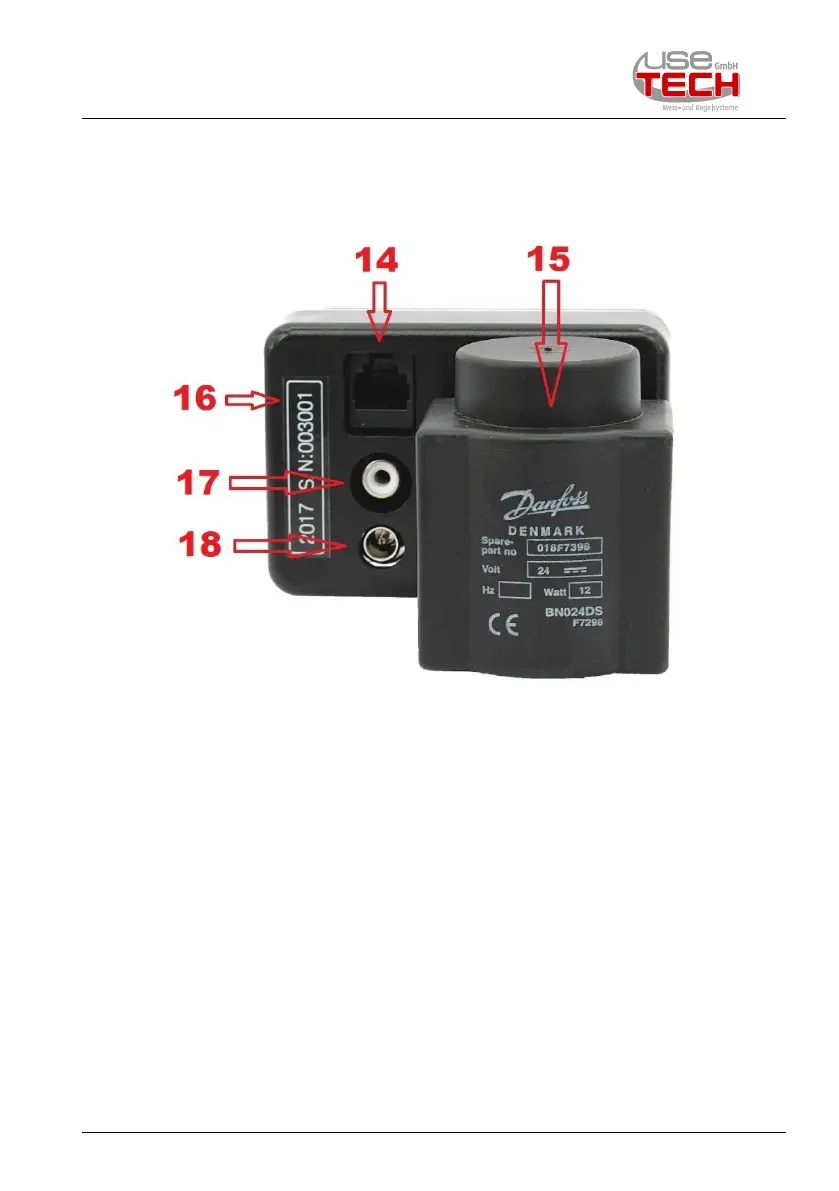

Fig. 5.3: FlowTimer+ rear view
I/O connection
Solenoid coil
Serial number
Pressure sensor connection
Power supply connection
