Installation
01/21 FlowTimer+ Set 16
6.2 Installation position
The FlowTimer+ is always installed upstream of the pipeline
section and consumer to be monitored.
A backflow preventer or KFR valve must be installed upstream
of each FlowTimer+. Normally this valve is already present
behind the water meter.
However, if several FlowTimer+ are used (like fuses), each
FlowTimer+ requires such a valve.

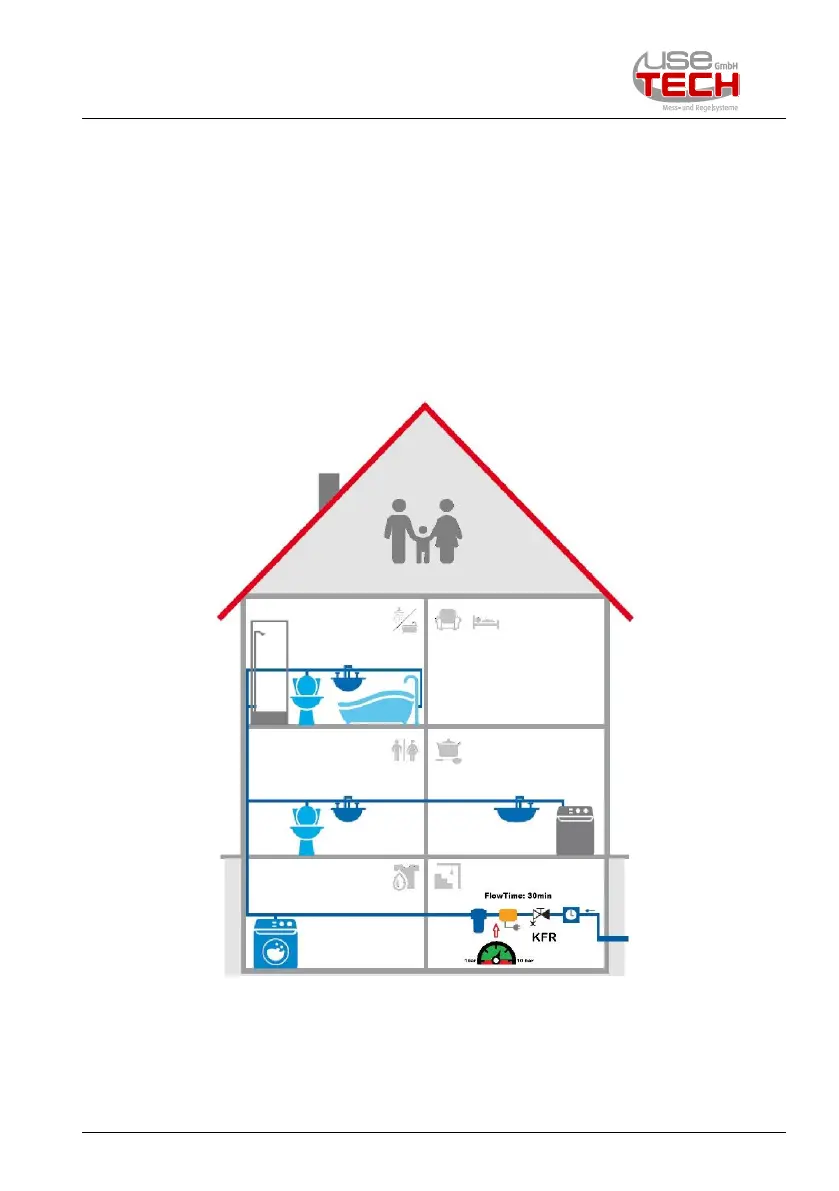

Fig. 6.2.1: FlowTimer+ installation EFH
