Installation
01/21 FlowTimer+ Set 22
6.5 Mounting the FlowTimer+ on the shut-off valve
The FlowTimer+ electronics (6) forms a non-separable unit
with the solenoid coil (15). The warranty will be voided if the
unit is separated by force.
To mount the FlowTimer+ on the shut-off valve, place the solenoid
coil (15) on the armature tube of the valve (7). Then press briefly
and firmly on the top of the solenoid coil (not on the electronics)
until the coil audibly engages in the holder. The coil is now correctly
mounted.

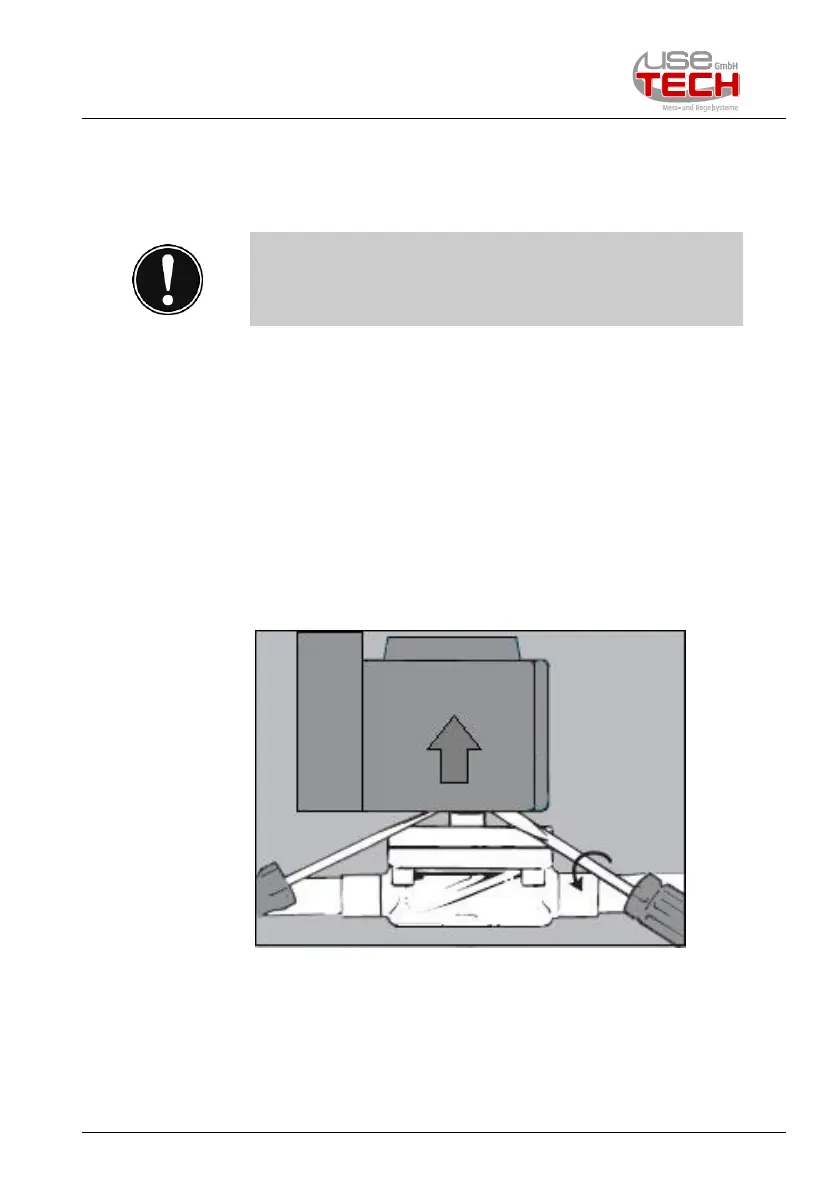

To disassemble, insert one or two screwdrivers between the valve
body (2) and the solenoid coil (15). Then lever the coil away from
the valve body. This requires a little more force than the previous
pressing.
