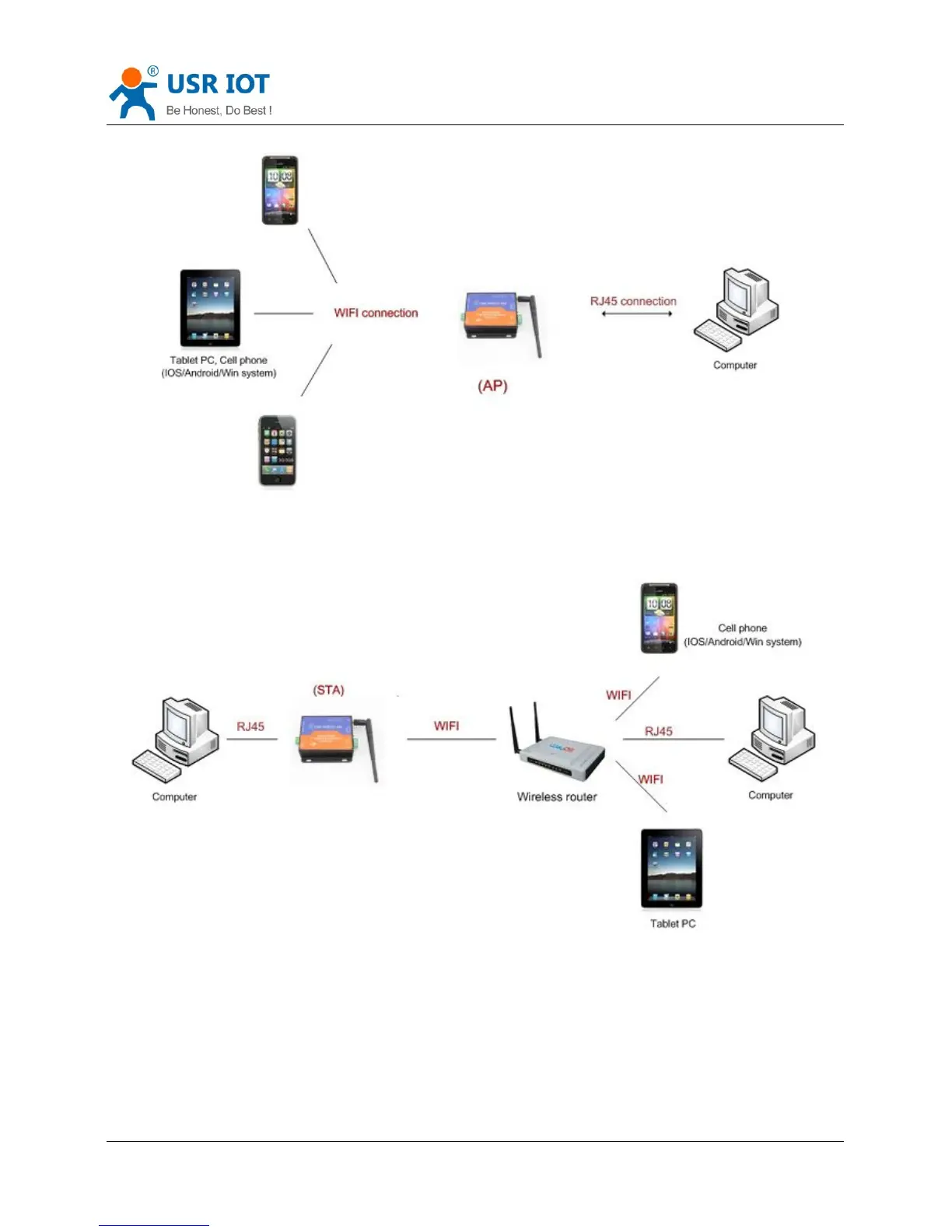

Figure 9 Wired and wireless Application drawing 1
When USR-WIFI232-630 used as AP, other computers and equipments can be used as STA connected to
this device through RJ45(network cable).
Figure 10 Wired and wireless Application drawing 2
When USR-WIFI232-630 used as STA, network port connected to computer via RJ45, wireless added to
wireless router to networking.
