Q2: Where to Set WIFI Convert Server LAN IP and WAN IP through Web
Page
？

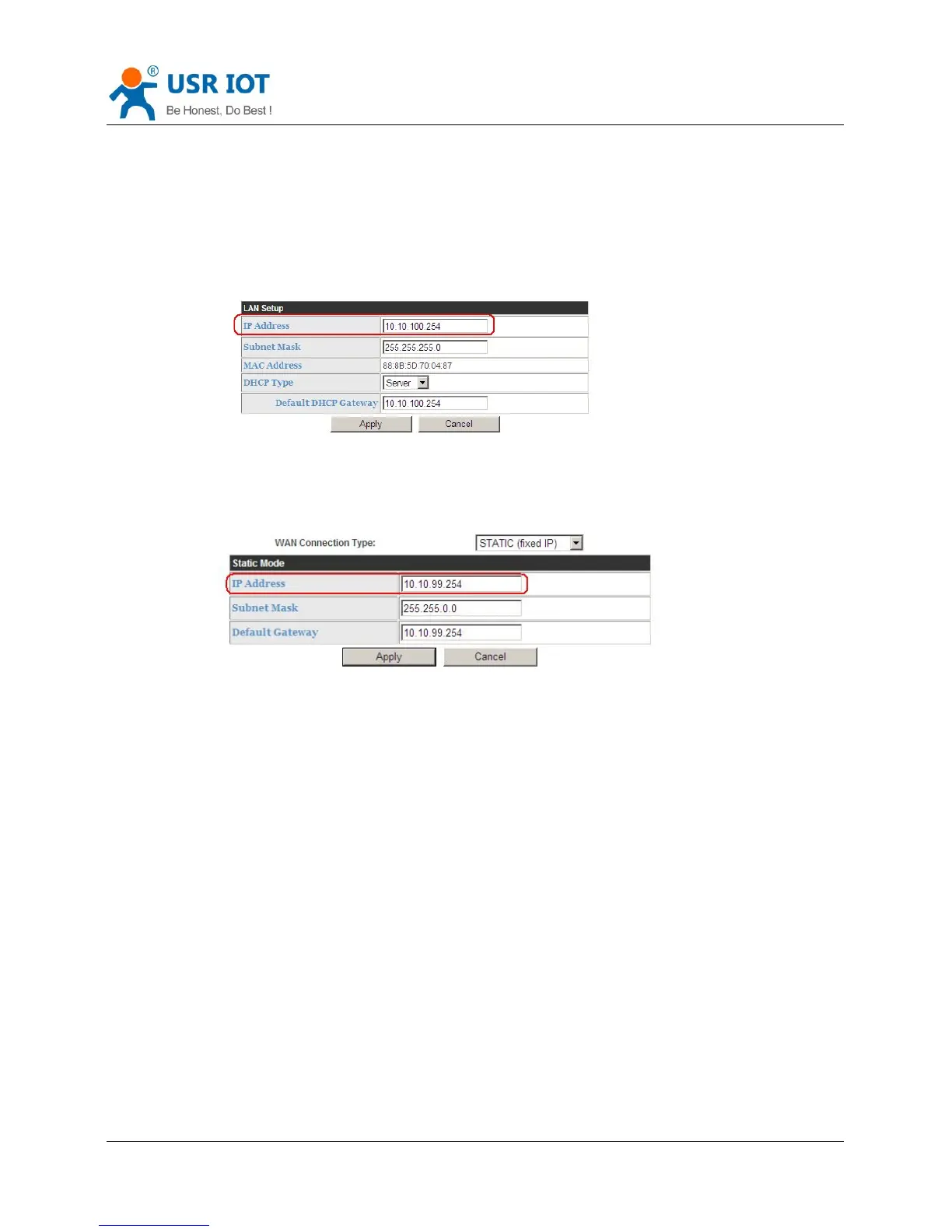

 USR-WIFI232-D2 Wireless LAN IP address setting see “AP Interface Setting Page” as below Figure,
Figure 28 Convert Server LAN IP Setting
 USR-WIFI232-D2 Wireless WAN IP address setting see “STA Interface Setting Page” as below Figure, User
can set WAN connection type to DHCP and STATIC IP.
Figure 29 Convert Server WAN IP Setting
Q3: How to configure transparent serial port application (UDP protocol) with
two Convert Servers?
 Network structure as below figure:

Convert Server 1# Setting:
 Works as AP mode; --See “Mode Selection Page”
 LAN IP address: 10.10.100.254; --See “AP Interface Setting Page”
 Network Protocal:UDP, Port ID: 8899; Application IP address:10.10.100.100;
-- See “Application Setting Page”

Convert Server 2# Setting:
 Works as STA mode; --See “Mode Selection Page”
 WAN connection type: Static IP (10.10.100.100)
--See “STA
