USR IOT USR-WIFI232-630 User Manual

Convert Server User Manual www.usriot.com
Jinan USR IOT Technology Limited 28 / 44 tec@usr.cn

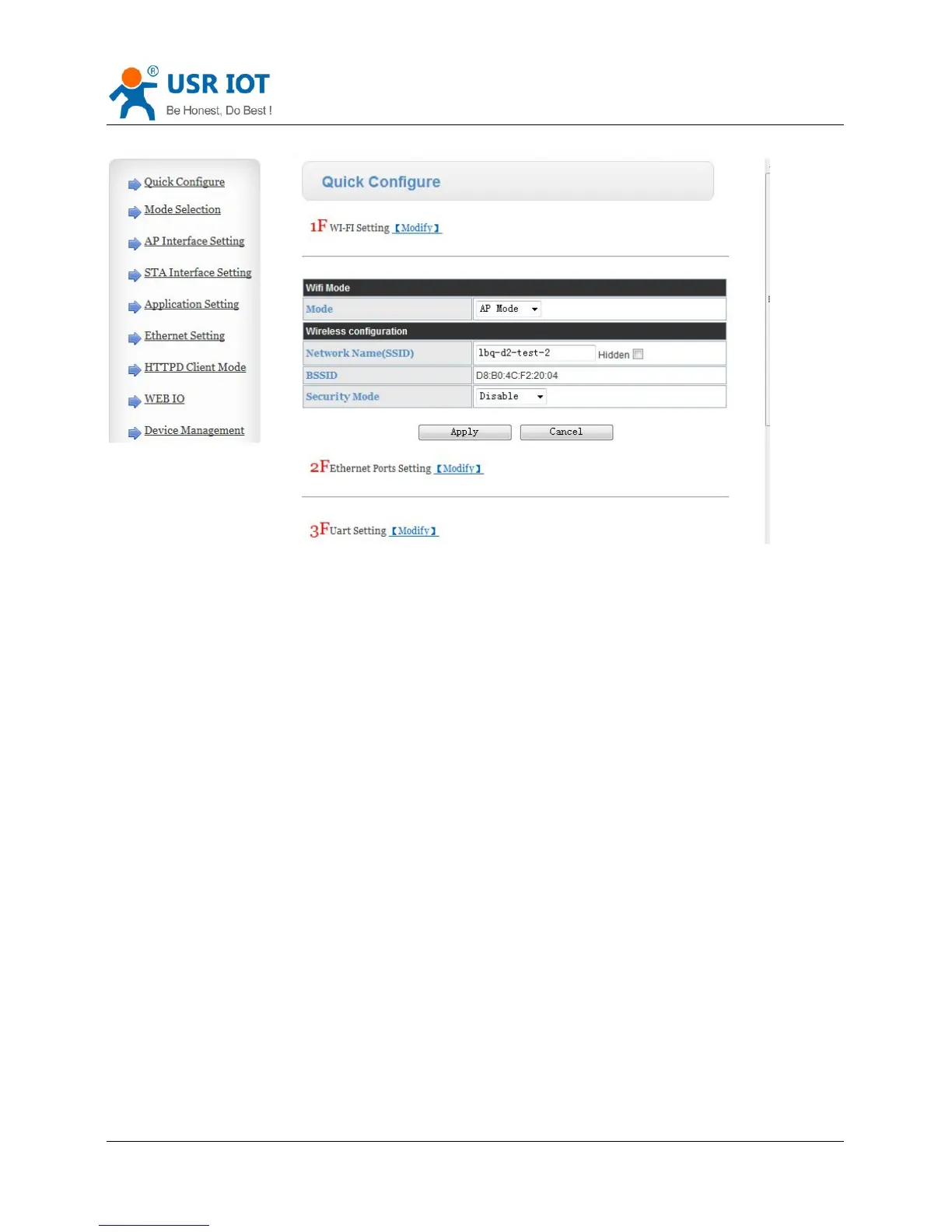

Figure 19 Quick Configure Page
This page has four configuration options and a restart, the corresponding instructions below:

WI-FI Setting: set the working mode of wifi, AP mode or the STA.

Ethernet Ports Setting: open/close the Ethernet ports, and set up the corresponding work mode.

UART Setting: set serial port parameters, including baud rate, parity bit, 485 functions and so on.

Network Setting: set network parameters, Only TCPA related parameters.

Device Management: when after completion of the above parameters are configured, click reset Convert
Server.
6.1.3. Mode Selection Page
This page use to setting the wireless networking mode (AP and STA mode).
"Data transmission mode" selection Convert Server working mode are "Transparent Mode", "Serial Command
mode", "GPIO mode"and””HTTPD-Client Mode”.
