2PS/2PT

1-5-6

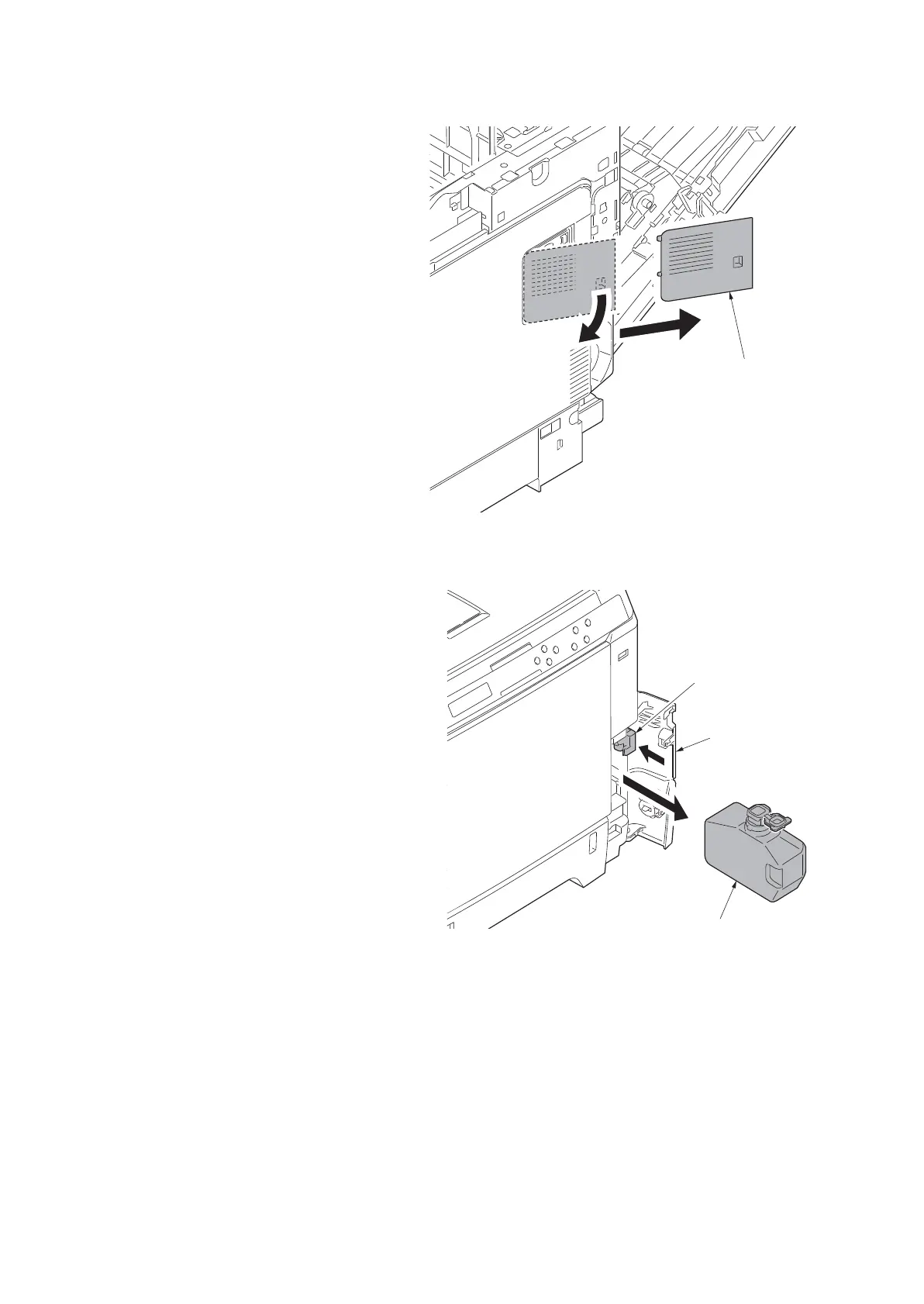

5. Open the memory cover and then

remove it.

Figure 1-5-8

6. Open the waste toner cover.

7. Push the lock release button and then

remove the waste toner box.

Figure 1-5-9

Memory cover

Waste toner box

Waste toner

cover

Lock release button
