vacon • 84 Control Keypad
Tel. +358 (0) 201 2121 • Fax +358 (0)201 212 205

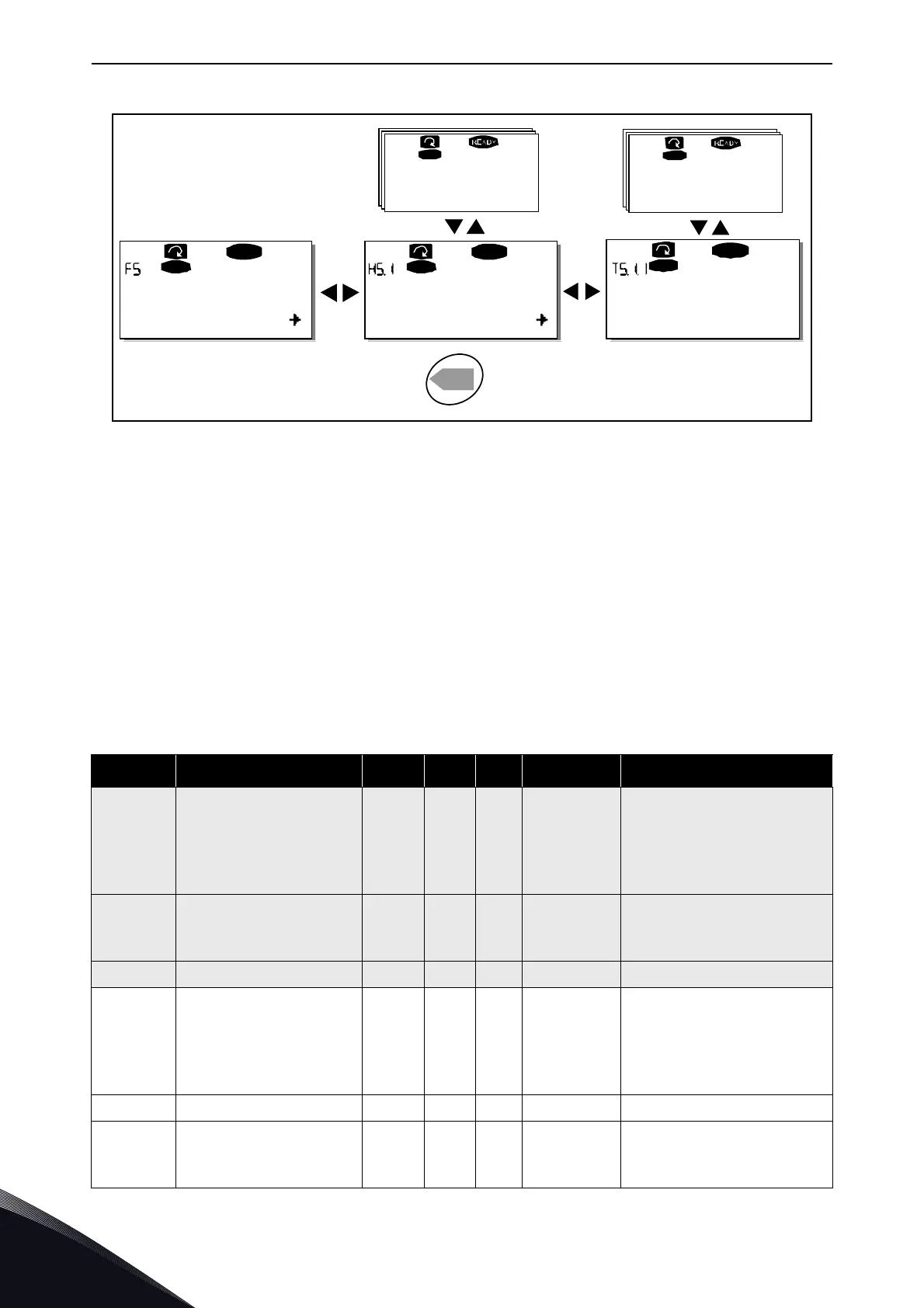

Figure 58. Fault history menu
6.3.8 System menu (M6)
You can enter the
System menu from the Main menu by pressing Menu button right when the
location indication M6 is visible on the first line of the keypad display
.
The controls associated with the general use of the Active Front End, such as application selection,
customised parameter sets or information about the hardware and software are located under the
System menu. The number of submenus and subpages is shown with the symbol S (or P) on the
value line.
The System menu functions are presented in the Table 29.
System menu functions
Table 29. System menu functions
Code Function Min Max Unit Default Selections
S6.1 Selection of language English English
Deutsch
Suomi
Svenska
Italiano
S6.2 Application selection Active Front
End
application
S6.3 Copy parameters
S6.3.1 Parameter sets Load factory defaults
Store set 1
Load set 1
Store set 2
Load set 2
S6.3.2 Load to keypad All parameters
S6.3.3 Load from keypad All parameters
All but motor parameters
Application parameters
H1H3
READ Y
I/Oterm
T1T7
I/Oterm
READ Y
I/Oterm
I/Oterm
READY
13:25:43
I/ O t er m
enter
17
Fault h is tory 11 Output p has e
5ChargeSwitch
Operation days
Operation hours
PU SH to re set
11200.emf
