11. SERVICE INSTRUCTIONS FOR OPTION BOARDS
11.1. Basic tests
11.1.1. Control board interface diagram

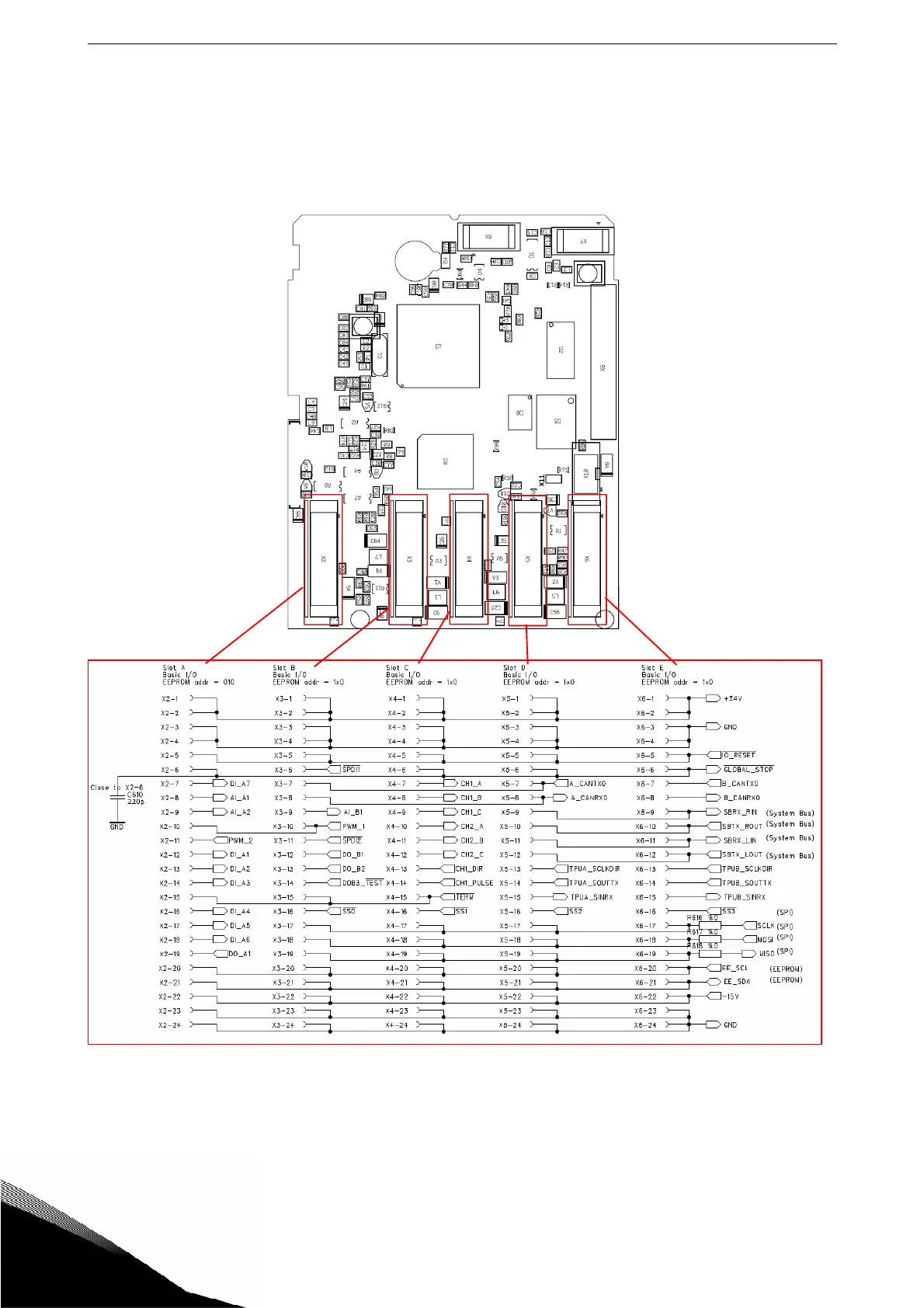

FIGURE 45. Control board measurement points.
