Vacon NX Service Manual

Fault codes and software
email: service@vacon.com Tel: +358 (0)201 212 575 Fax: +358 (0)204 335 091
49
4

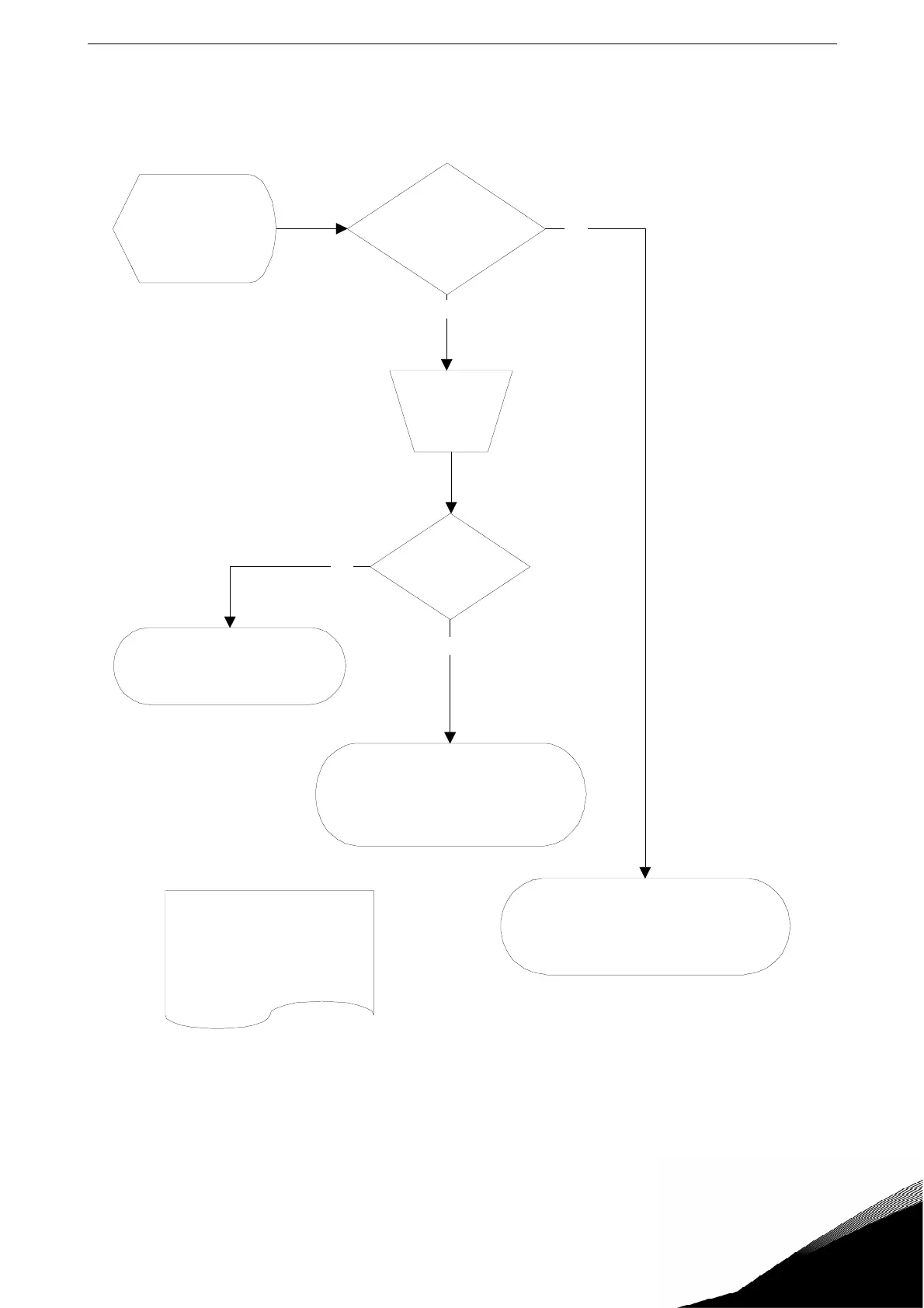

FIGURE 8. Fault code F6
F6 Emergency stop fault
F6 displayed.
Check logged
data in
fault history.
Did F6 occur
several times during
normal operation?
External reason trigged the
fault.Check cable
connections.
NO
Test
control unit.
YES
Inernal interference trigged
the fault. Check
connections between
control board and
I/O-boards.
Did it pass the
test?
YES
NOTE!
Fault is trigged from pin 6 in
each I/O slot. Signal not
used in standard I/O boards.
Replace control board.
Load software and also
parameter settings.
NO
