Vacon NX Service Manual

Fault codes and software
email: service@vacon.com Tel: +358 (0)201 212 575 Fax: +358 (0)204 335 091
85
4

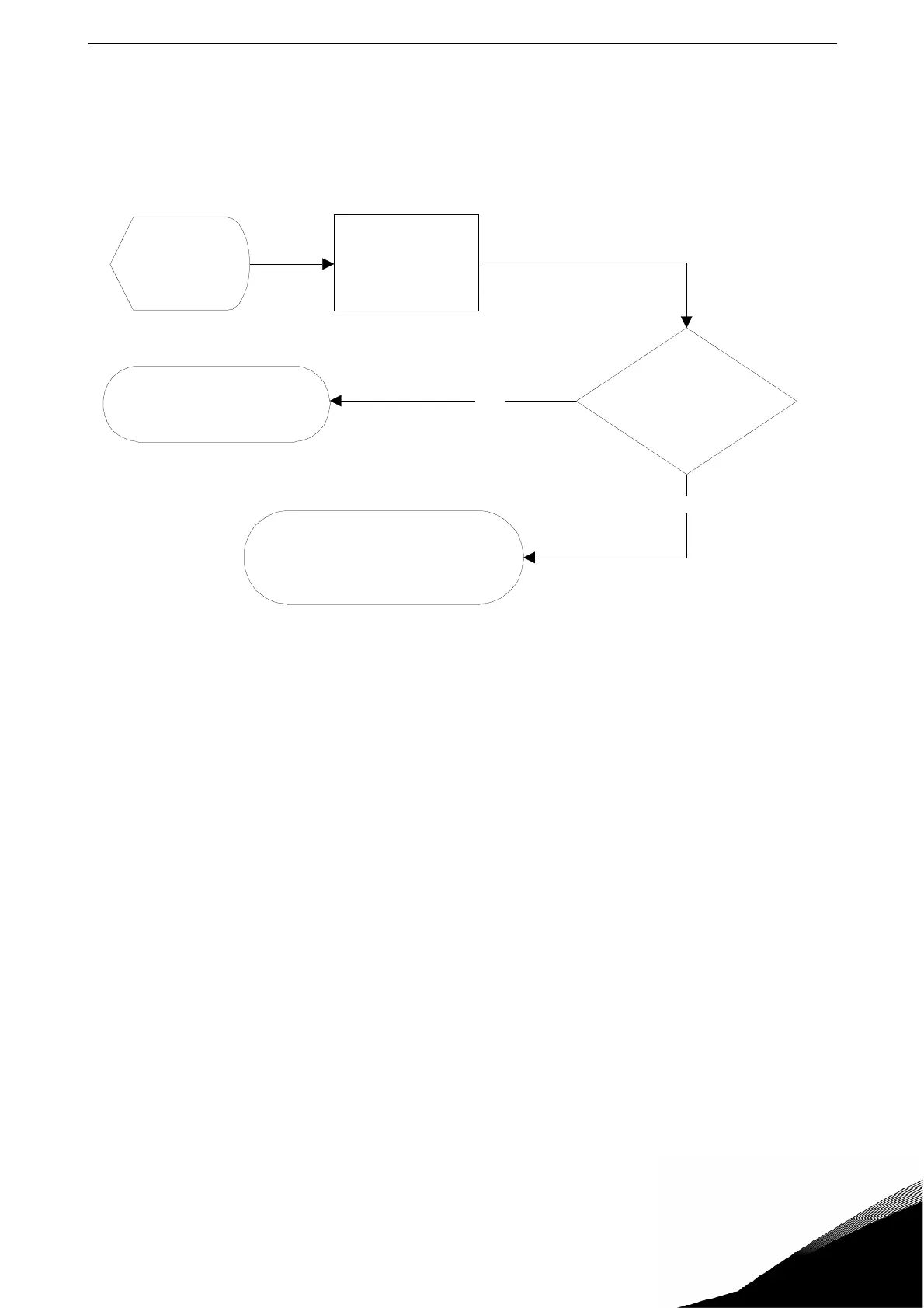

FIGURE 44. Fault code F56
F56 PT-100 fault
F56 displayed.
Check data in
fault history.
Hardware fault on
option board
Source is outside limits for a
reason. Correct the external
cause.
Temperature limit
have exeeded the
board parameters.
Check PT-100
temperature.
Temperature
within
limits?
NO
YES

Vacon NX Specifications

General

Product Type	AC Drive
Control Method	Scalar Control
Enclosure	IP00, IP21
Communication	Ethernet
Safety	STO (Safe Torque Off)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Ambient Temperature Range	-10°C to +50°C (with derating above +40°C)
Cooling Method	Air-cooled, Liquid-cooled
