Vacon nxp/c User Manual

6
vacon • 40 CABLING AND CONNECTIONS
Tel. +358 (0) 201 2121 • Fax +358 (0)201 212 205

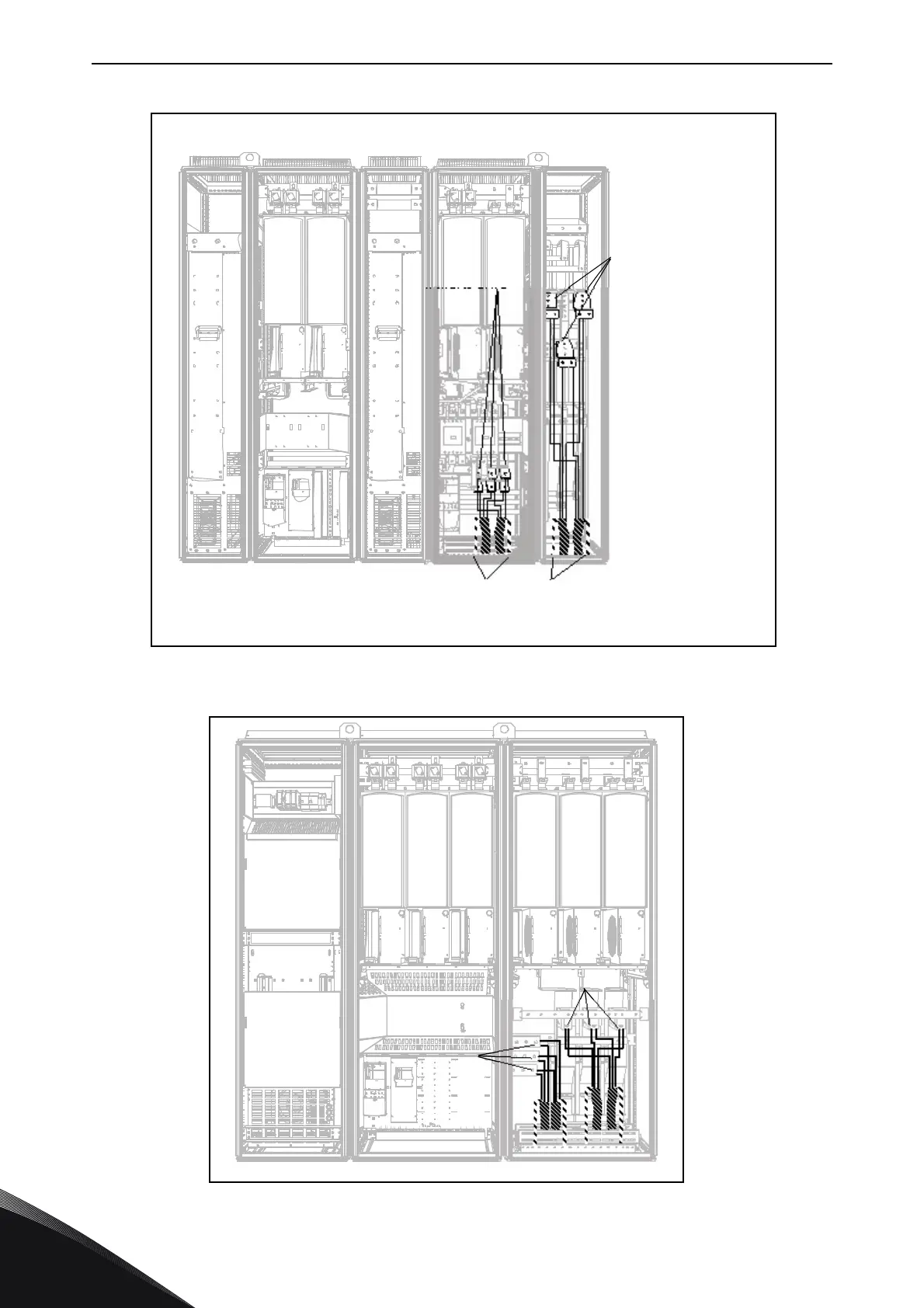

Figure 19. Routing of power cables, bottom cabling, frame AF12 +ODU (optional)
Figure 20. Routing of power cables, bottom cabling, frame AF13
Connect the PE conductor
to the PE bar
Connect
motor cables
to terminals
U, V and W on
converter
Connect mains cables to
terminals L1, L2 and L3
on AC drive
7019.emf
Connect motor cables to
terminals U, V and W on
converter
Connect mainscablesto
terminals L1, L2 and L3
(behind the plexi glass)
on the converter
11499_uk
