CABLING AND CONNECTIONS vacon • 41
24-hour support +358 (0)201 212 575 • Email: vacon@vacon.com
6

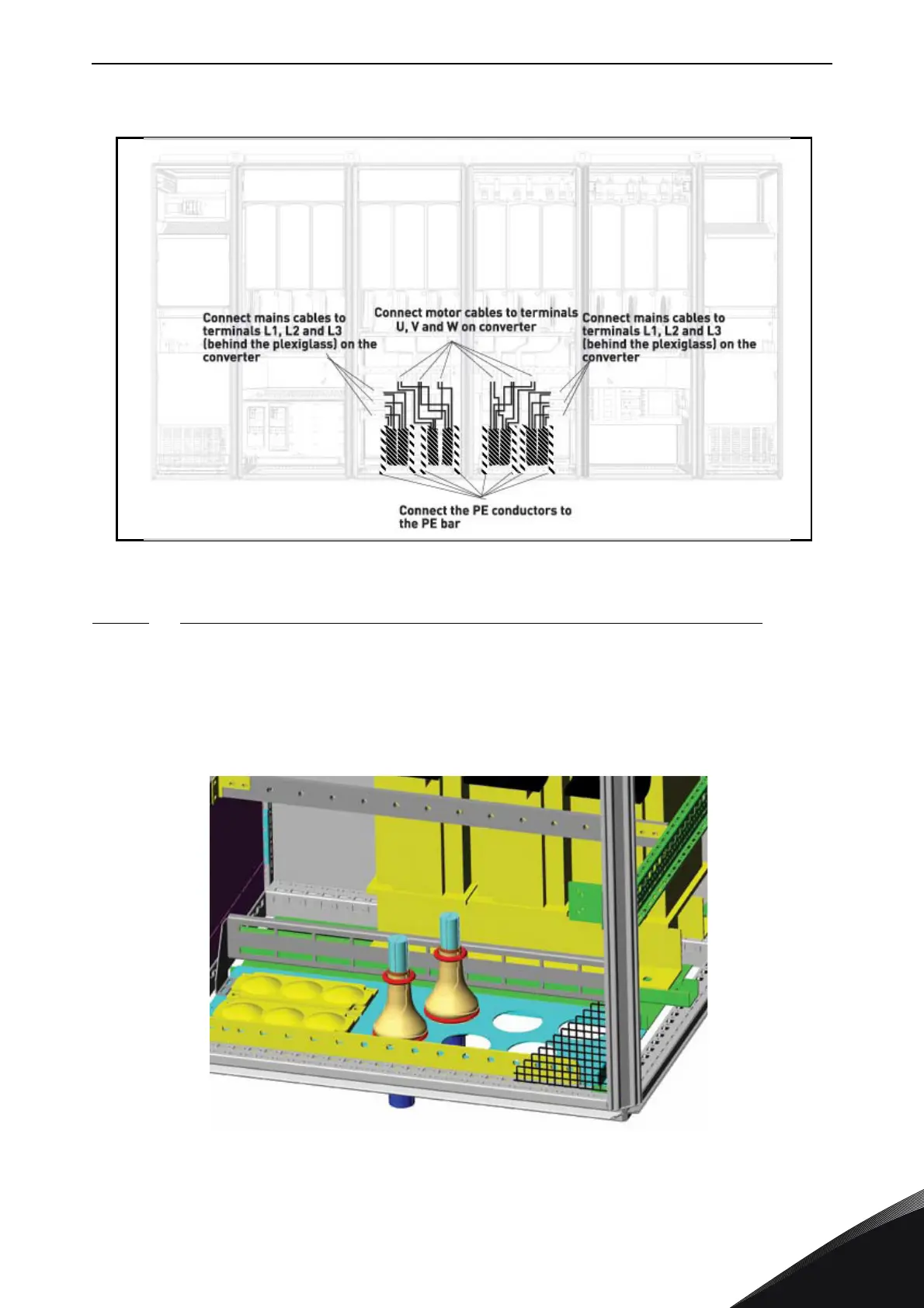

Figure 21. Routing of power cables, bottom cabling, frame AF14
6.2.2.1
Routing of power cables in FR13-14 or AF13-14 through bottom of cabinet
Route the supply and motor cables in FR13-14/AF13-14 through the cabinet bottom as shown in
Figure 22. To conform to the EMC requirements, a particular cable gland shall be used. The cable
glands are designed to be used together with screened cables when electromagnetic compatibility
(EMC) is required.
Figure 22. Routing of supply and power cables
