Vaillant ecoTEC plus 412 - Page 37

8000026412_01 Air/flue pipe installation manual 37

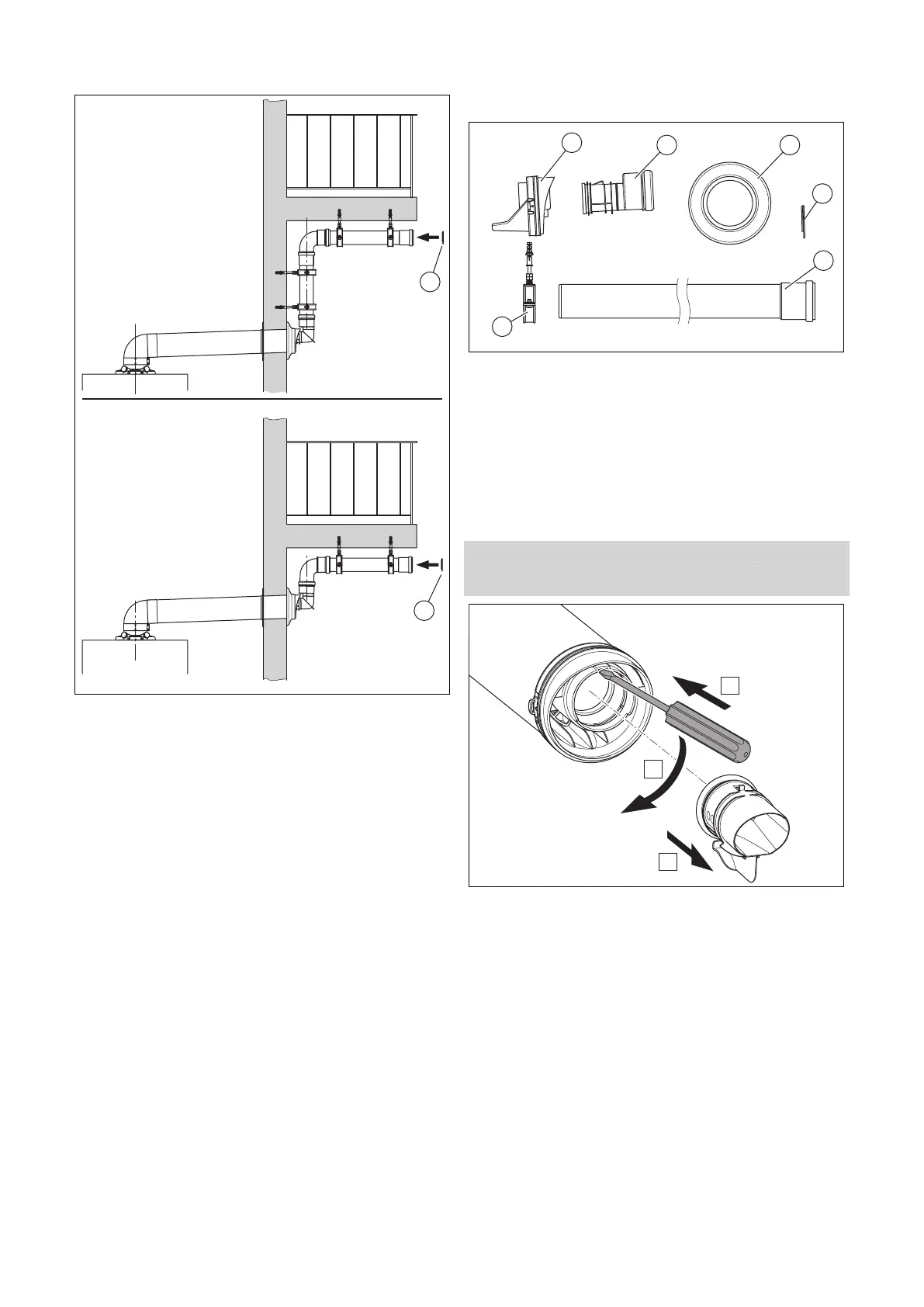

5.14.3.7 Installing the variable terminal set below the
balcony
1
1
1. When installing with an offset: Install the variable ter-
minal (→ Section 5.14.3).
2. Secure the extensions with the pipe clamps below the
balcony or on the wall (→ Section 5.14.3.4).
3. Install the bird-guard grille (1) from the terminal elbow
of the VTK set in the sleeve for the last extension.
– If a seal is present, remove the seal.
4. Connect the product (→ Section 5.12).
5.14.4 Variable terminal set (VTK) 0010047862/..63
for installing below the balcony
5.14.4.1 Scope of delivery
4
6
1
5
2 3
1 Terminal piece (for
0010047863 only)
2 Straight balcony adapter
3 Collar (for 0010047863
only)
4 Bird-guard grille
5 1 m extension (2 pcs)
6 Pipe clamps (3 pcs)
– Variable terminal set, black, article number 0010047863
– Variable terminal set, white, article number 0010047862
5.14.4.2 Installing the variable terminal set (VTK)
Condition: For 0010047863 only
▶ Replace the terminal piece.
A
B
C
1. Undo the end pipe's lock using a flat-blade screwdriver
and pull it out to the front.
