User’s Guide ______________________________________________________________________

120 __________________________________________________________________M210925EN-B

0505-211

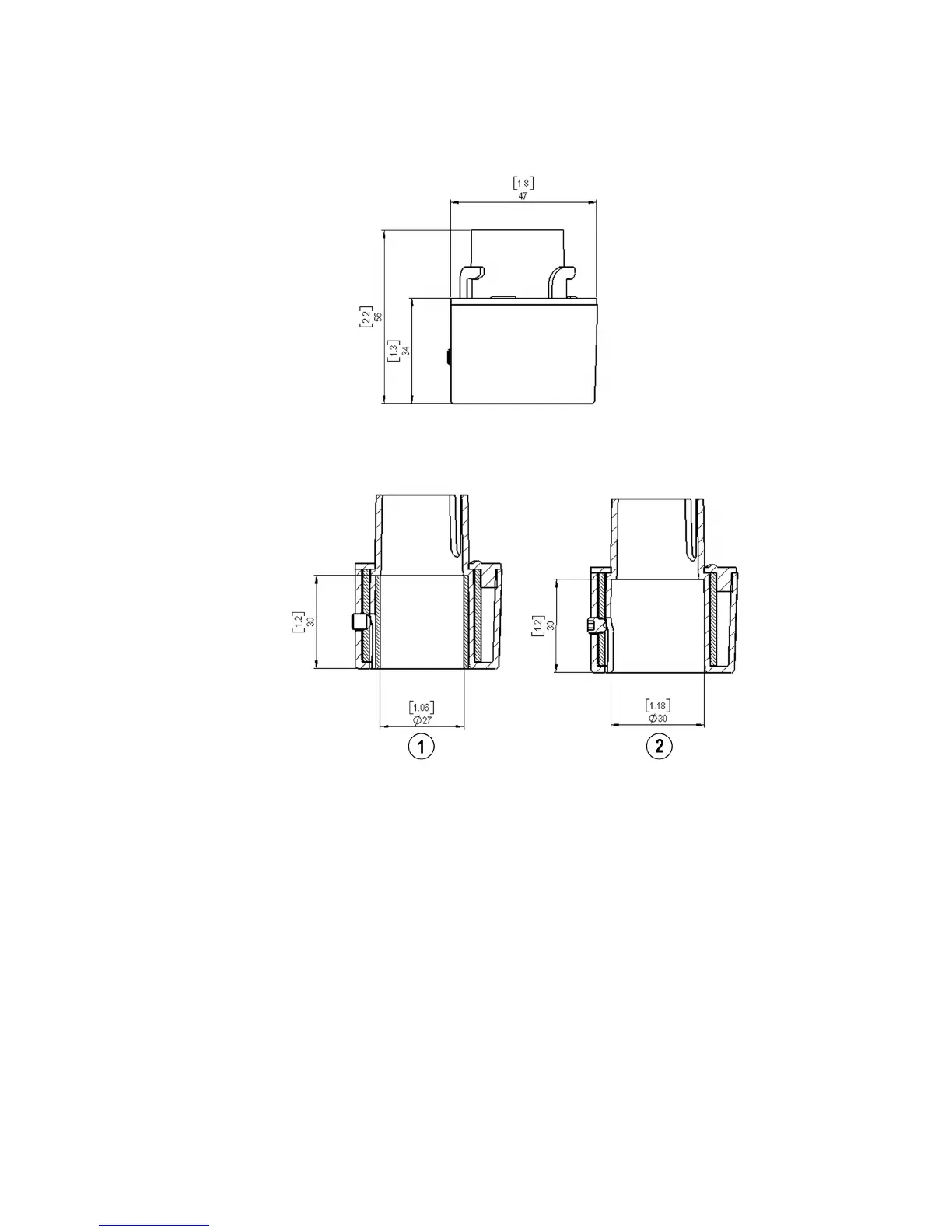

Figure 26 Mounting Kit Dimensions in mm (inch)

The following numbers refer to Figure 19 on page 94:

1 = Mounting kit with adapter sleeve for ø26.7 mm mast tube

2 = Mounting kit without adapter sleeve for ø30 mm mast tube
