Chapter 4 _______________________________________________________________ Installation

VAISALA_______________________________________________________________________ 33

0803-044

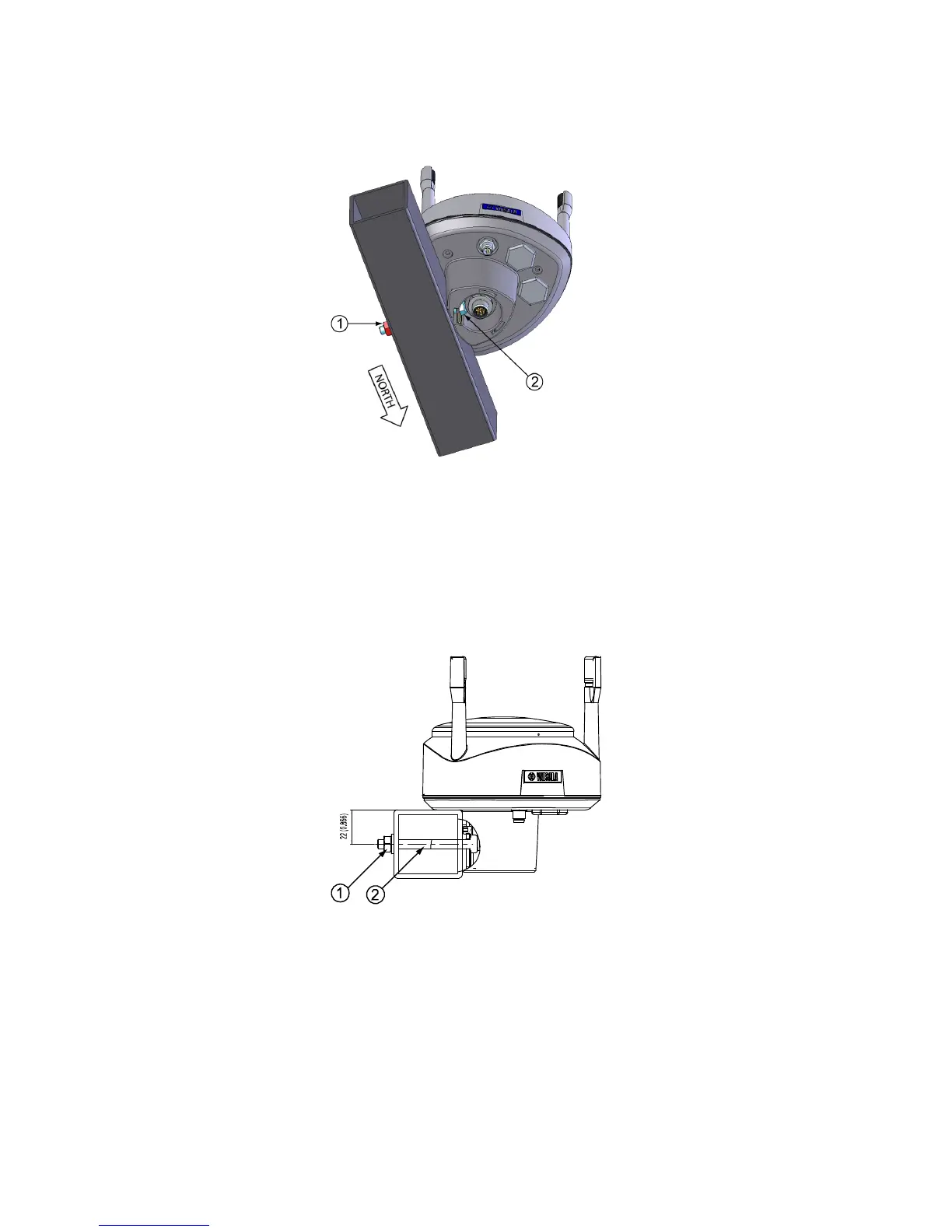

Figure 13 Mounting WMT52 to Cross Arm

0803-042

Figure 14 Mounting Bolt Location in Cross Arm

The following numbers refer to :

1 = Nut (M6 DIN934)

2 = Mounting bolt (M6 DIN933)

The following numbers refer to Figure 14 on page 33:

1 = Nut (M6 DIN934)

2 = Mounting Bolt (M6 DIN933)
