3-2 Force 2 Service Manual

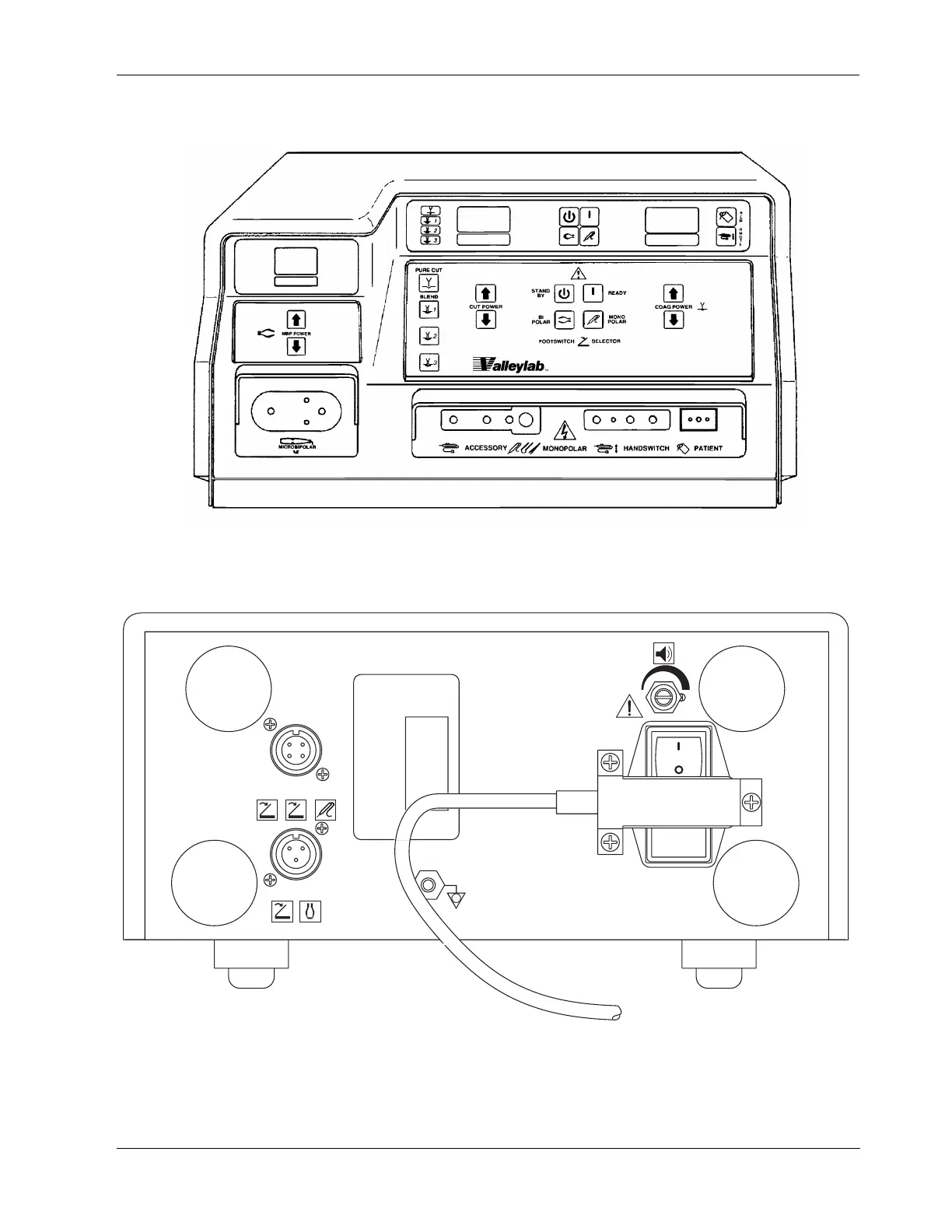

Figure 3-1.
PCH Generator Front View
Figure 3-2.
PCH Generator Rear View
MONOPOLAR
FOOTSWITCH
BIPOLAR
FOOTSWITCH
FOREIGN EQUIVALENTS AND
U.S. PATENTS: 4416276, 4416277,
4632109, 4658819, 4658820,
4827927
WARNING: RISK OF FIRE.
REPLACE FUSE
AS MARKED.
250V, F8.0A - (110-120)
250V, F6.3A - (220-240)
