Typical Output Waveforms
6-10 Force 2 Service Manual

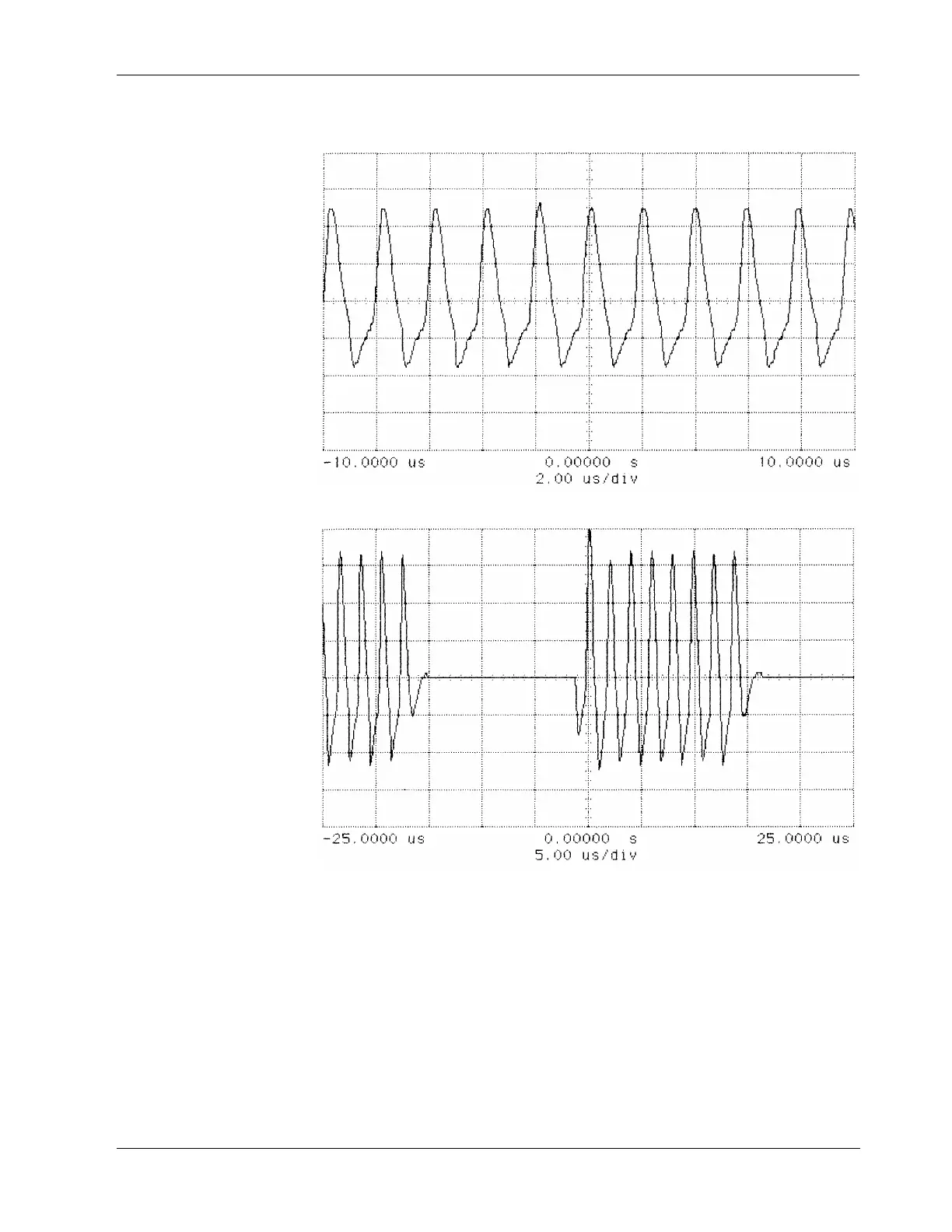

Typical Output Waveforms
Figure 6-1.
Pure Cut 300 Ω Load
Bipolar 100 Ω Load
Figure 6-2.
Blend 1 300 Ω Load
