Valleylab Force 2-2 PCH - TT-On Waveforms at TP12 on PSRF Board; RF Drive Waveforms at TP7-10 on PSRF Board

TT-on Waveforms at TP12 on PSRF Board
Maintenance Procedures
Force 2 Service Manual 6-13

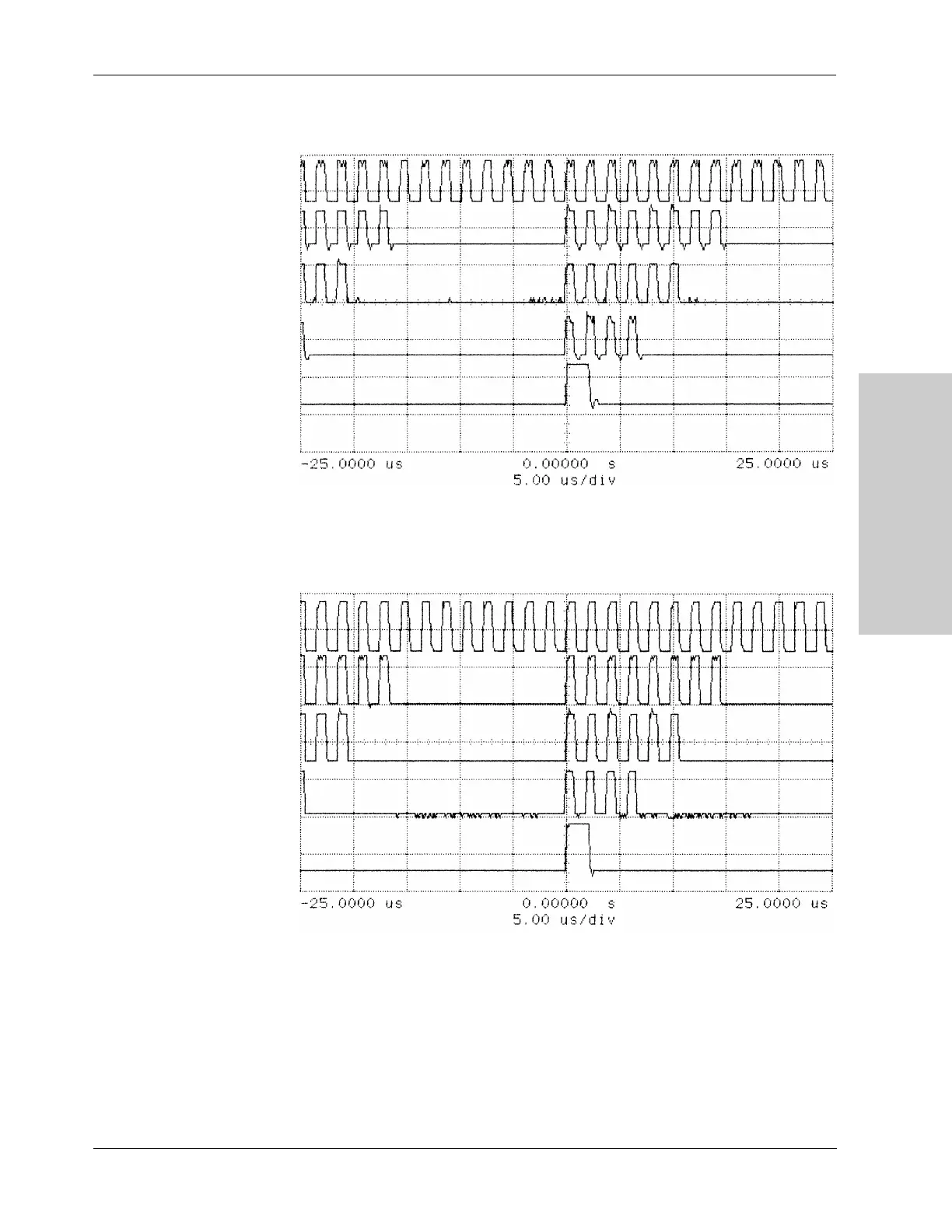

TT-on Waveforms at TP12 on PSRF Board
RF Drive Waveforms at TP7-10 on PSRF Board
.
Figure 6-6.
1-Cut/Bipolar
2-Blend 1
3-Blend 2
4-Blend 3/LV Coag
5-Coag
1
2
3
4
5
Figure 6-7.
1-Cut/Bipolar
2-Blend 1
3-Blend 2
4-Blend 3/LV Coag
5-Coag
1
2
3
4
5
