Output Power vs. Impedance Graphs
Technical Specifications
Force 2 Service Manual 4-7

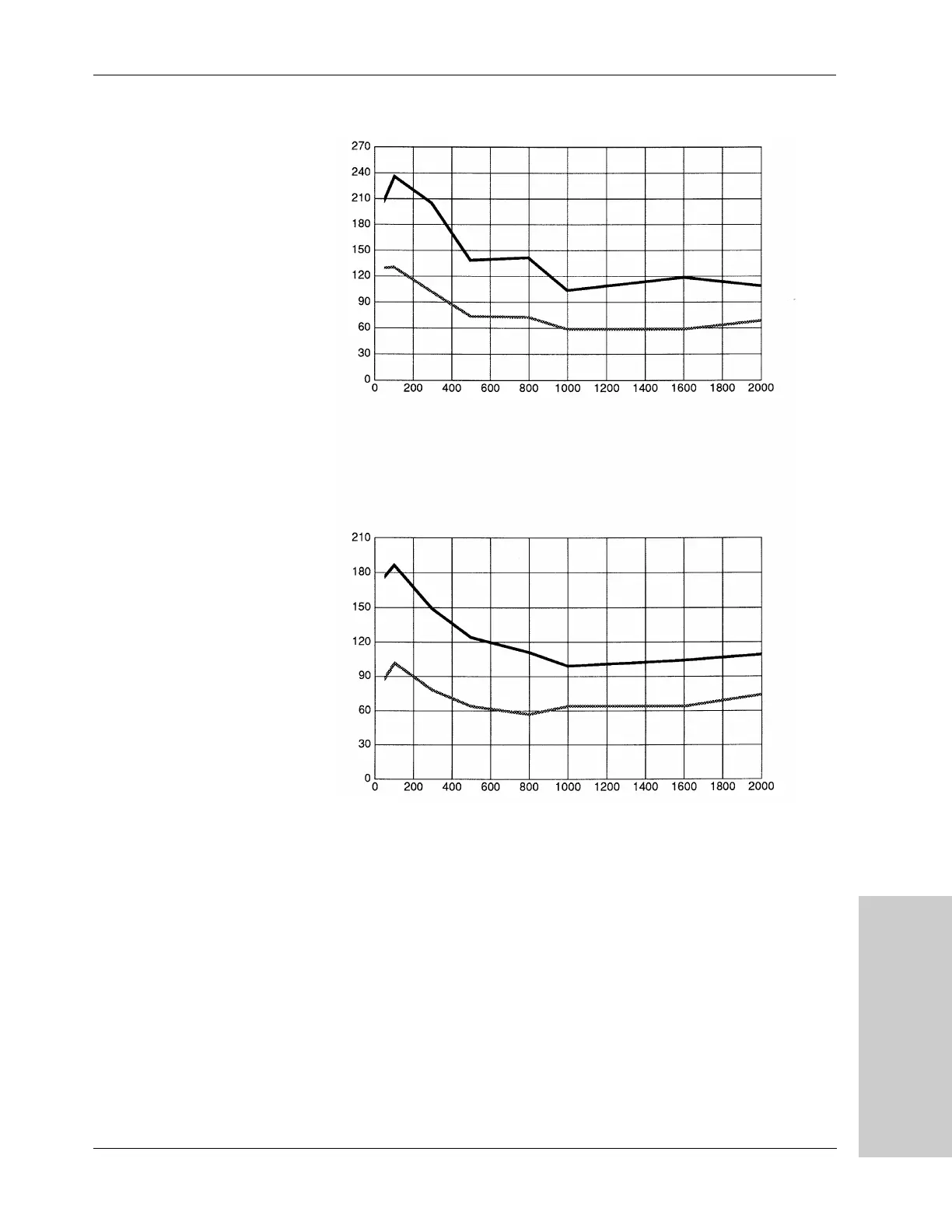

Figure 4-2.
PCH Generator Typical Output Power
vs Load—Monopolar Cut Modes
(continued)
Blend 2
Blend 3
Generator
Power
Setting
Generator
Power
Setting
Output Power (watts)
Impedance (ohms)
Impedance (ohms)
Output Power (watts)
150 W
75 W
200 W
100 W
