Output Power vs. Impedance Graphs
Technical Specifications
Force 2 Service Manual 4-9
Bipolar measurements are made using bipolar forceps on the insulating
surface referred to in IEC 601-2-2, Figure 104.

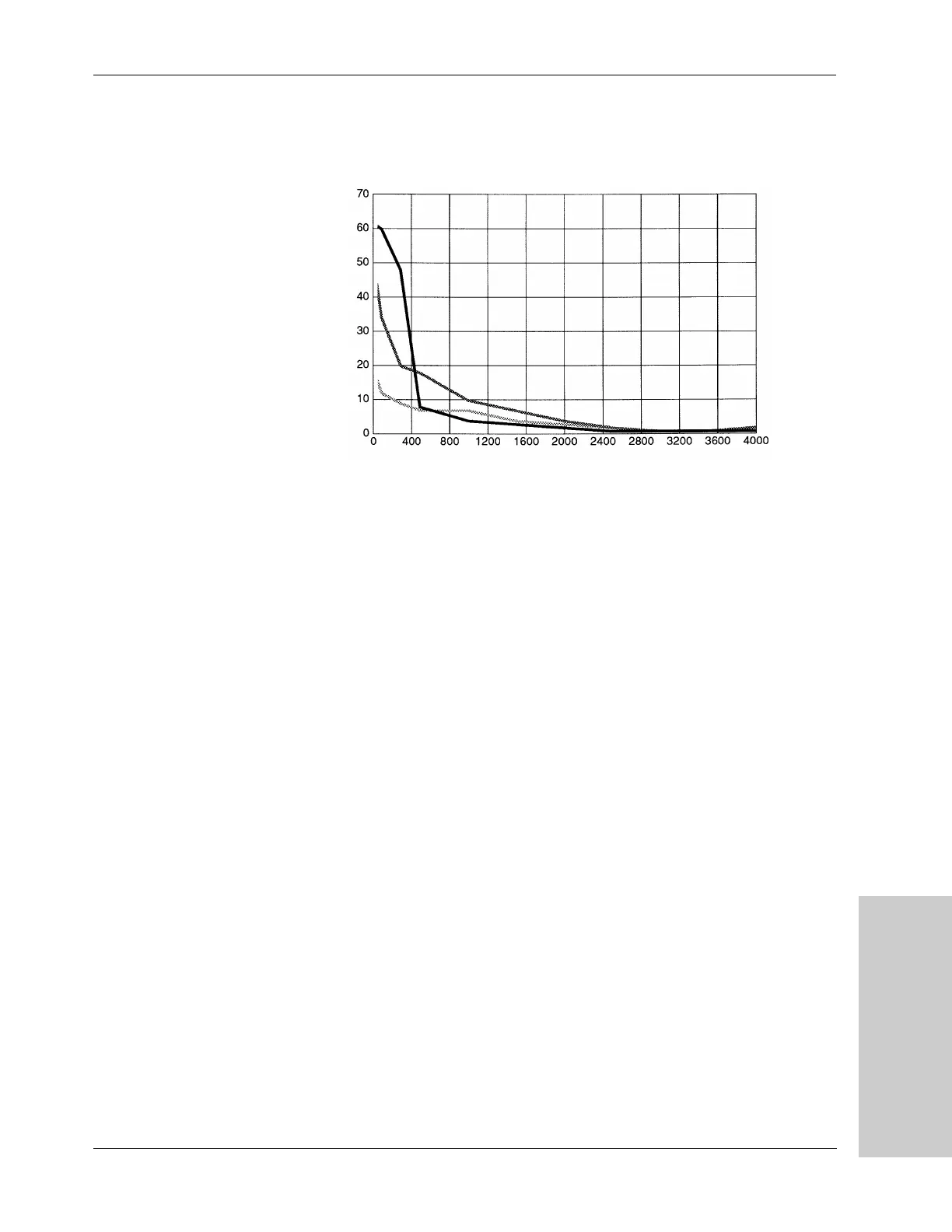

Figure 4-4.
PCH Generator Typical Output Power
vs Load—Bipolar Mode
Bipolar
Generator
Power
Setting
Output Power (watts)
Impedance (ohms)
70 W
35 W
15 W
