Output Power vs. Resistance Graphs
Technical Specifications
ForceTriad User’s Guide 9-23
Bipolar Standard

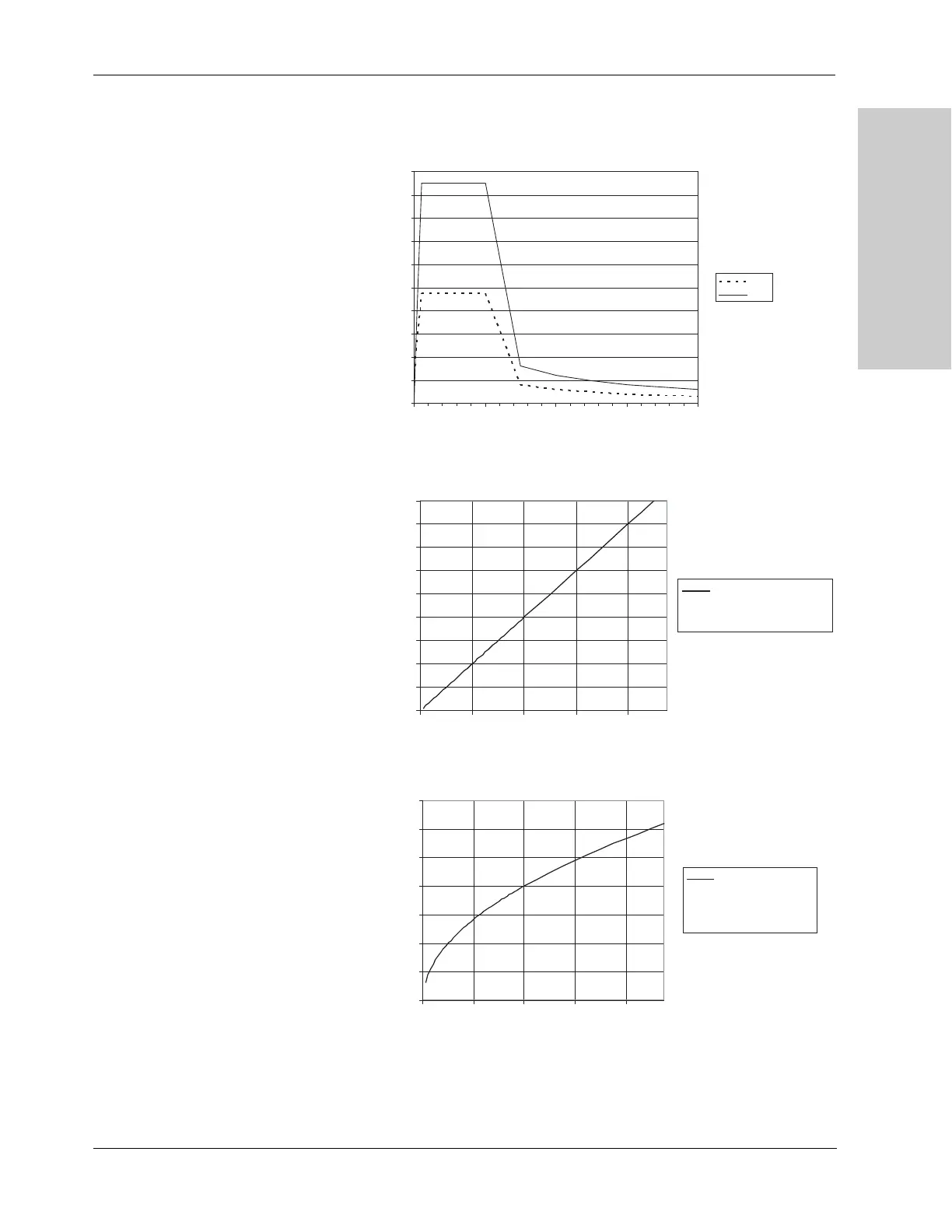

Output power versus impedance
for Bipolar Standard power
Output power versus power setting
for Bipolar Standard power
Peak voltage versus power setting
for Bipolar Standard power
Note: Maximum peak voltage in the Bipolar Standard mode occurs at 500 Ω, not
open circuit.
