Valleylab ForceTriad - Page 99

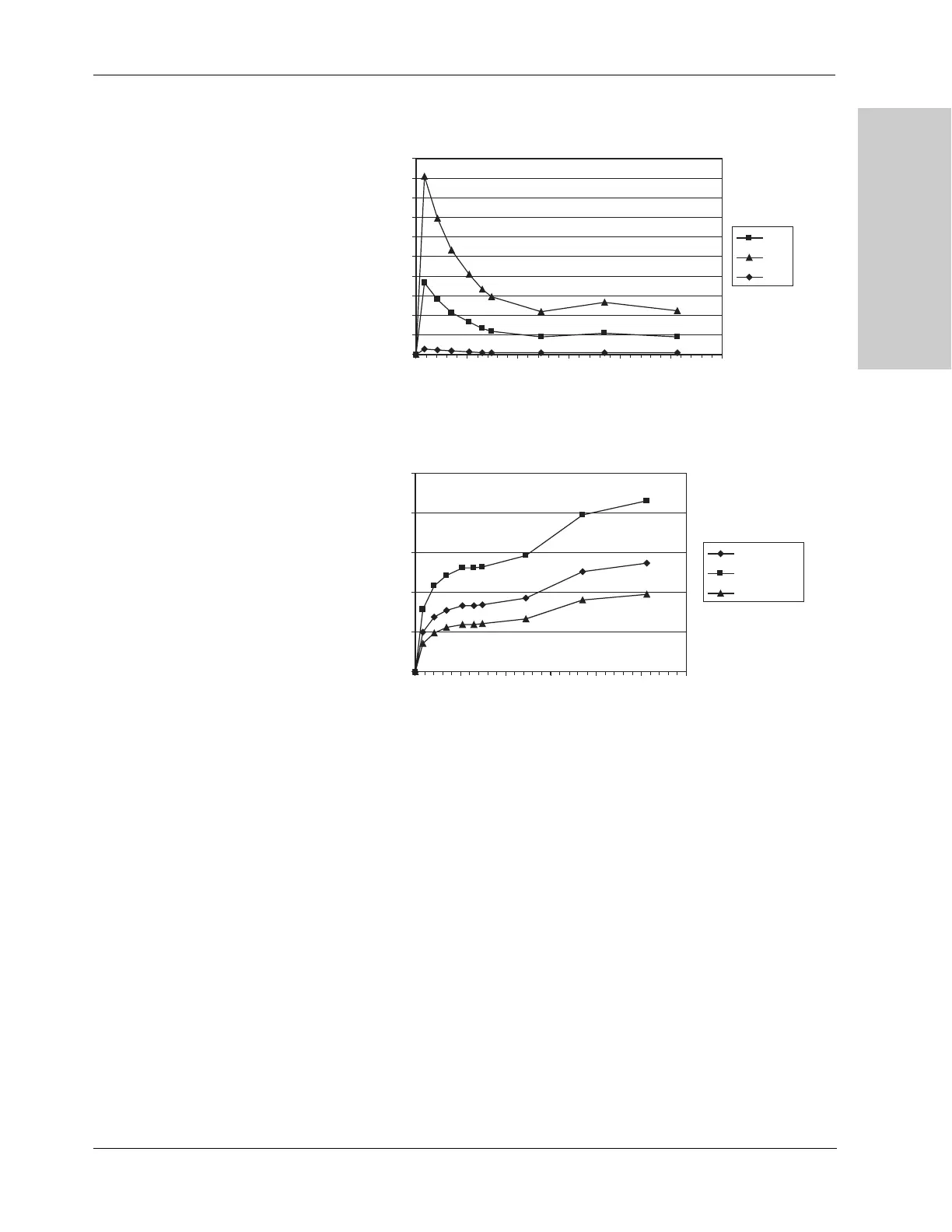

Output Power vs. Resistance Graphs
Technical Specifications
ForceTriad User’s Guide 9-25
LigaSure
Output power versus impedance
for LigaSure power
Peak voltage versus impedance
for LigaSure power
0
20
40
60
80
100
120
140
160
180
200
0 100 200 300 400 500 600
3.5A
5.5A
1.0A
Load Impedance (ohms)
Output power (watts)
0
50
100
150
200
250
0 100 200 300 400 500 600
3.5A Vpeak
5.5A Vpeak
1.0A Vpeak
Peak Voltage
Load Impedance (ohms)
