6. The Adorn, Visage, Eternal, Decadent, Obsession and Dream models have an
outlet baffle supplied with the appliance fascia. Fit this to the convected air outlet of
the appliance using the three self tapping screws supplied with the fascia (See figure
15).
The Icon model has a heat baffle supplied with the appliance fascia. Fit this to the
convected air outlet of the appliance using the three self tapping screws supplied with
the fascia (See figure 15).
7. This appliance is supplied with a rear
ceramic support bracket. Fit this using two
screws supplied (See figure 16)
8. This appliance is supplied with a flue
restrictor for use where the flue draught is
excessive. Generally we recommend the
restrictor is NOT fitted where a precast
flue, metal flue box or a flue liner is used,
however, certain flues may work
sufficiently to warrant its use. There may
however, be circumstances where fitting the
restrictor causes the fire to fail the spillage
test. In such cases the restrictor will have to
be removed. After removal conduct the
spillage check again.
The restrictor is packed loose with the
appliance and is fixed with three screws
(See figure 17).
Page 26
© Baxi Heating U.K. Limited 2009.
INSTALLER GUIDE

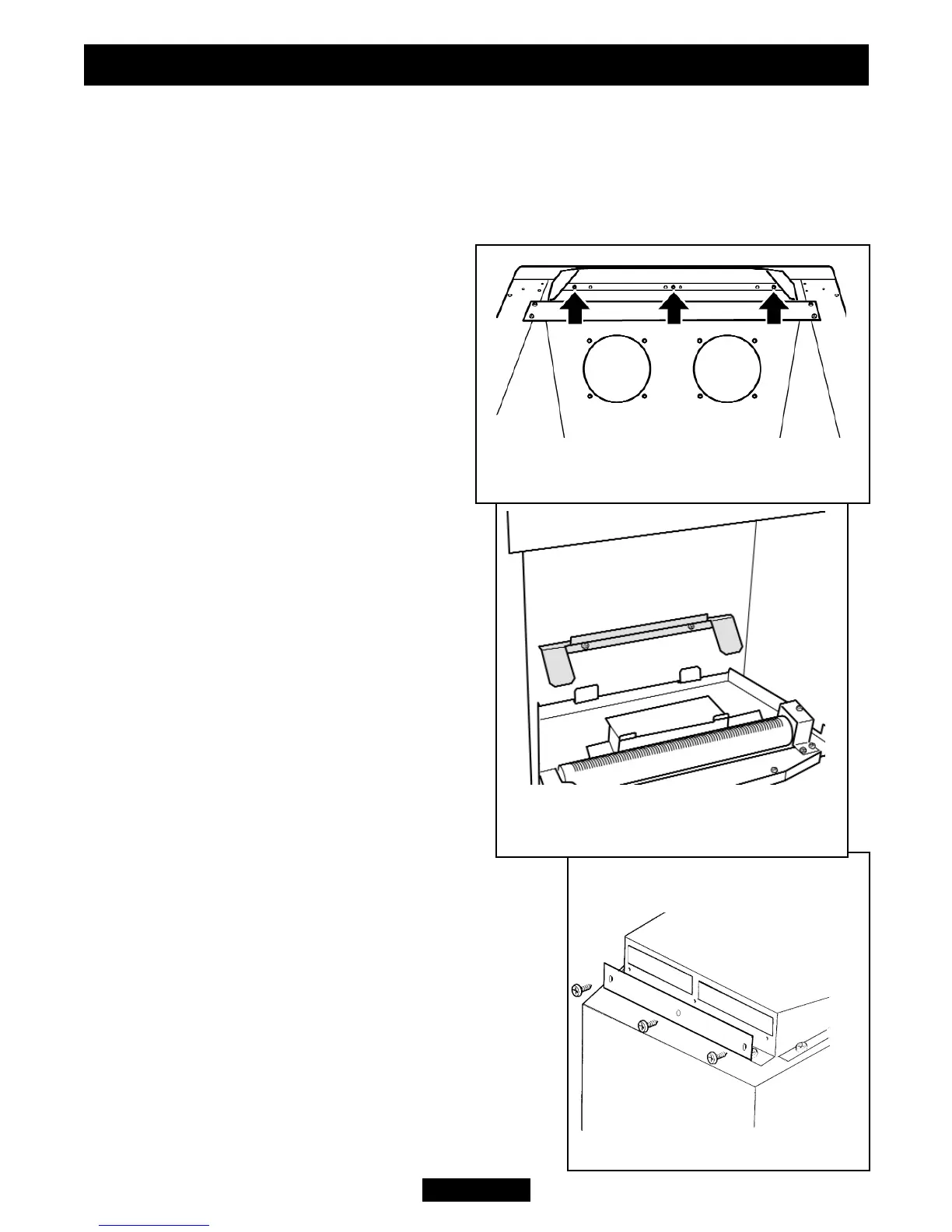

Figure 17. Flue restrictor
Figure 16. Fitting the rear ceramic
support.
Figure 15. Fitting outlet baffle (The outlet
baffle design may differ from that shown)
