17.5 To replace the control slide unit.
Icon, Eternal and Obsession models.
1. Remove the fascia (See section 17.4).
2. Detach the slide unit by removing two screws securing the plastic slide mechanism
to the rear of the fascia (See figure 53).
3. Replace in the reverse order.
Dream model
1. Remove the fascia (See section 17.4).
2. Detach the slide unit by removing two screws securing the plastic slide mechanism
to the convector box.
3. Replace in the reverse order.
Visage model
1. Remove the fascia (See section 17.4).
2. Detach the rear baffle
3. Detach the slide unit by removing two screws securing the plastic slide mechanism
to the rear of the fascia (See figure 53).
4. Replace in the reverse order.
Page 45
© Baxi Heating U.K. Limited 2009.
INSTALLER GUIDE

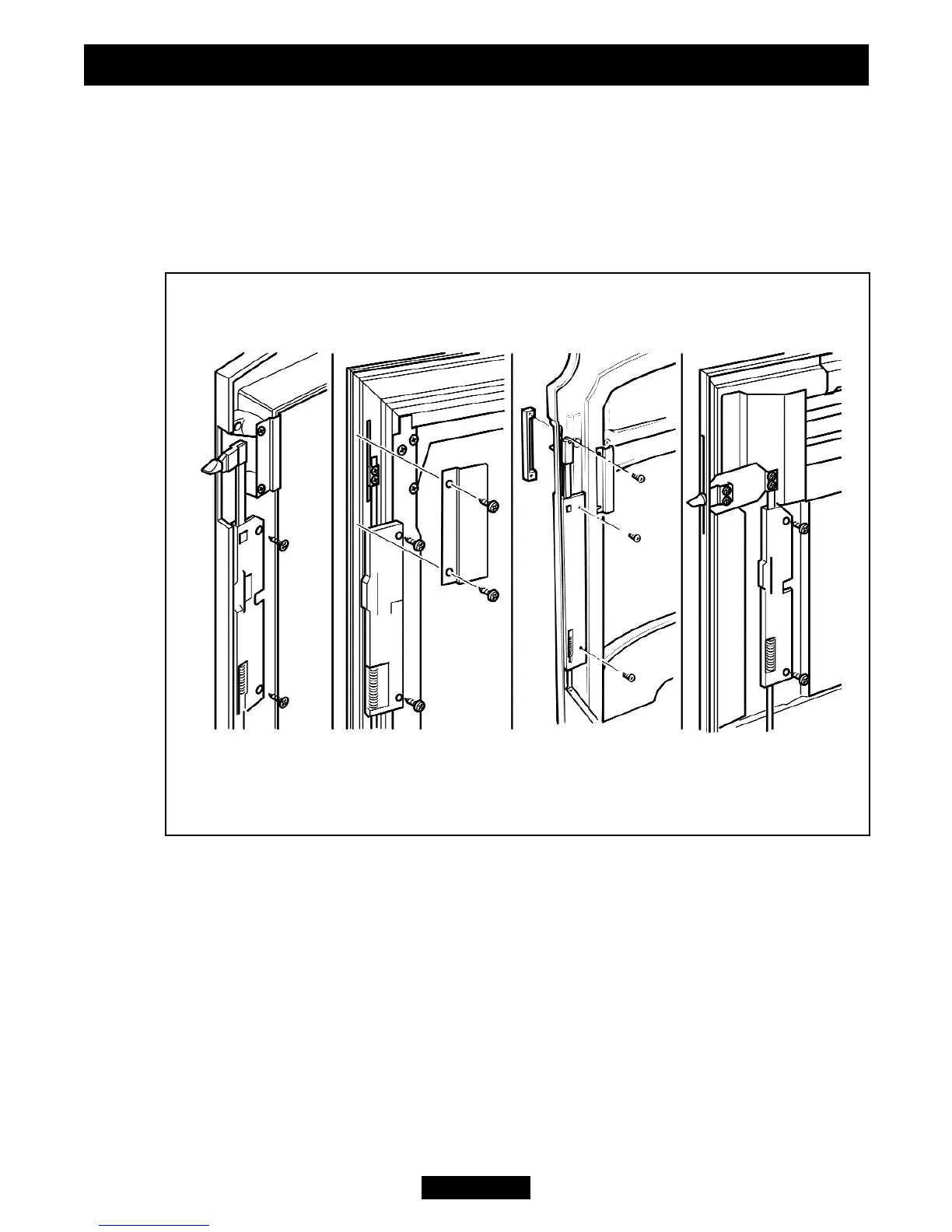

Figure 53. Control slide fixings
Visage
Adorn
Icon
Eternal and
Obsession
(The Eternal, Dream and Obsession fascia are different. Slider control
fixing is similar)
