13. FITTING THE CERAMIC FUEL EFFECT
The installer and owner guide for the ceramic fuel effect is supplied with the ceramic
fuel effect. It is important that the fitting guide for the ceramic fuel effect be placed
inside or attached to this guide and handed to the customer following completion of
the ‘Final review’ section.
Ensure that the fire is OFF. Open the isolating valve at the inlet ‘T’ connector and
replace the end cap. Light the fire, turn to the maximum output position and test
around the sealing screw for gas soundness with a suitable leak detection fluid.
14. FIREFRONT / BOTTOM COVER INSTALLATION
14.1 Adorn bottom front cover.
Place the bottom front cover in position below the fascia bridge.
14.2 Visage, Obsession and Eternal fire front casting.
14.2.1 Fit the fire front casting to the fascia. Locate the two screw heads at the rear
top corners of the firefront casting through the keyhole slots at the inner sides of the
fascia. If the screw heads do not project
enough or project too far, the screws can be
adjusted. Lower the casting so that it rests on
the hearth (See figure 41).
14.2.2 (Obsession and Eternal only) Place the
bottom front cover casting in position below the
fire front casting.
14.3 Icon bottom front cover.
Locate the top flanges of the bottom front cover
behind the bottom edge of the fascia. Fix the
sides of the cover to the fascia bottom corner
brackets with the two
knurled screws
provided (See figure
42).
Page 37
© Baxi Heating U.K. Limited 2009.

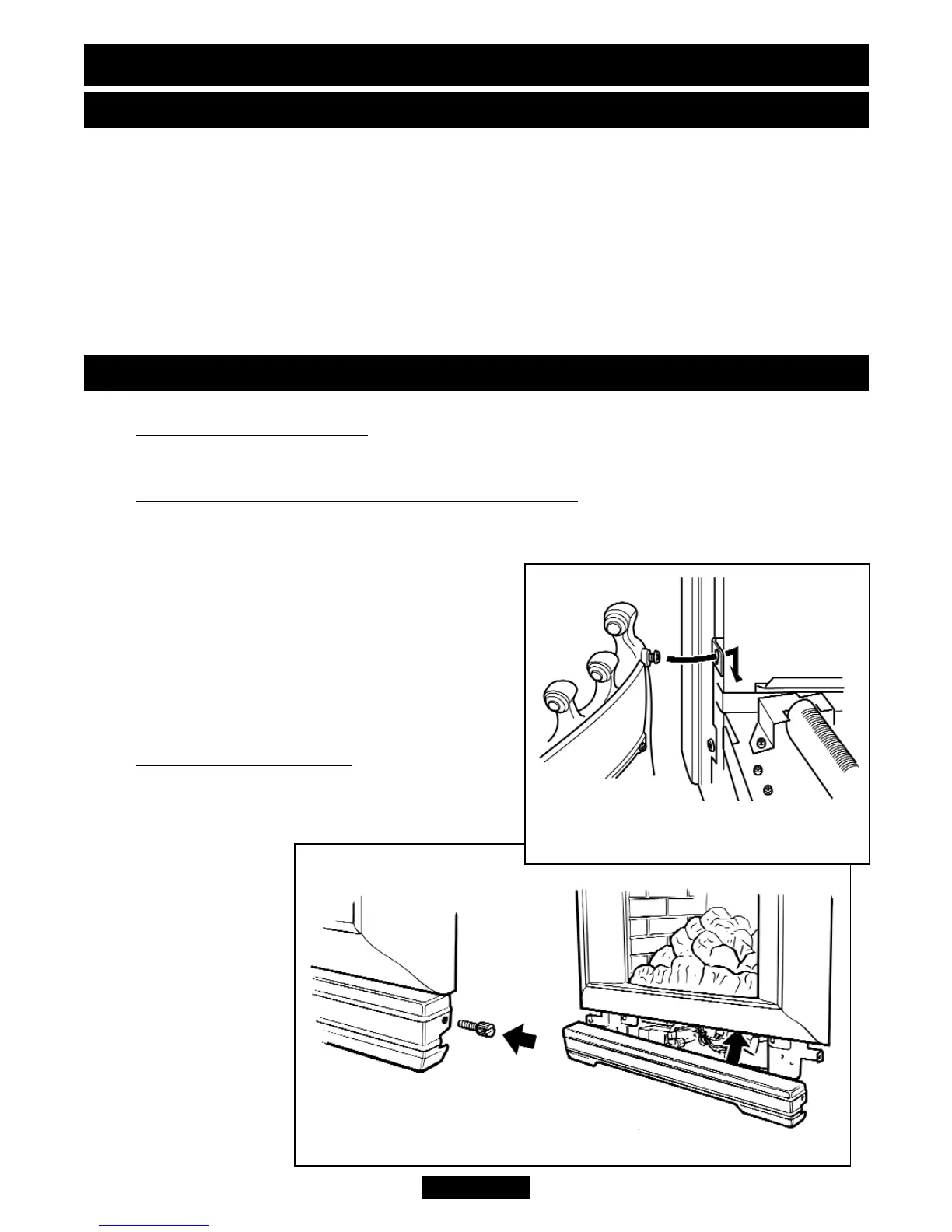

Figure 42. Icon bottom front cover location.
INSTALLER GUIDE
Figure 41. Firefront casting (Casting
may differ from that shown).
