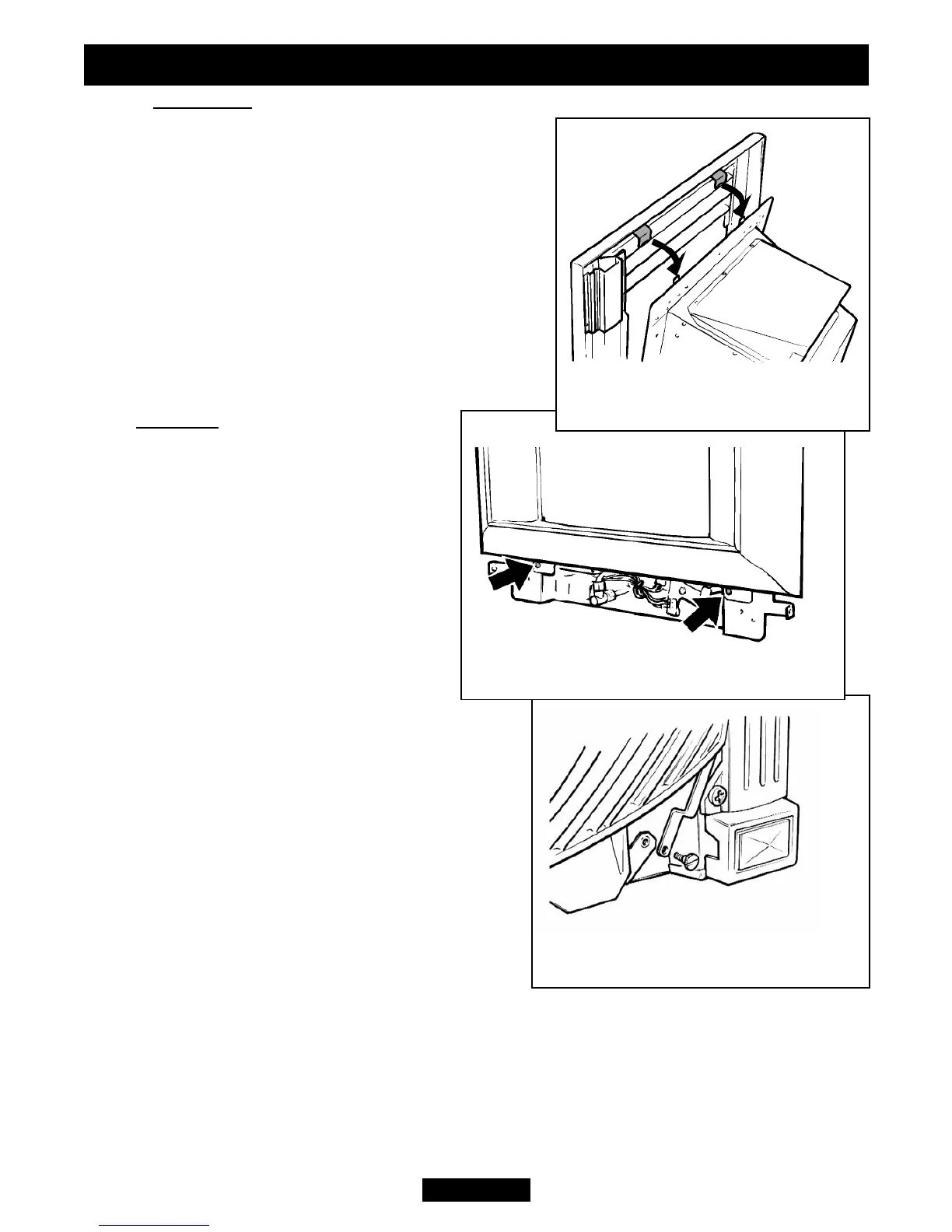

12.2.4 Icon fascia
Place the fascia against the fireplace front surface
so that the two retaining plates at the back of the
fascia are directly above the two upper retaining
brackets at the top of the convection box. Lower
the fascia unit making sure that the ears on the
fascia retaining plates locate fully over the sides of
the convection box brackets (See figure 38).
Swing the bottom control linking bar towards the
centre of the fire to clear the right side of the
fascia. Fix the bottom of the fascia unit to the
convection box with two screws (See figure 39).
12.3 All fascia
Align the hole near the bottom of the
control linking bar with that in the control
pivot bracket. Join them with the knurled
shouldered screw and screwdriver -
NOT finger tight only (See figure 40).
Make sure that the isolating valve is
closed. Slide the control button fully from
top to bottom and back to make sure
that the slide and pivot mechanisms
move smoothly. Note that some
resistance should be felt when the slide
button reaches the “burner fully on” position.
Page 36
© Baxi Heating U.K. Limited 2009.
INSTALLER GUIDE
Figure 40. Control bar and pivot
bracket (Shown with Adorn fascia)
Figure 39. “Icon” fascia bottom location
Figure 38. “Icon” fascia top
location
