3.9 Fireplace clearances.
3.9.1 Adorn model only
The minimum height from the base of the fireplace opening to the underside of any
shelf made from wood or other combustible materials is shown in figure 2.
Visage, Dream, Eternal, Decadent and icon models only.
The minimum height from the base of the fireplace opening to the underside of any
shelf made from wood or other combustible materials is shown in figure 3.
Page 12
© Baxi Heating U.K. Limited 2009.
INSTALLER GUIDE

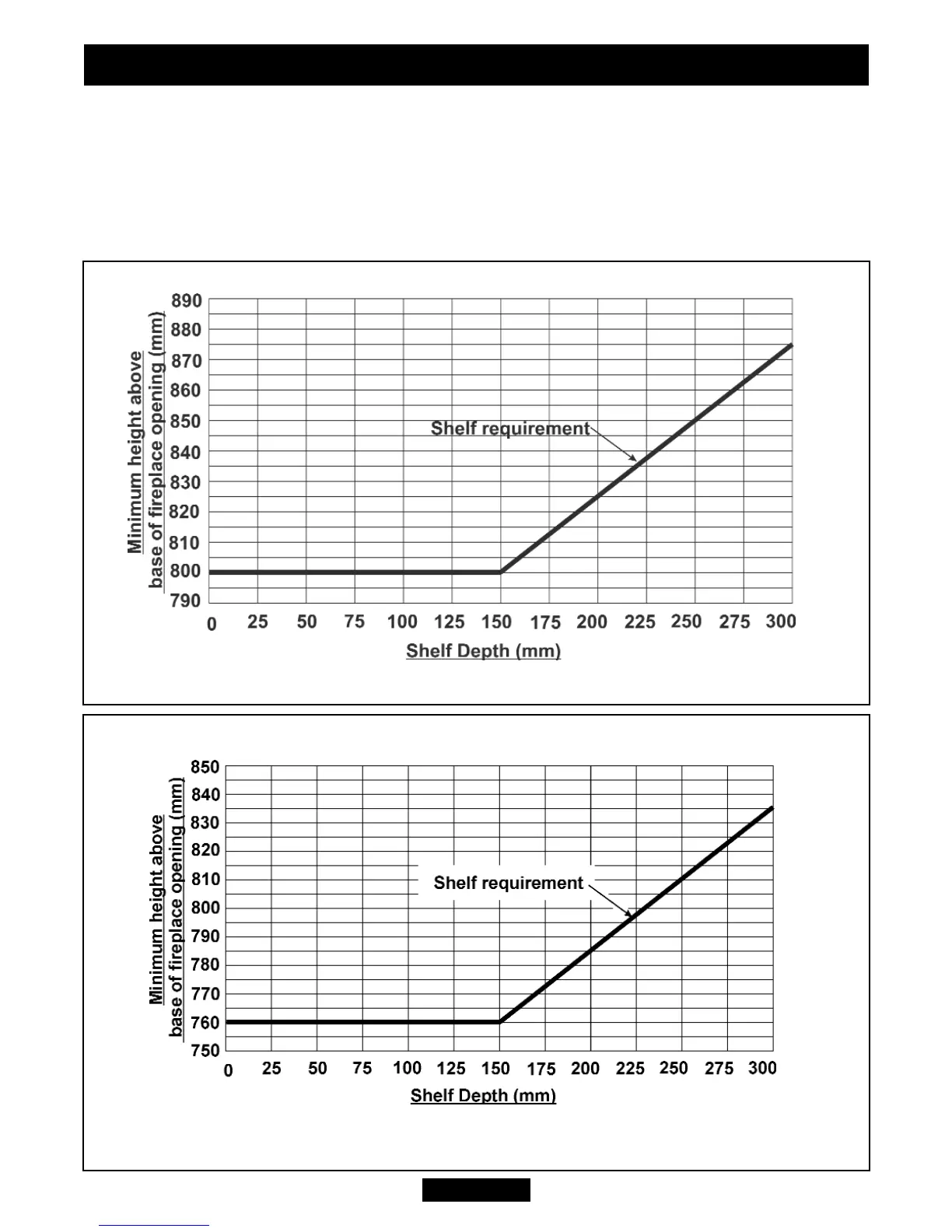

Figure 2. Combustible shelf clearances for ADORN model only
ADORN MODEL ONLY
VISAGE, DREAM, ETERNAL, DECADENT, OBSESSION AND ICON MODELS ONLY
Figure 3. Combustible shelf clearances for VISAGE, DREAM, ETERNAL,
DECADENT, OBSESSION and ICON models only.
