position for a further 10 seconds to allow the pilot flame to stabilise.
3. Release the button. The button should automatically spring up to the low heat
position. If for any reason the slider control does not spring up, raise the slider to the
topmost (Off) position and investigate why the slider is not operating correctly. If the
flames go out at this stage or when checking the rest of the setting positions, try the
full lighting sequence again. If the flames fail after two attempts, investigate the pilot
unit.
4. Gradually slide the button up to increase the burner setting. The burner should be
at its maximum setting at the high heat position shown in figure 45. You should feel a
check to the button movement at this position.
5. Slide the control button up past the high heat position to the off (“O”) position at the
top of the slide slot. Both pilot and main burner should go out. While cooling the
ceramic fuel effect may make some crackling noises. This is quite normal.
15.2 Check for spillage.
1. Close all doors and windows in the room containing the appliance.
2. Light the appliance and set the slide control to the maximum burning position.
3. Leave the appliance on for five minutes.
4. The smoke match should be placed horizontally into the convection box at the right
hand side. There is a notch in the black cross member. Insert the tube so that the
neck of its flared end is 5mm passed and in contact the cross member (See figure
46).
The installation is satisfactory if the smoke is drawn into the appliance.
If the smoke is not drawn into the appliance leave the appliance alight at the
maximum setting for a further ten
minutes and then repeat the test. If the
smoke is still not drawn into the
appliance inspect the sealing to the
fireplace surround. If the sealing is
satisfactory but the appliance is installed
with the flue restrictor (See section 8
point 8) remove the restrictor, reseal the
appliance and retest. If smoke is still not
drawn into the appliance disconnect
the appliance and seek expert advice.
5. If the above test is satisfactory open
all internal connecting doors, hatches,
etc. in the room. Keep all doors and
windows that open to the outside of the
Page 39
© Baxi Heating U.K. Limited 2009.

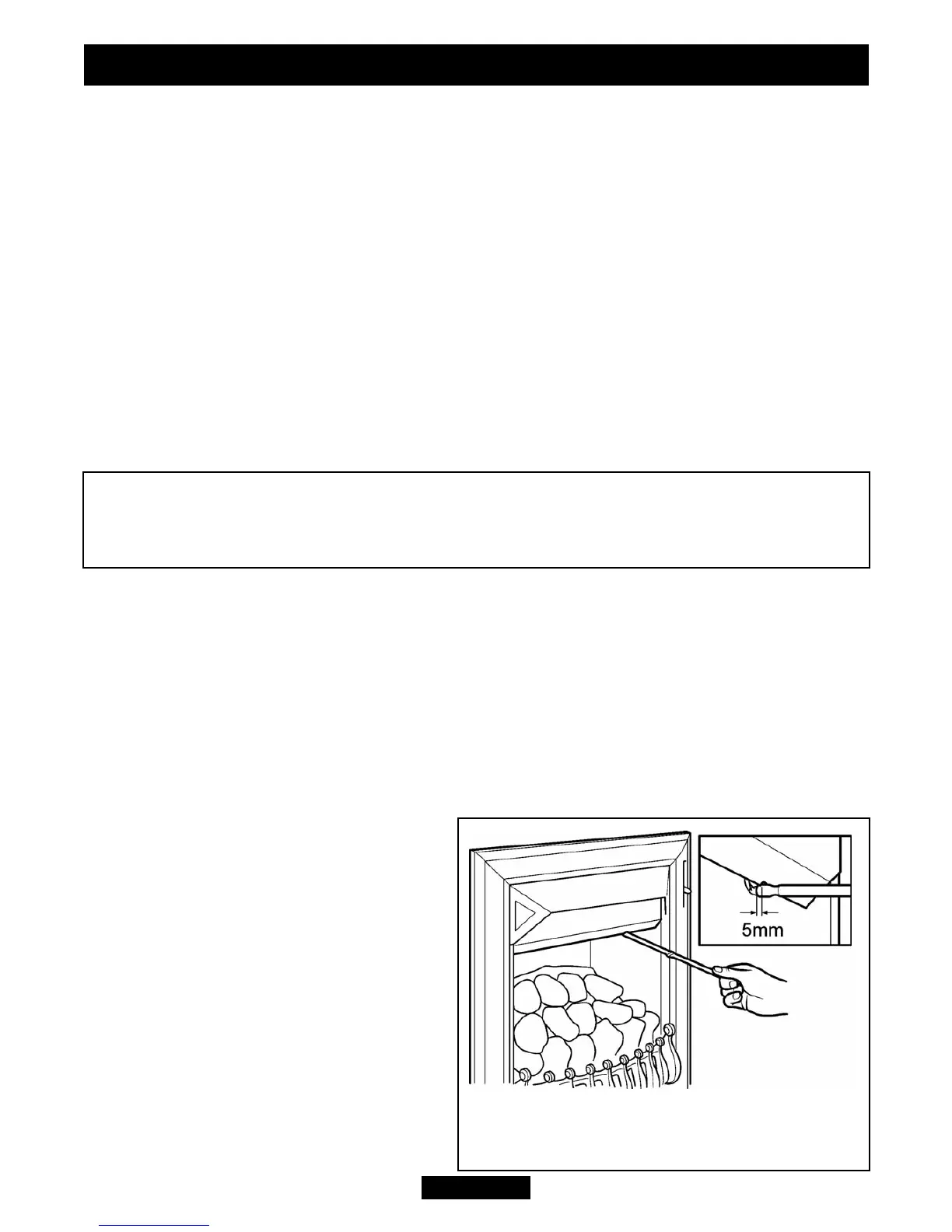

Figure 46. Smoke match tube position
(Shown with ‘Visage’ fascia)
INSTALLER GUIDE
A spillage check must be made before leaving the installed appliance with the
customer. Make this with all the ceramic fuel effect pieces and complete fascia
and firefront in position.
