17.4 To remove the fascia.
1. Remove the bottom front cover / fire front casting.
2. Detach the control-linking bar from the control pivot
bracket by removing the knurled screw, which joins
the control linking bar to the control pivot unit (See
figure 50).
3. Remove the two screws securing the bottom of the
fascia to the sides of the convection box (See figure
51).
4. Make sure that the control linking bar has been
detached (See 2 above). Carefully lift the fascia
upward to clear the upper retaining brackets on the
convection box (See figure 52). Pull the fascia clear
and place carefully aside.
5. Refit in the reverse order. Make sure that the
fascia is properly located over the upper retaining
brackets. See section 12 of this guide for detailed
fitting instructions.
Page 44
© Baxi Heating U.K. Limited 2009.
INSTALLER GUIDE

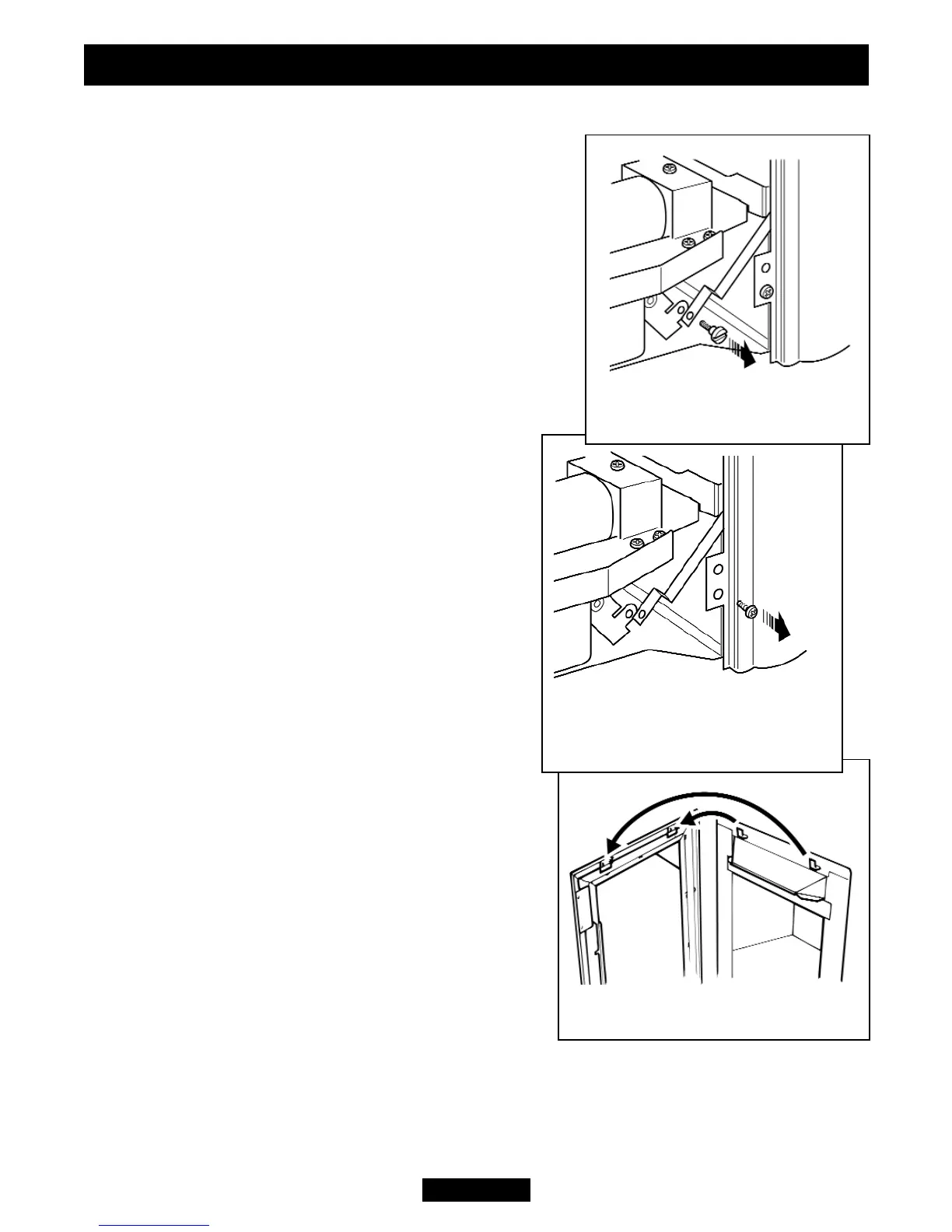

Figure 52. Fascia top location
Figure 51. Fascia bottom
location (Shown with Visage
fascia).
Figure 50. Control linkage
disconnection
