14.4 Dream fascia.
14.4.1. Place the firefront casting centrally on top
of the hearth in front of the fascia.
14.4.2. Place the bottom front cover casting in
position.
14.5 Decadent fascia.
14.5.1 Check that the two screws in the back of
the fire front casting are in the outer threaded
holes. If they are in the inner holes, relocate them
(See figure 43).
14.5.2 Locate the two screw heads through the
keyhole slots at the inner sides of the surround. If
the screw heads do not project
enough or project too far, the
screws can be adjusted. Lower
the casting so that it rests on
the hearth (See figure 41).
14.5.3 Fit the "ash pan" cover
below the front casting locating
it as shown in figure 44.
15. FULL OPERATING CHECKS
15.1 Checking the control settings.
The control position markings on the fascia are shown in figure 45.
Please note:
When first turned on from cold, the flames will appear
predominantly blue.
When operating the fire for the first time, some vapours
may be given off which could set off smoke alarms in the
vicinity. These vapours are quite normal with new
appliances. They are totally harmless and will disappear after
a few hours use.
1. Make sure the slider button is at the off position (At
topmost position marked “O” on the fascia).
2. Slide the button to the bottom (ignition) position marked
. Retain in this position to ignite the pilot. The burner
should ignite at its lowest setting within 4 seconds of the pilot igniting. Keep at this
Page 38
© Baxi Heating U.K. Limited 2009.
INSTALLER GUIDE

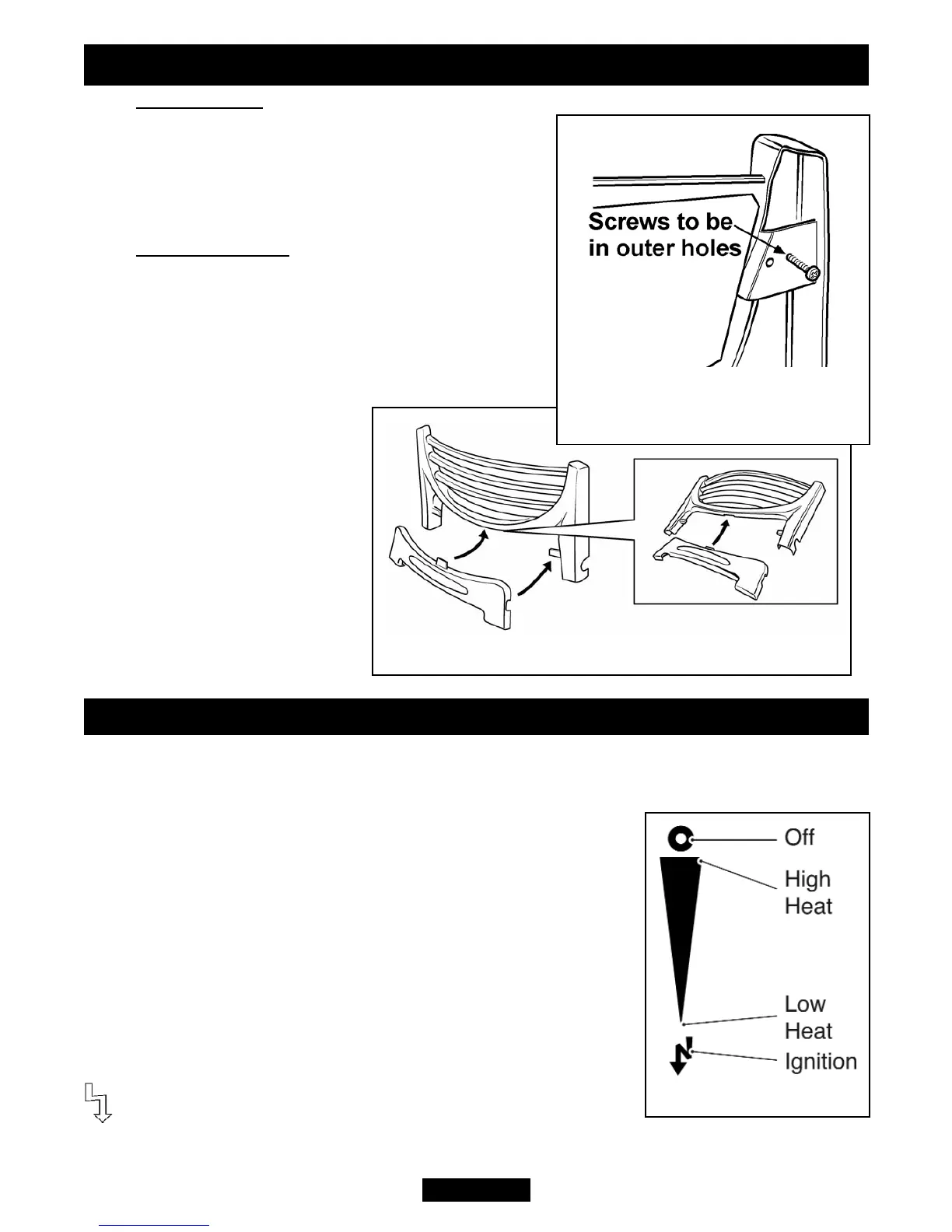

Figure 44. “Ash pan” cover location
