12.2.3 Dream fascia
Place the fascia against the fireplace front
surface so that the two retaining plates at the
back of the fascia are above the two upper
retaining brackets at the top of the convection
box. Lower the fascia making sure that the
rear retaining plates locate fully into the
retaining brackets on the convection box (See
figure 35). If the inlet pipe runs along the front
of the fireplace, the bottom of the fascia will
have to be swung forwards to clear the pipe
while lowering the casting.
Swing the bottom control linking bar towards
the centre of the fire to clear the fascia. Align
the bottom fixing holes with those in the
convection box. Fix the bottom of the fascia
to the convection box with two screws and
washers (See figure 36).
Supplied with the fire is a self adhesive
control position label. Peel the backing from
the label and place as in figure 35.
Fit the burner baffle to the front flanges of the
burner. To do this, place the baffle against the
front flanges of the burner and lower into position.
The return edges on the rear of the baffle should
slot over the front flanges of the burner (See figure
37).
Page 35
© Baxi Heating U.K. Limited 2009.
INSTALLER GUIDE

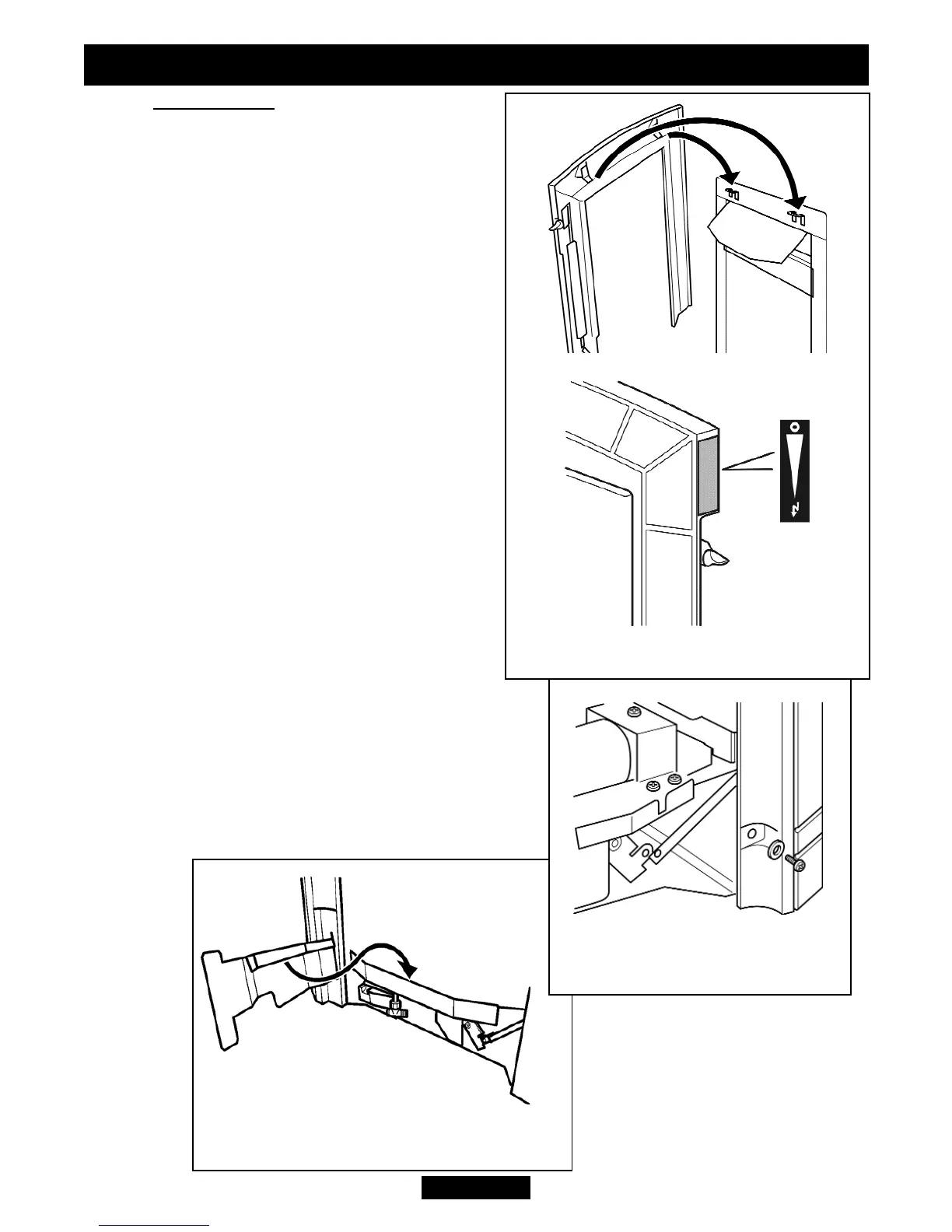

Figure 37. Fitting the burner baffle
(Dream and Visage models only)
Figure 36. Adorn fascia bottom
fixing.
Figure 35. Dream fascia top location
