31). If the inlet pipe runs along the front of the fireplace, the bottom of the fascia will
have to be swung forwards to clear the pipe while lowering the casting.
Swing the bottom control linking bar towards the
centre of the fire to clear the front casting. Slide the
front casting sideways, if necessary, to align the
bottom fixing holes with those in the convection box.
Fix the bottom of the casting to the convection box
with two screws and washers (See figure 32).
12.2.2 Visag
e, Decadent, Obsession and Eternal
fascia
Place the fascia against the fireplace front surface
so that the two retaining plates at the back of the
fascia are directly above the two upper
retaining brackets at the top of the
convection box. Lower the fascia unit
making sure that the retaining plates
locate fully over the brackets on the
convection box (See figure 33).
Swing the bottom control linking bar
towards the centre of the fire to clear the
right side of the fascia. Slide the fascia
unit sideways, if necessary, to align the
bottom fixing holes with those in the
convection box. Fix the bottom of the
fascia to the convection box with two
screws (See figure 34).
Eternal and Obsession fascia only.
Supplied with the fire is a self adhesive control
position label. Peel the backing from the label
and place as in figure 35.
Visage fascia only.
Fit the burner baffle to the front flanges of the
burner. To do this, place the baffle against the
front flanges of the burner and lower into
position. The return edges on the rear of the
baffle should slot over the front flanges of the
burner (See figure 37).
Page 34
© Baxi Heating U.K. Limited 2009.
INSTALLER GUIDE

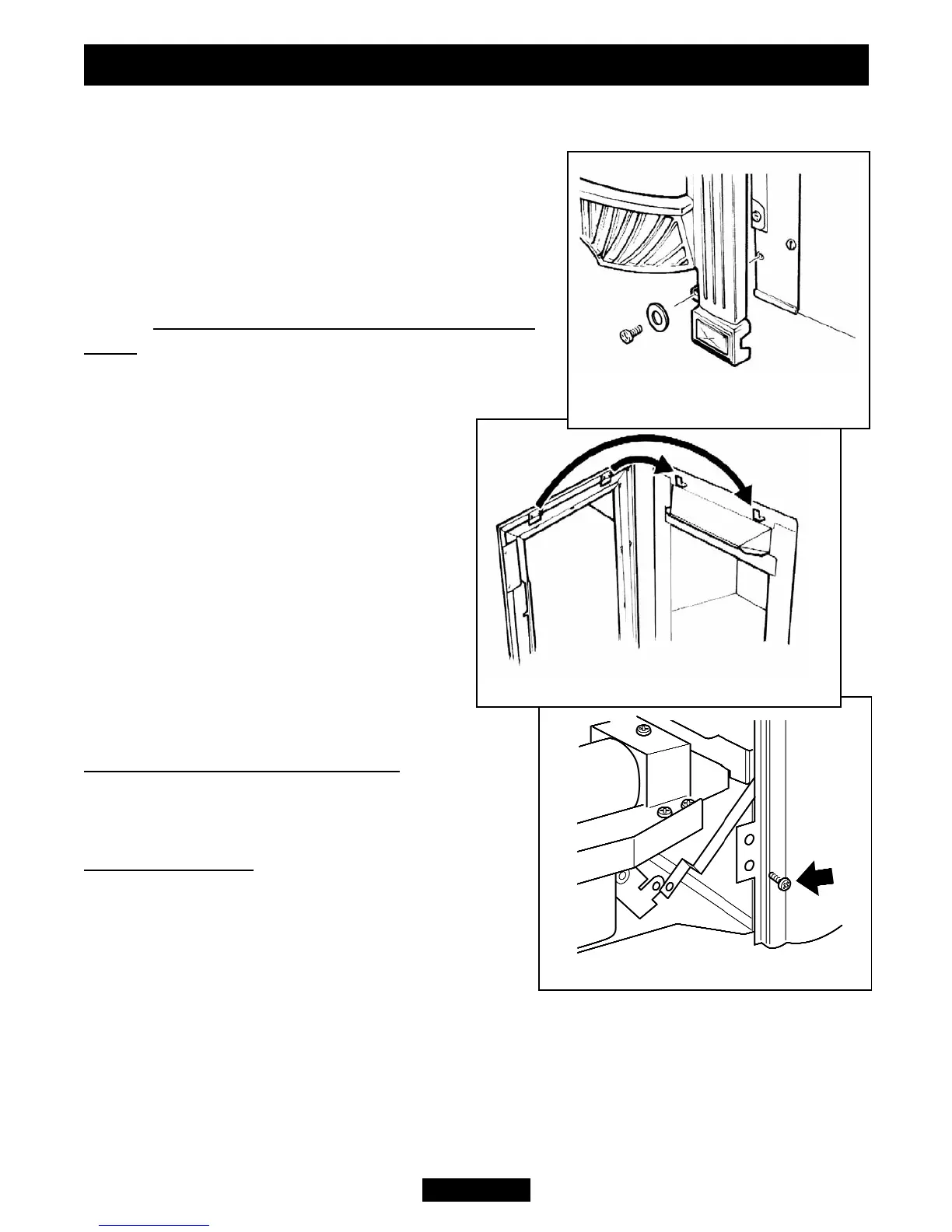

Figure 34. Fascia bottom location
Figure 33. Fascia top location
Figure 32. Adorn fascia bottom
fixing.
