Page 36
ECS-3M
FAN 1 MOTOR
The Fan 1 motor compatibility setting adjusts
the ECS-3M outputs to the electrical
characteristics of the fan motor. Eight
choices are available. Choice 1 is suitable for
most fans. If your motor is not listed in the
compatibility table in the Appendix, try all
choices and take the one that offers the best
performance. Settings 2 - 8 are the optimized
settings for fan models listed in the
compatibility table. Using the compatibility
table, find the model number of your fan
motor and take note of the fan motor
compatibility number.
Setting the Fan 1 motor compatibility:
• rotate the Selector dial to position (12),
•
rapidly rotate the Adjuster dial back and forth
to enter secondary function mode,

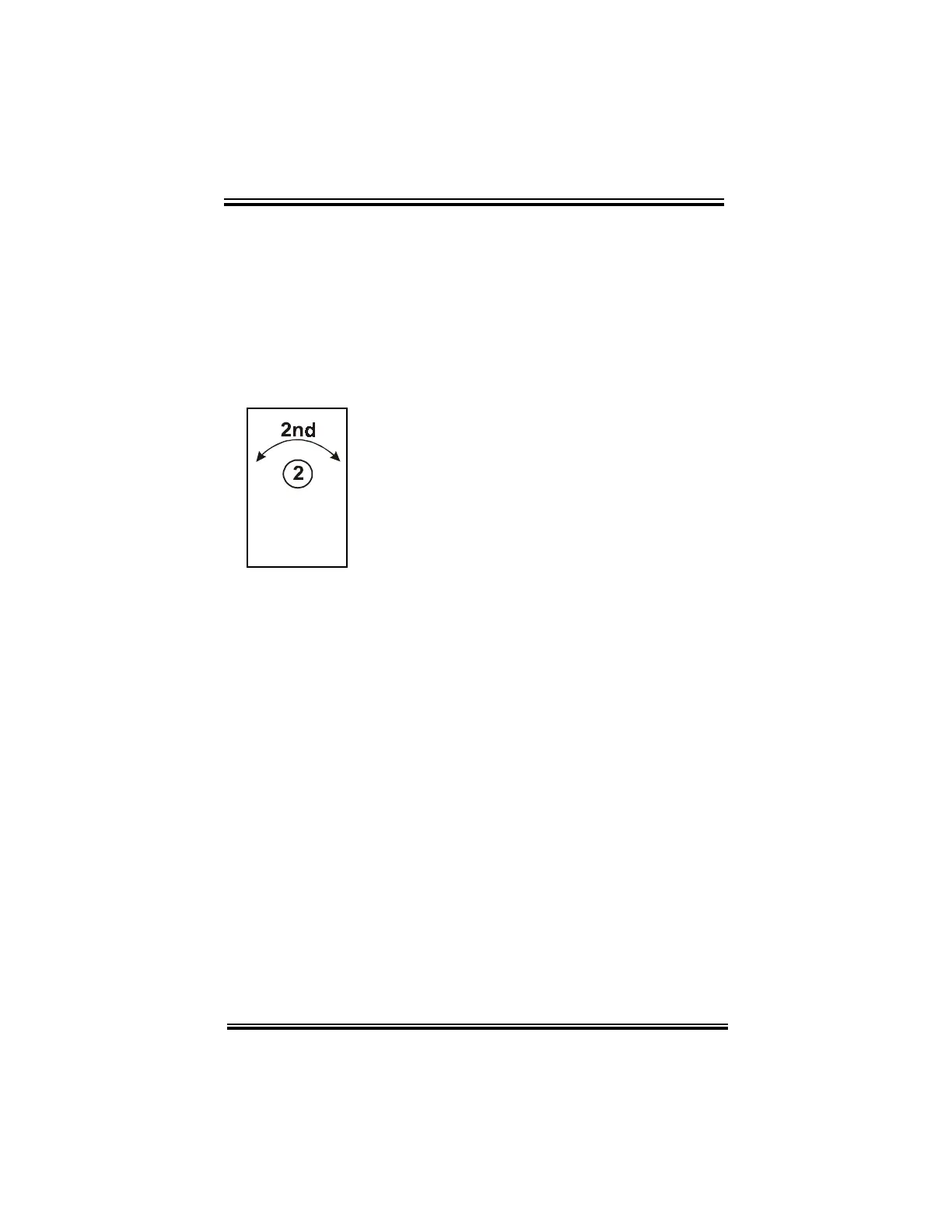

• rotate the Selector dial to position (2),
•
rotate the Adjuster dial to select a motor
curve.
The Fan 1 motor compatibility setting is
displayed on the ECS.
Motor
