FAN 2 MOTOR
The Fan 2 motor compatibility setting
adjusts the ECS-3M outputs to the
electrical characteristics of the fan motor.
Eight choices are available. Choice 1 is
suitable for most fans. If your fan is not
listed in the compatibility table in the
Appendix, try all choices and take the
one that gives the best performance.
Settings 2 - 8 are the optimized settings
for fan models listed in the compatibility
table. Using the compatibility table, find
the model number of your fan and take
note of the fan motor compatibility
number.

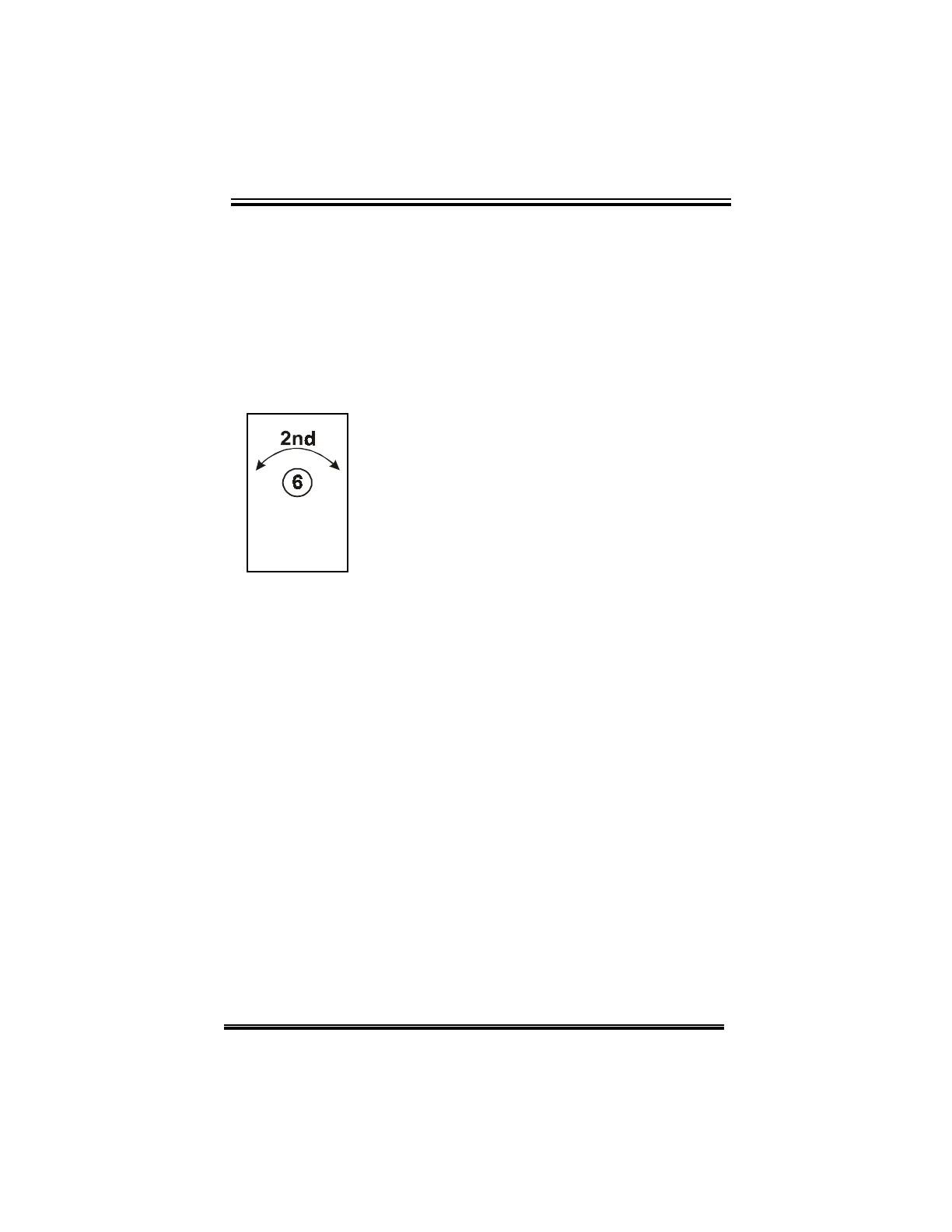

Setting the Fan 2 motor compatibility:
•
rotate the Selector dial to position (12),
•rapidly rotate the Adjuster dial back and
forth to enter secondary function mode,
•
rotate the Selector dial to position (6),
•
rotate the Adjuster dial to select a motor
curve.
The Fan 2 motor compatibility setting is
displayed on the ECS.
Motor
