VAT 613 Series - Interface RS232;485

INSTALLATION
Series 613
40/149 Edition 12.08.2022 984360EC
5.12 Interface RS232/485
This is an asynchronous serial communication method. The term serial means that the information is sent
bit by bit. Asynchronous means that the information is not sent at previously agreed times. The sending of
data can start at any arbitrary moment and it is part of the recipient's task to discover when a message
starts and ends.
5.12.1 Operation Mode RS232/ RS485
Location: CPA\Parameters: Interface RS232/RS485.Settings
Parameter Description
Operation Mode
RS232
2-Wire
Point-to-point
Pin RXD and TXD
RS485
4-Wire (Full Duplex) or 2-Wire (Half Duplex)
Point-to-point, multiple-devices
Pin A,B,X,Y
Service Interface Over RS232 CPA communication via RS232, Pin RXD and TXD
5.12.2 RS232

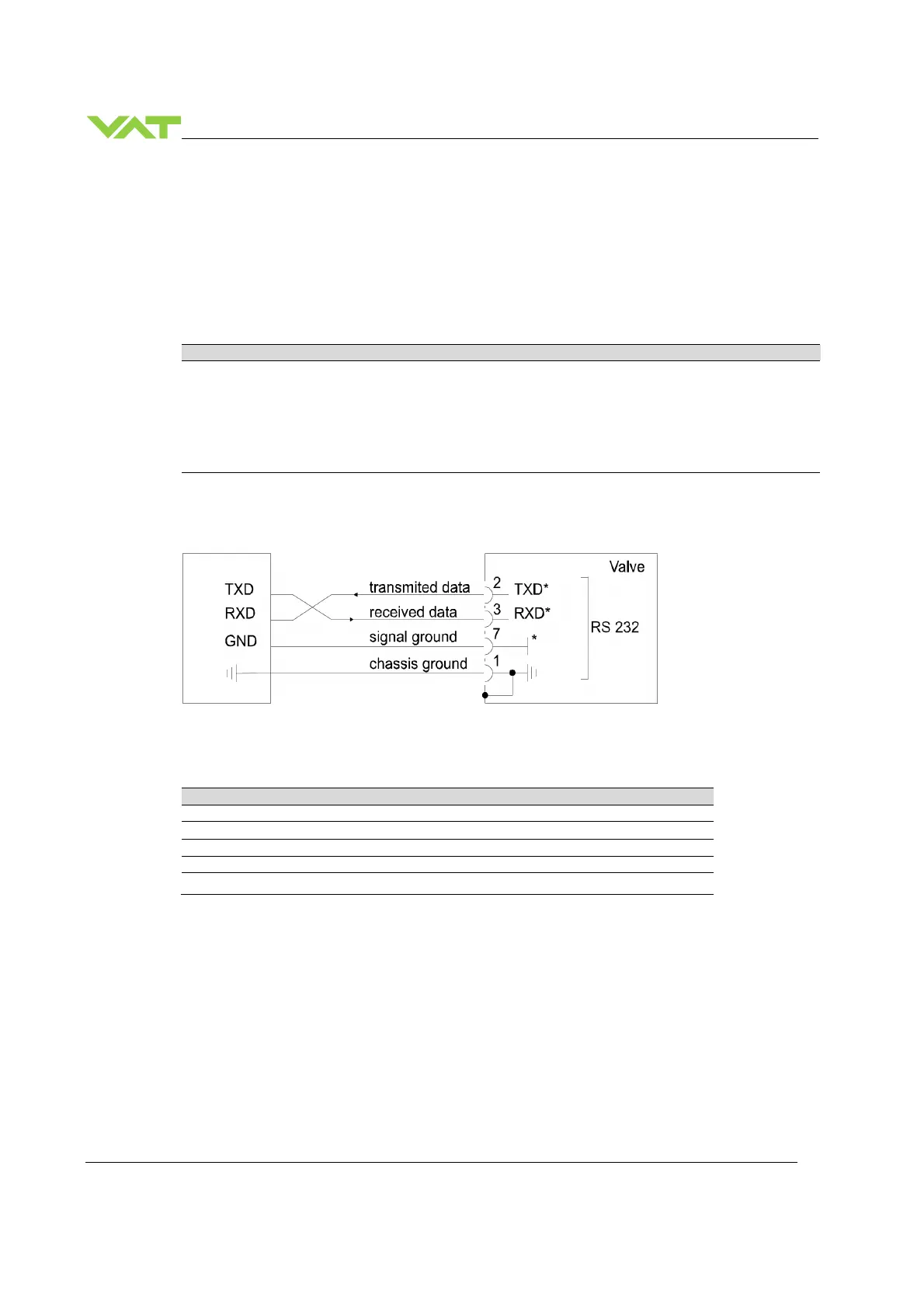

5.12.2.1 Connection
*Isolated from other circuits
5.12.2.2 Configuration
The port settings of the valve must be identical to the settings of the host control system.
Location: CPA\Parameters: Interface RS232/RS485.Settings
Parameter Description
Baud Rate
1200,2400,4800,9600,19200,38400,57600,
115200
Data Bit
Length
7,
8
Stop bit
1
,2
Parity Bit
None
, Even, Odd
Command Termination
CR+LF
, LF, CR
